Final Drive

Differential Side Gear Clearance:

Differential Side Gear Thrust Washer:

Bearing Preload:

Turning Torque:

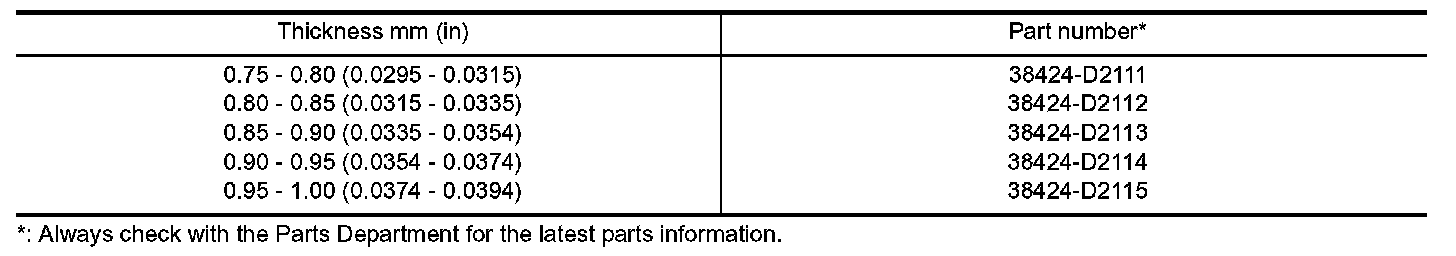

Differential Side Bearing Adjusting Shims:

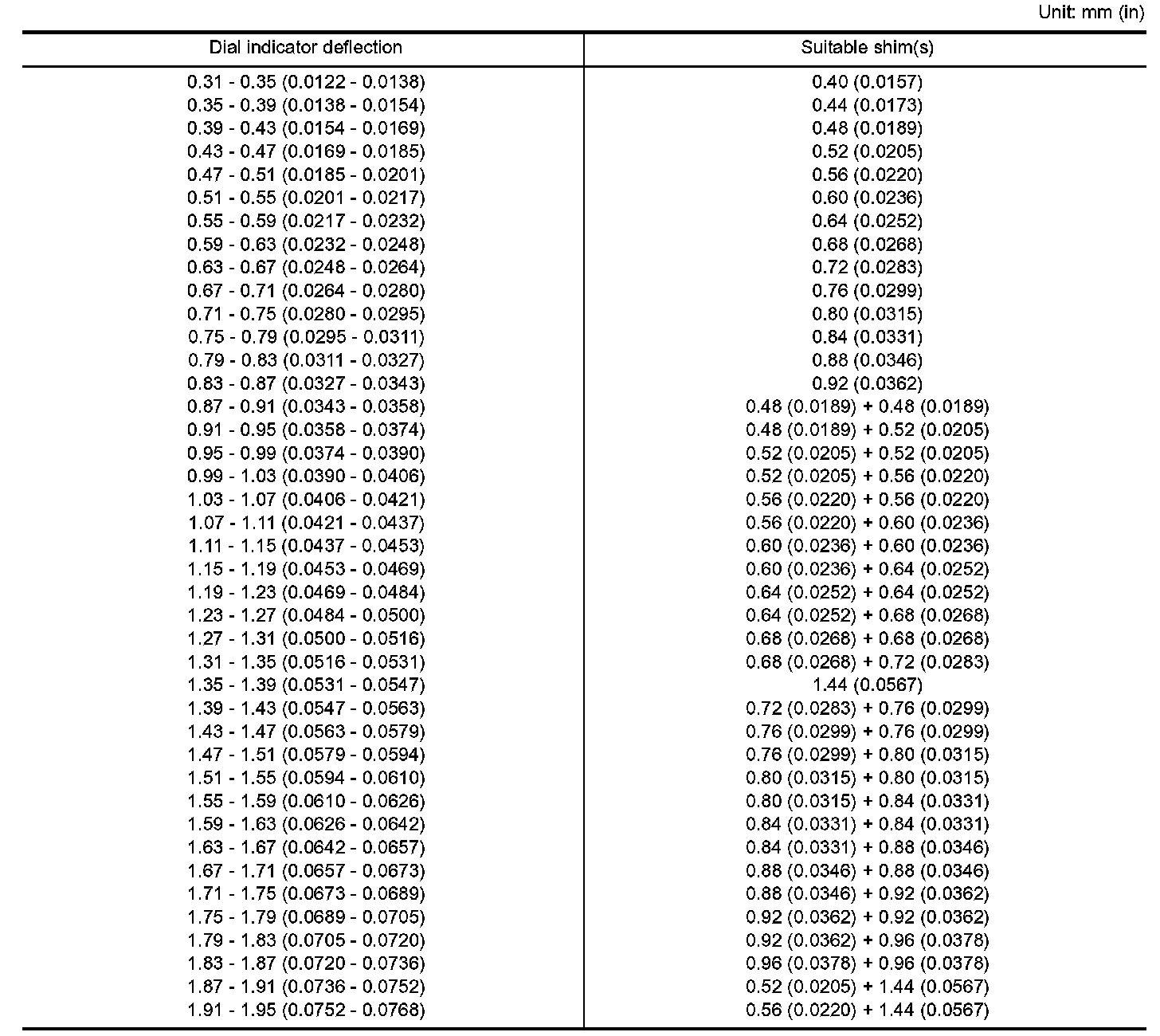

Table For Selecting Differential Side Bearing Adjusting Shim:
