Non-Trouble Code Procedures

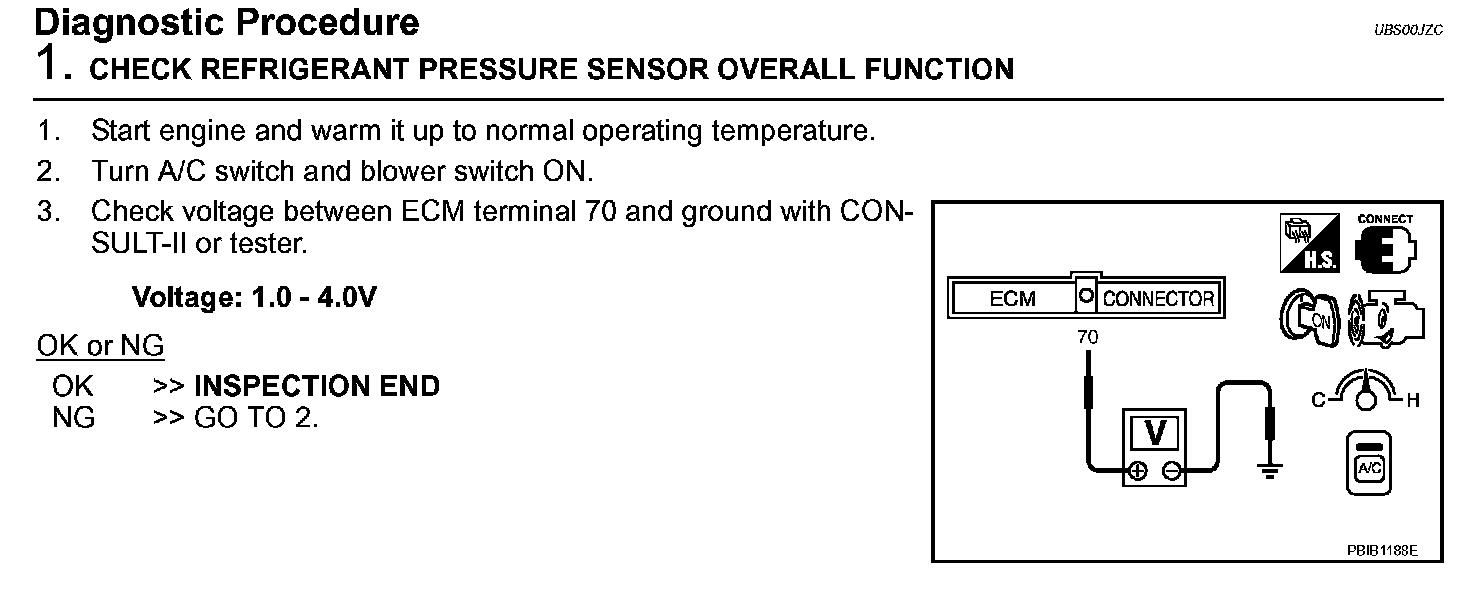

Diagnostic Procedure (Step 1):

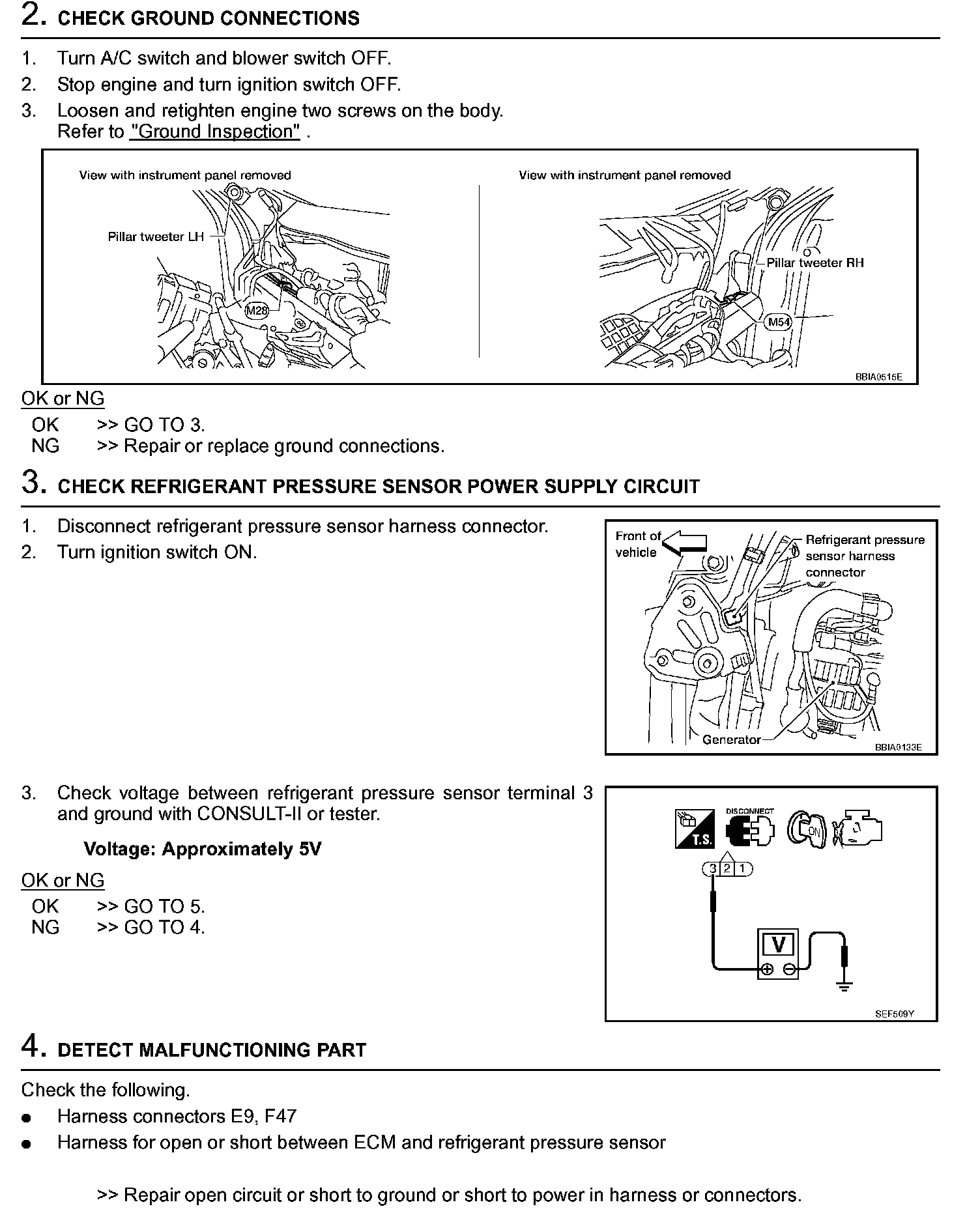

Diagnostic Procedure (Steps 2 - 4):

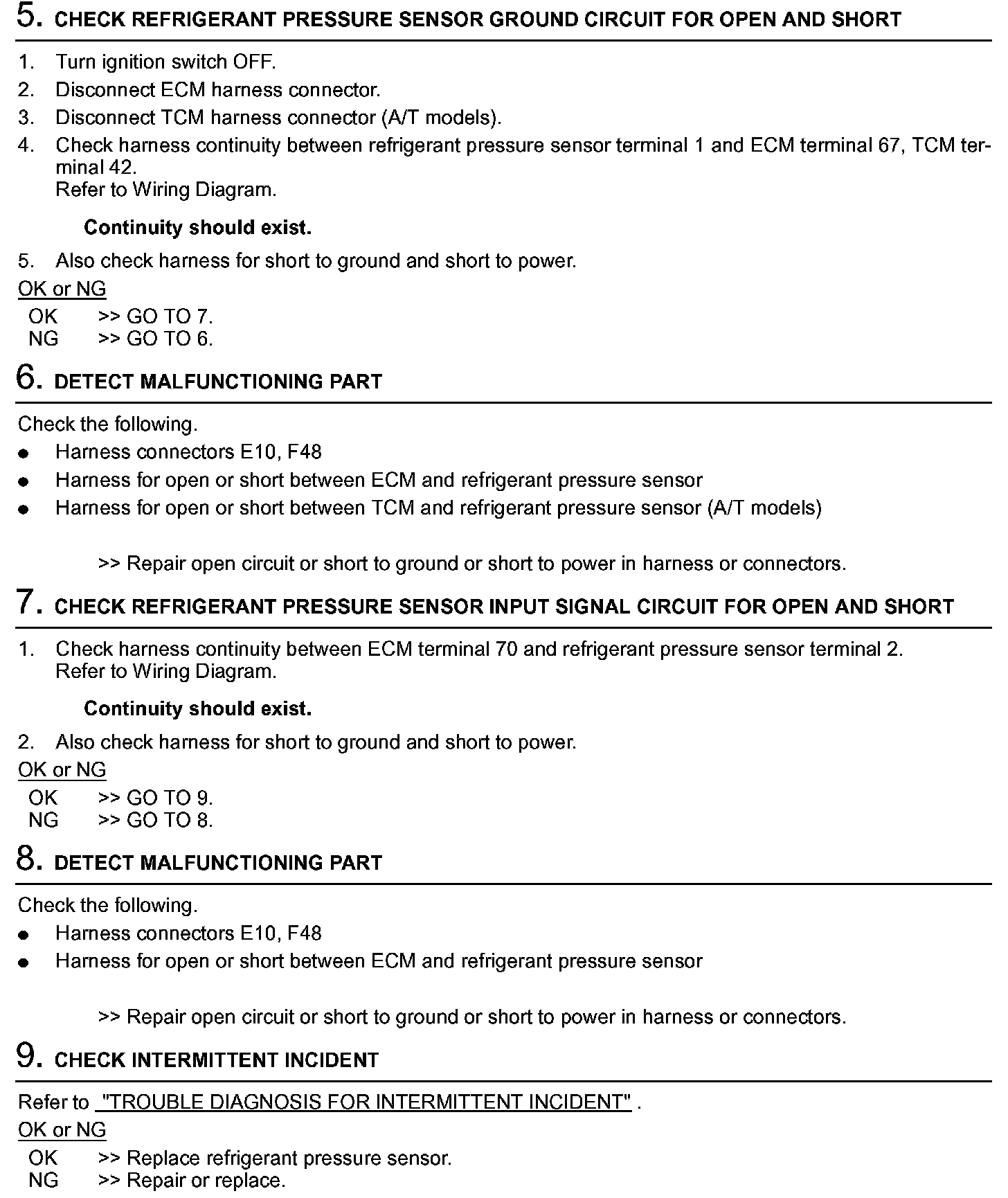

Diagnostic Procedure (Steps 5 - 9):
