Ignition Coil: Service and Repair

IGNITION COIL

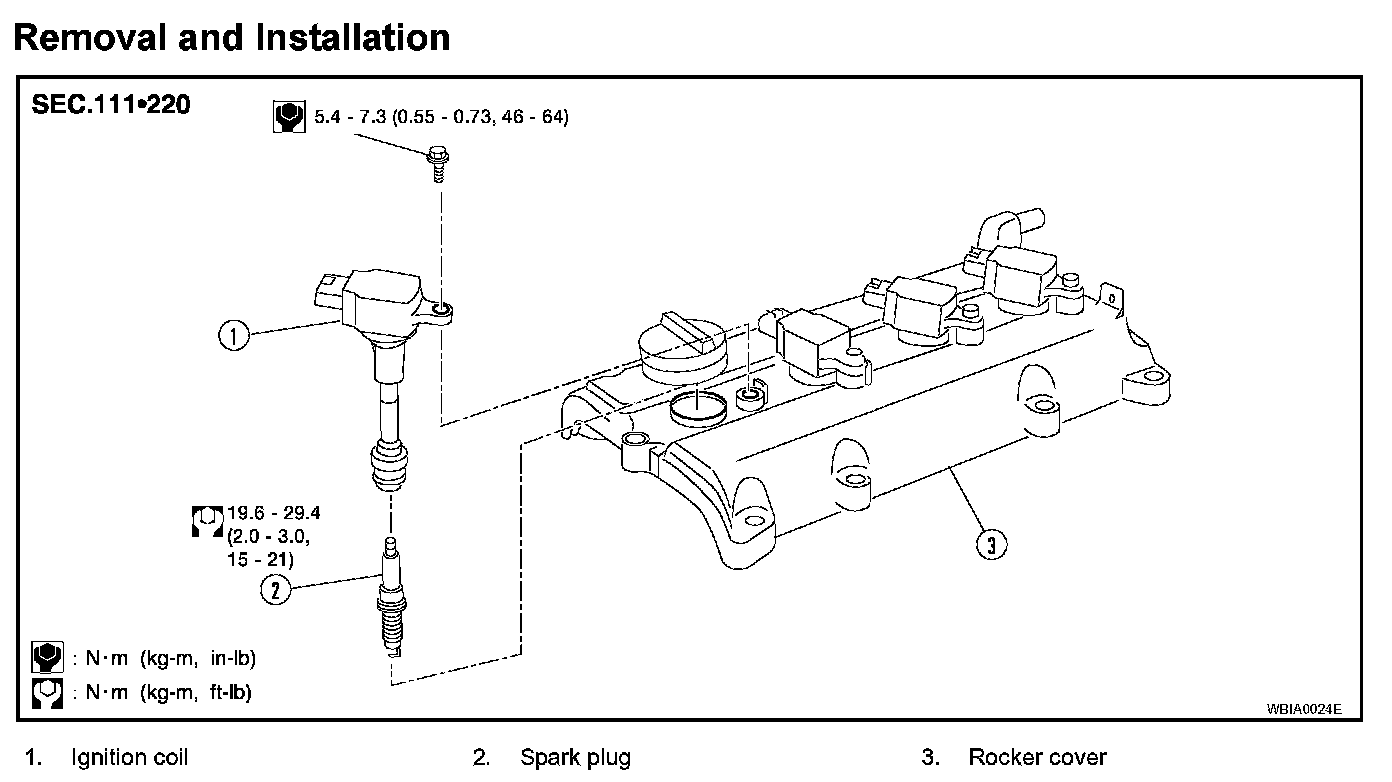

REMOVAL
1. Remove the engine cover using power tool.
2. Disconnect the harness connector from the ignition coil.
3. Remove the ignition coil.

CAUTION: Do not drop or shock it.

INSTALLATION
Installation is in the reverse order of removal.
