Shift Mechanism

Shift Mechanism

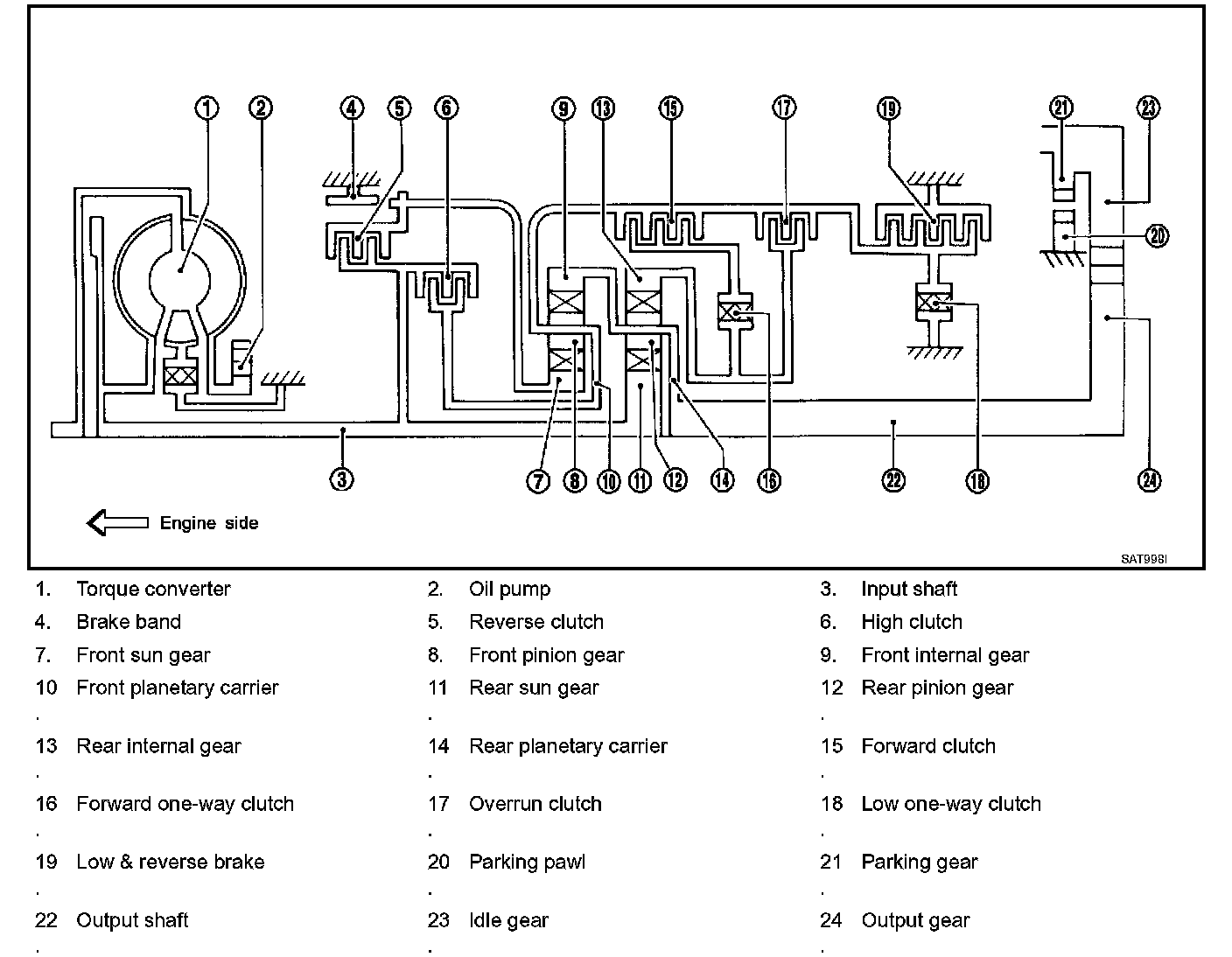

Construction:

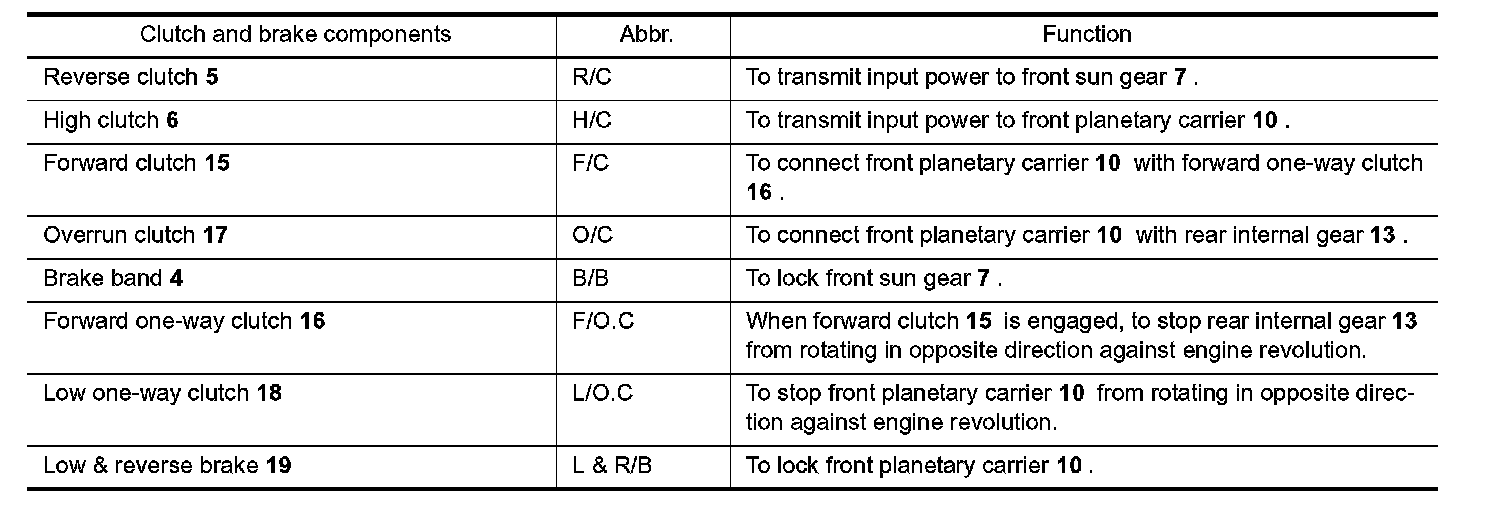

Function Of Clutch And Brake:

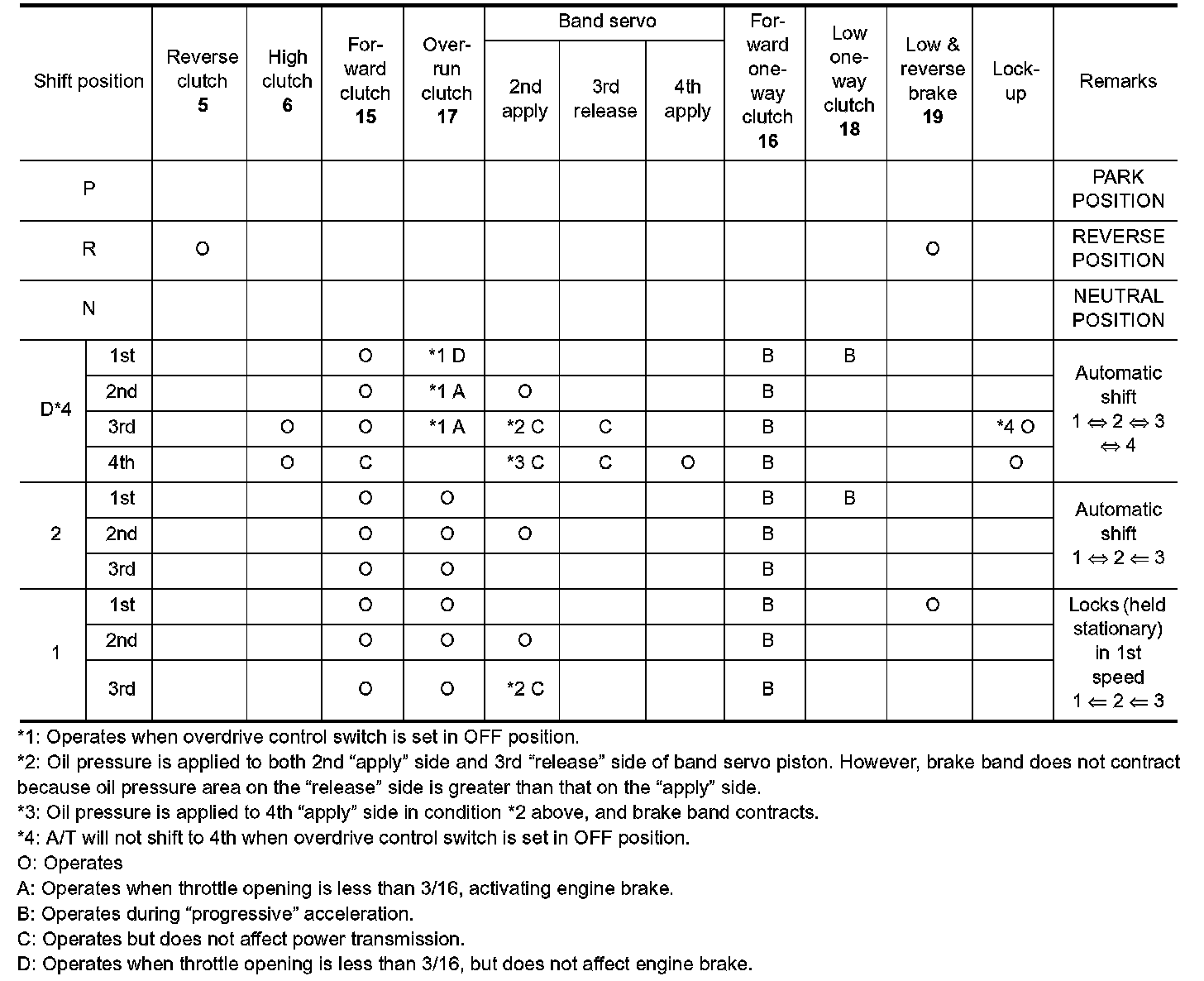

Clutch And Band Chart:

POWER TRANSMISSION

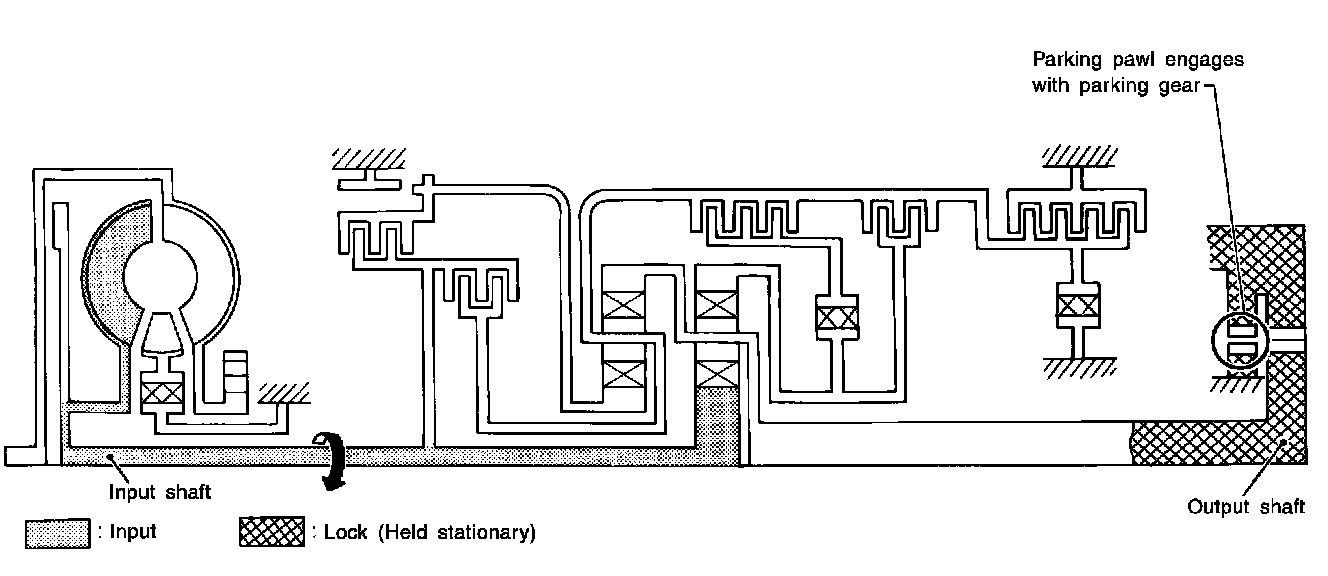

P and N Positions





^ P position
Similar to the N position, the clutches do not operate. The parking pawl engages with the parking gear to mechanically hold the output shaft so that the powertrain is locked.
^ N position
Power from the input shaft is not transmitted to the output shaft because the clutches do not operate.

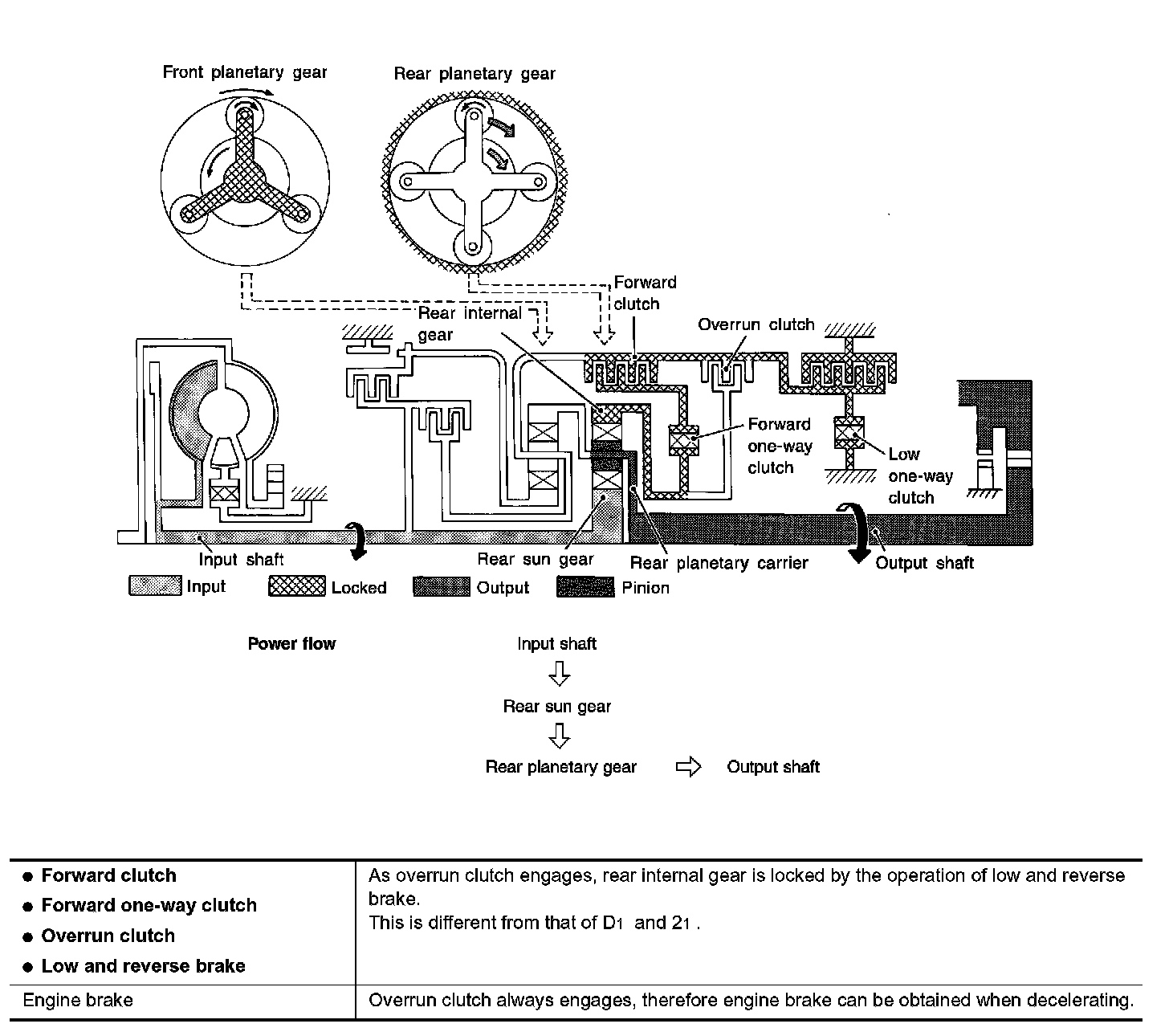

11 Position:

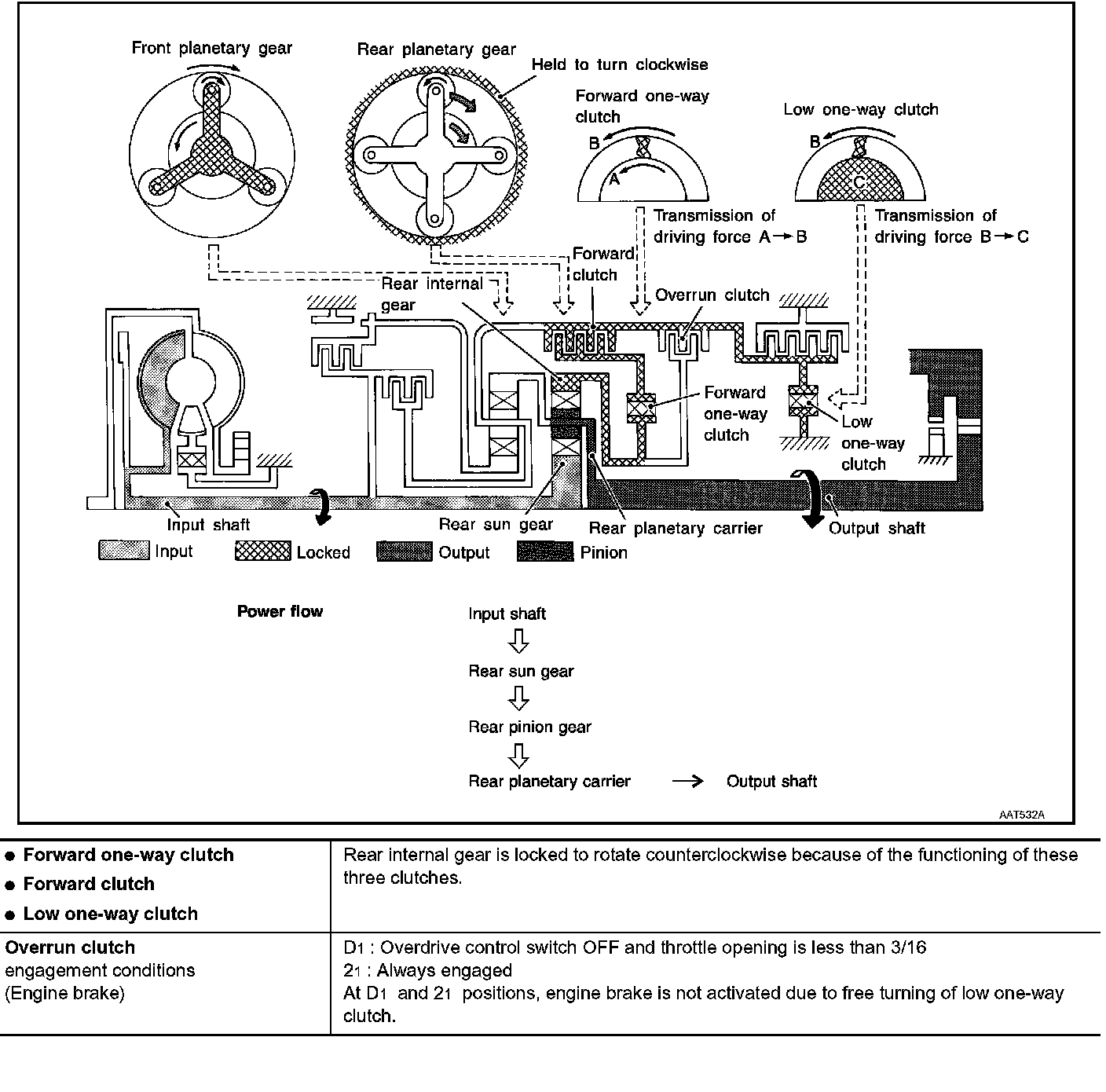

D1 and 21 Positions:

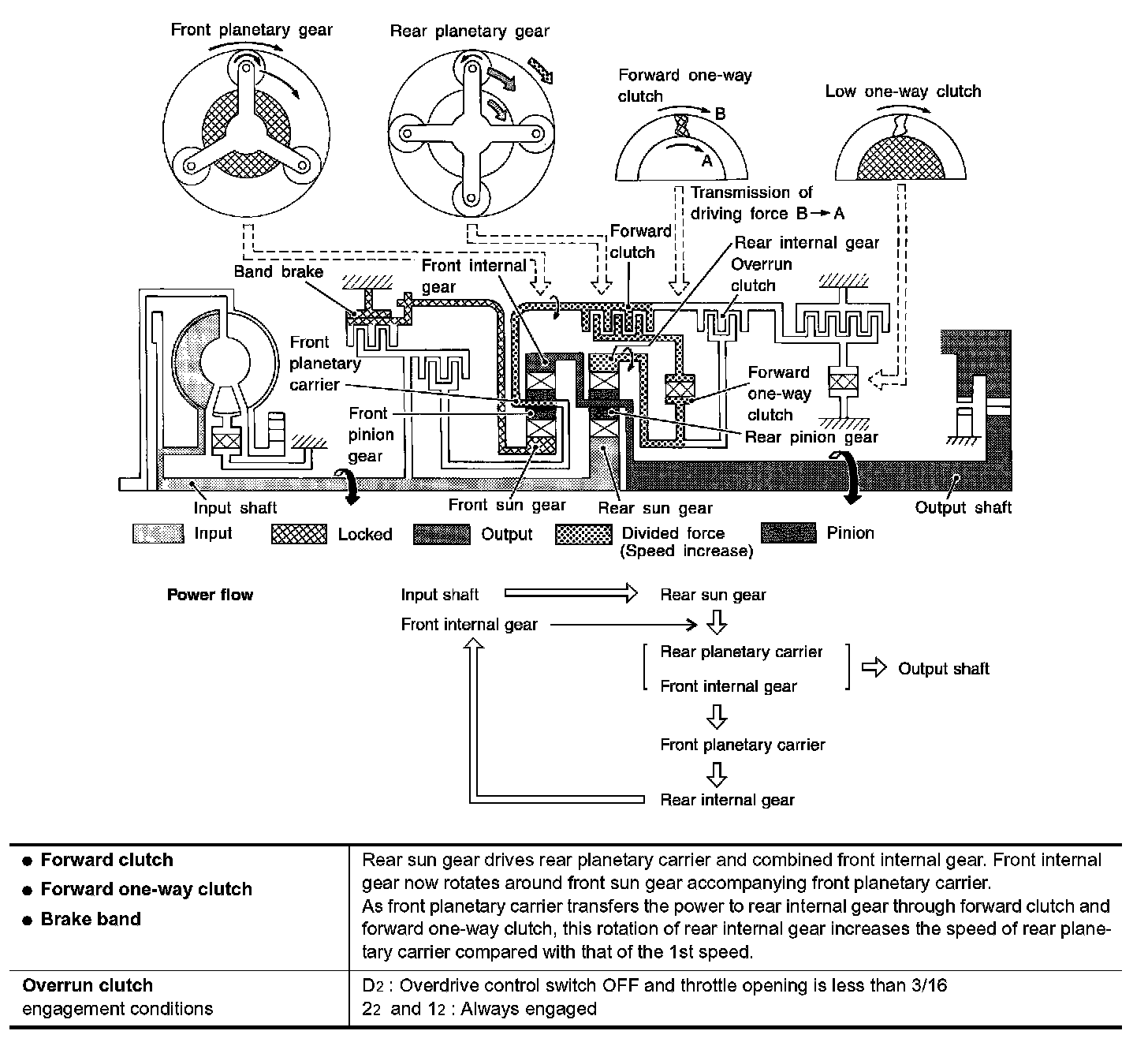

D2, 32, 22 and 12 Positions:

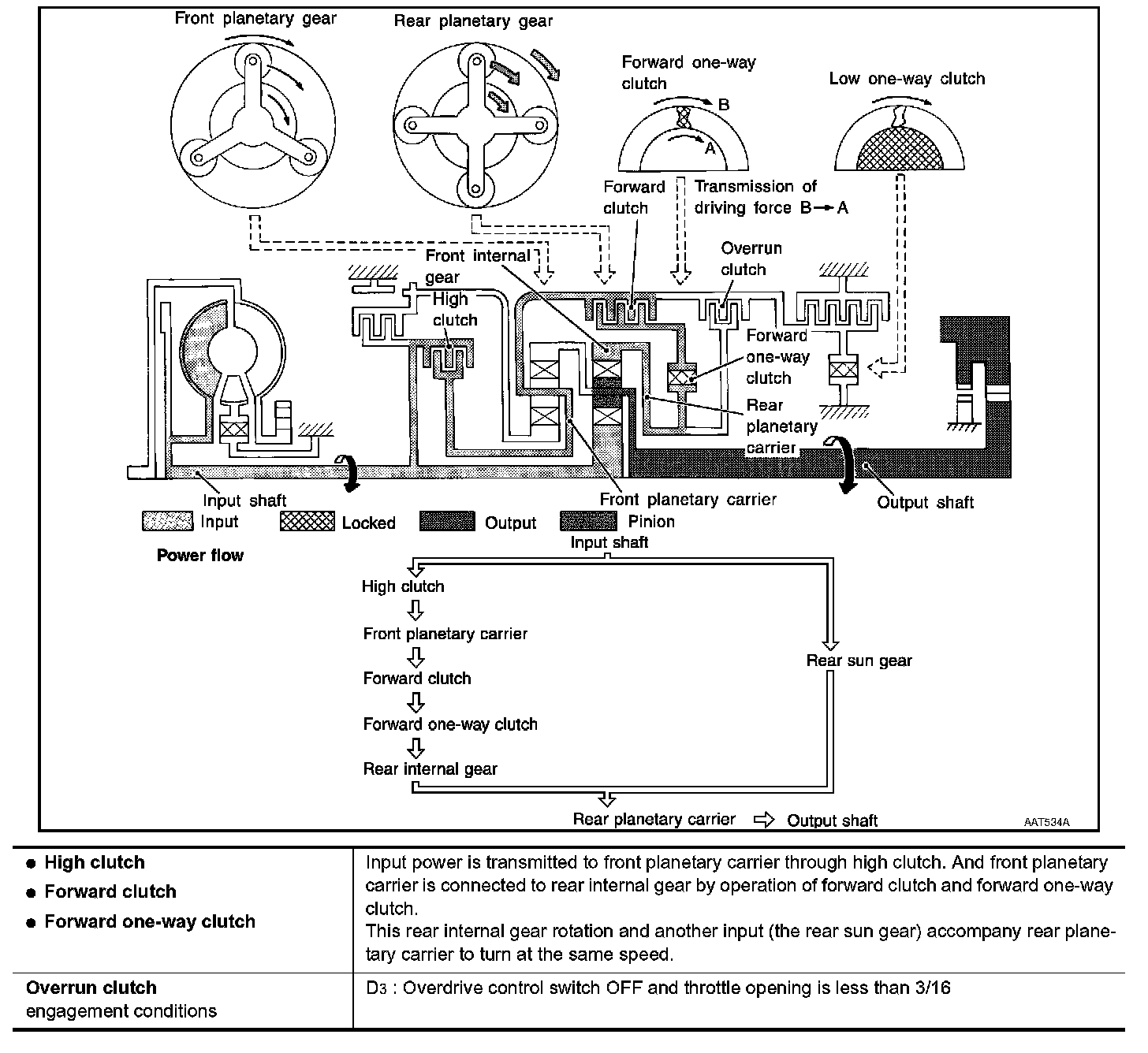

D3 and 33 Positions:

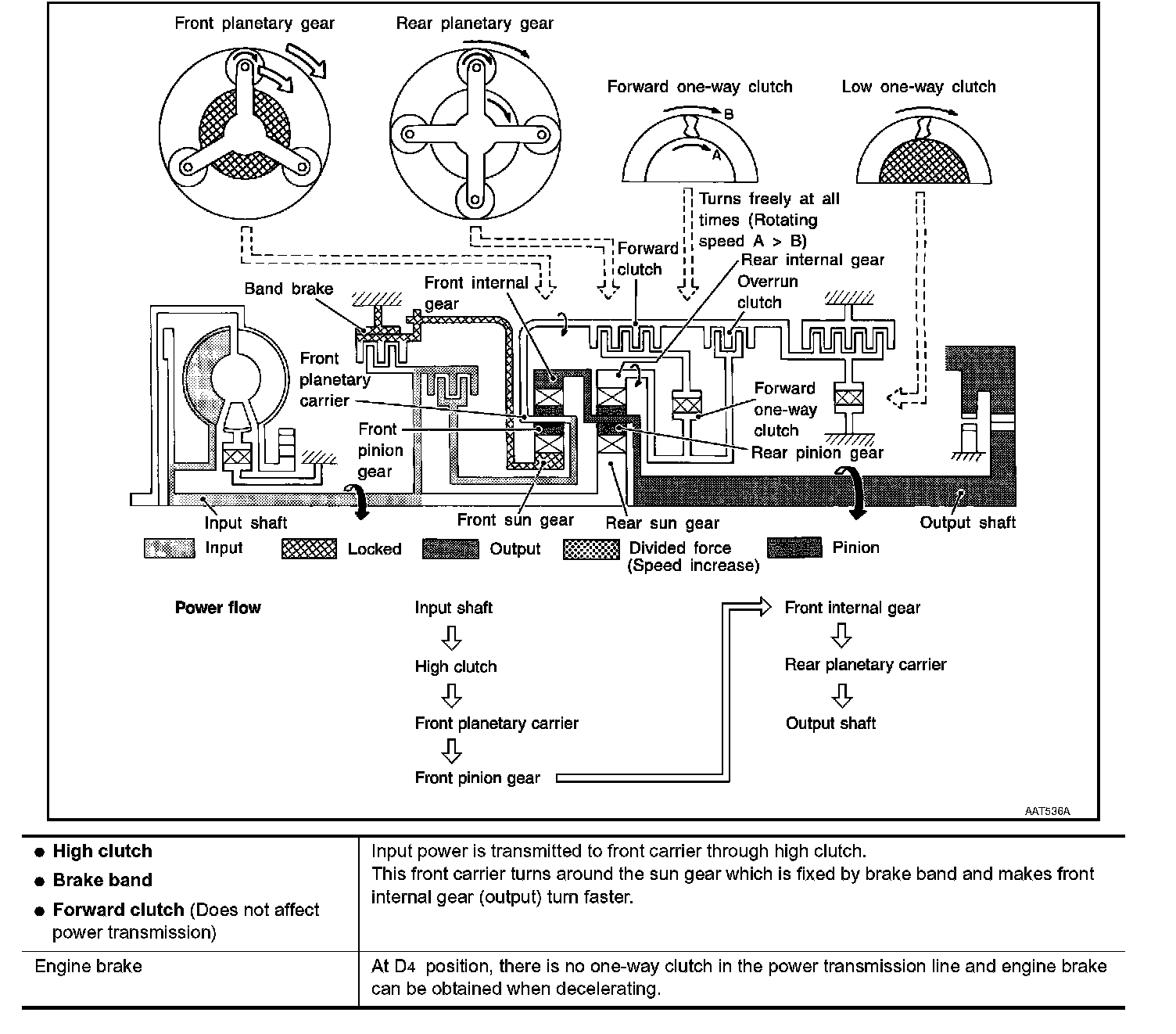

D4 (O/D) Position:

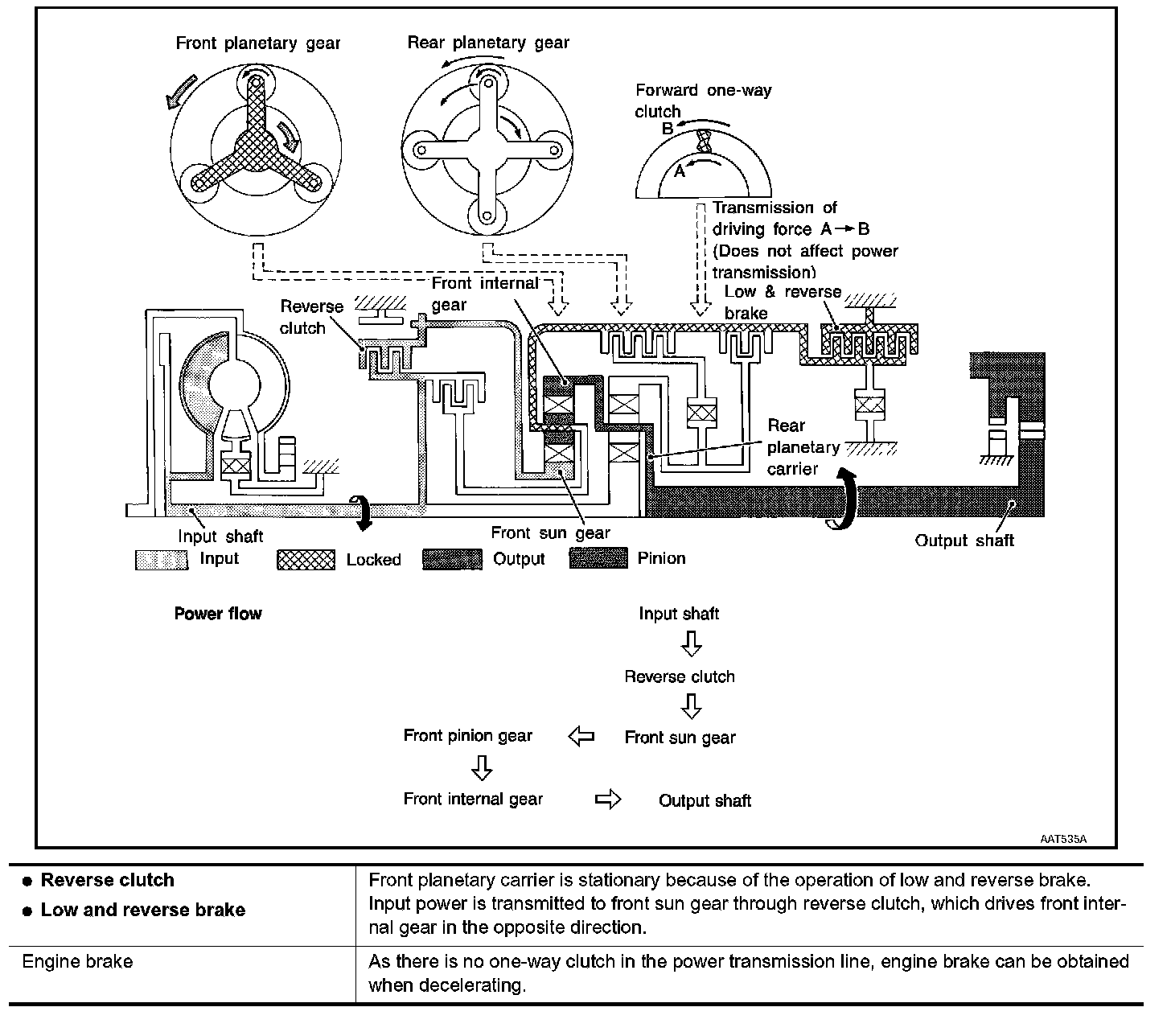

R Position:
