Camshaft, Engine
INSPECTION AFTER REMOVALCamshaft Runout

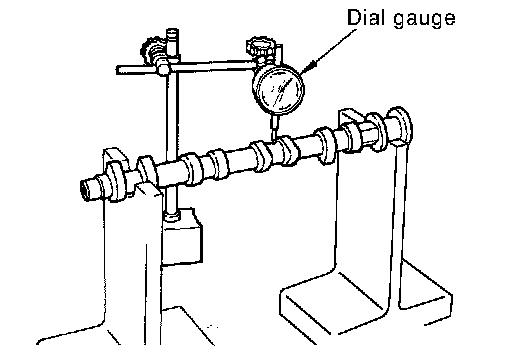

1. Put the camshaft on a V-block supporting the No.2 and No.5 journals.
2. Set the dial gauge vertically on the No.3 journal.
3. Turn camshaft in one direction by hand, and measure the camshaft runout on the dial gauge total indicator reading.
Standard: Less than 0.04 mm (0.0016 inch)
Camshaft Cam Height

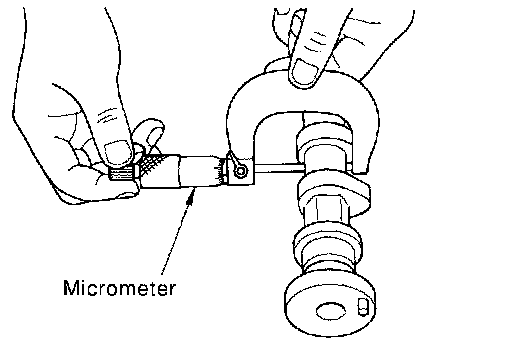

1. Measure the camshaft cam height.
Standard intake cam height: 45.665 - 45.855 mm (1.7978 - 1.8053 inch)
Standard exhaust cam height: 43.975 - 44.165 mm (1.7313 - 1.7388 inch)
2. If wear is beyond the limit, replace the camshaft.
Camshaft Journal Clearance

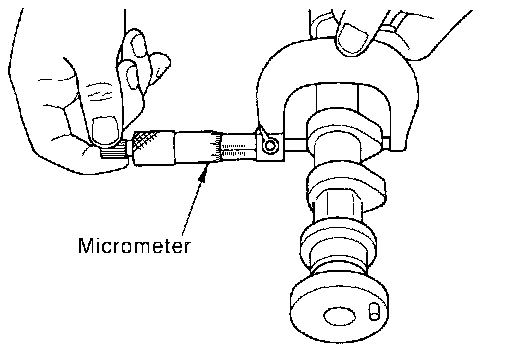

1. Measure the outer diameter of the camshaft journal.
Standard No.1 outer diameter: 27.935 - 27.955 mm (1.0998 - 1.1006 inch)
Standard No.2, 3, 4, 5, outer diameter: 23.435 - 23.455 mm (0.9226 - 0.9234 inch)

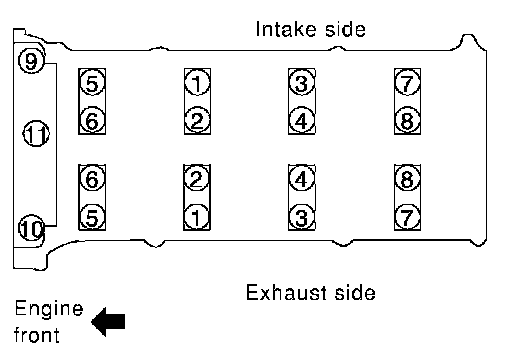

2. Tighten the camshaft bracket bolts to the specified torque following the tightening pattern as shown.

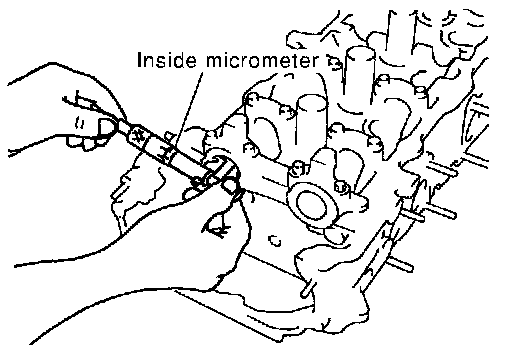

3. Using inside micrometer, measure inner diameter of camshaft bracket.
Standard
No.1: 28.000 - 28.021 mm (1.1024 - 1.1032 inch)
Standard No.2, 3, 4, 5: 23.500 - 23.521 mm (0.9252 - 0.9260 inch)
4. Calculate camshaft journal clearance.
^ (Journal clearance) = (inner diameter of camshaft bracket) - (outer diameter of camshaft journal)
Standard: 0.045 - 0.086 mm (0.0018 - 0.0034 inch)
^ When out of the specified range above, replace either or both the camshaft and the cylinder head assembly.
NOTE: Inner diameter of the camshaft bracket is manufactured together with the cylinder head. If the camshaft bracket is out of specification, replace the entire cylinder head assembly.
Camshaft End Play

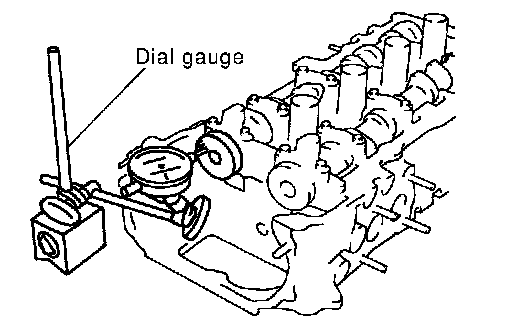

1. Install a dial gauge in the thrust direction on the front end of the camshaft. Measure the end play with the dial gauge while moving the camshaft forward and backward (in direction to axis).
Standard end play: 0.115 - 0.188 mm (0.0045 - 0.0074 inch)
2. If out of the specified range, replace with new camshaft and measure again.
3. If out of the specified range again, replace with new cylinder head assembly.

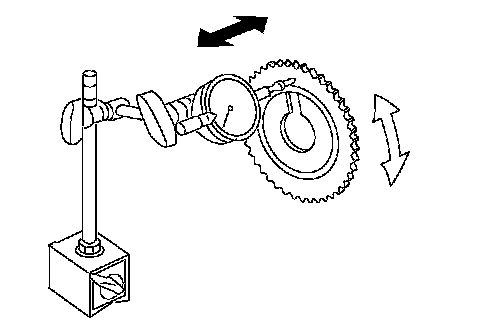

Camshaft Sprocket Runout
1. Install the camshaft in the cylinder head.
2. Install the camshaft sprocket on the camshaft.
3. Measure camshaft sprocket runout while turning the camshaft by hand.
Runout: Less than 0.15 mm (0.0059 inch)
4. If it exceeds the specification, replace camshaft sprocket.
Valve Lifter

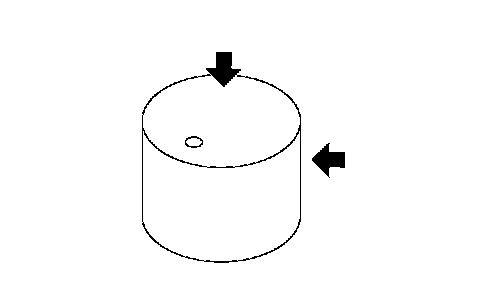

Check if the surface of the valve lifter has any excessive wear or cracks, replace as necessary.
Valve Lifter Clearance
Outer Diameter of Valve Lifter

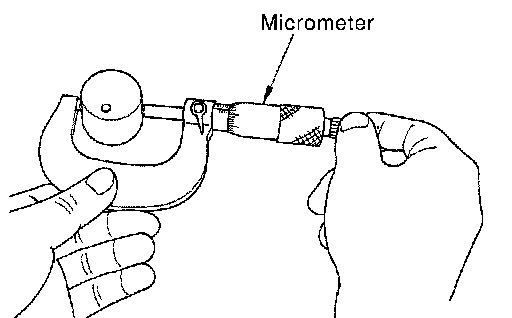

^ Measure the valve lifter outer diameter.
Valve lifter outer diameter: 33.965 - 33.980 mm (1.3372 - 1.3378 inch)
^ If out of the specified range, replace the valve lifter.
Valve Lifter Hole Diameter

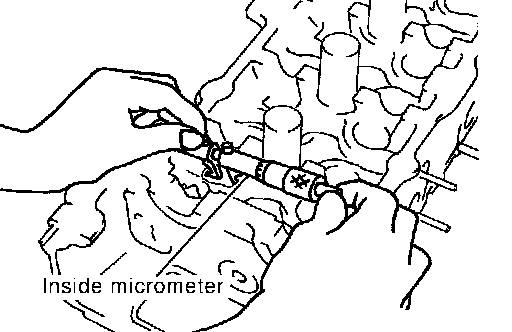

^ Using inside micrometer, measure valve lifter guide bore diameter of cylinder head.
Standard: 34.000 - 34.021 mm (1.3386 - 1.3394 inch)
^ If out of the specified range, replace the cylinder head assembly.
Calculation of Valve Lifter Clearance
^ (Valve lifter clearance) = (valve lifter bore diameter) - (valve lifter outer diameter)
Standard: 0.020 - 0.056 mm (0.0008 - 0.0022 inch)
^ If out of specified range, replace either or both valve lifter and cylinder head assembly.

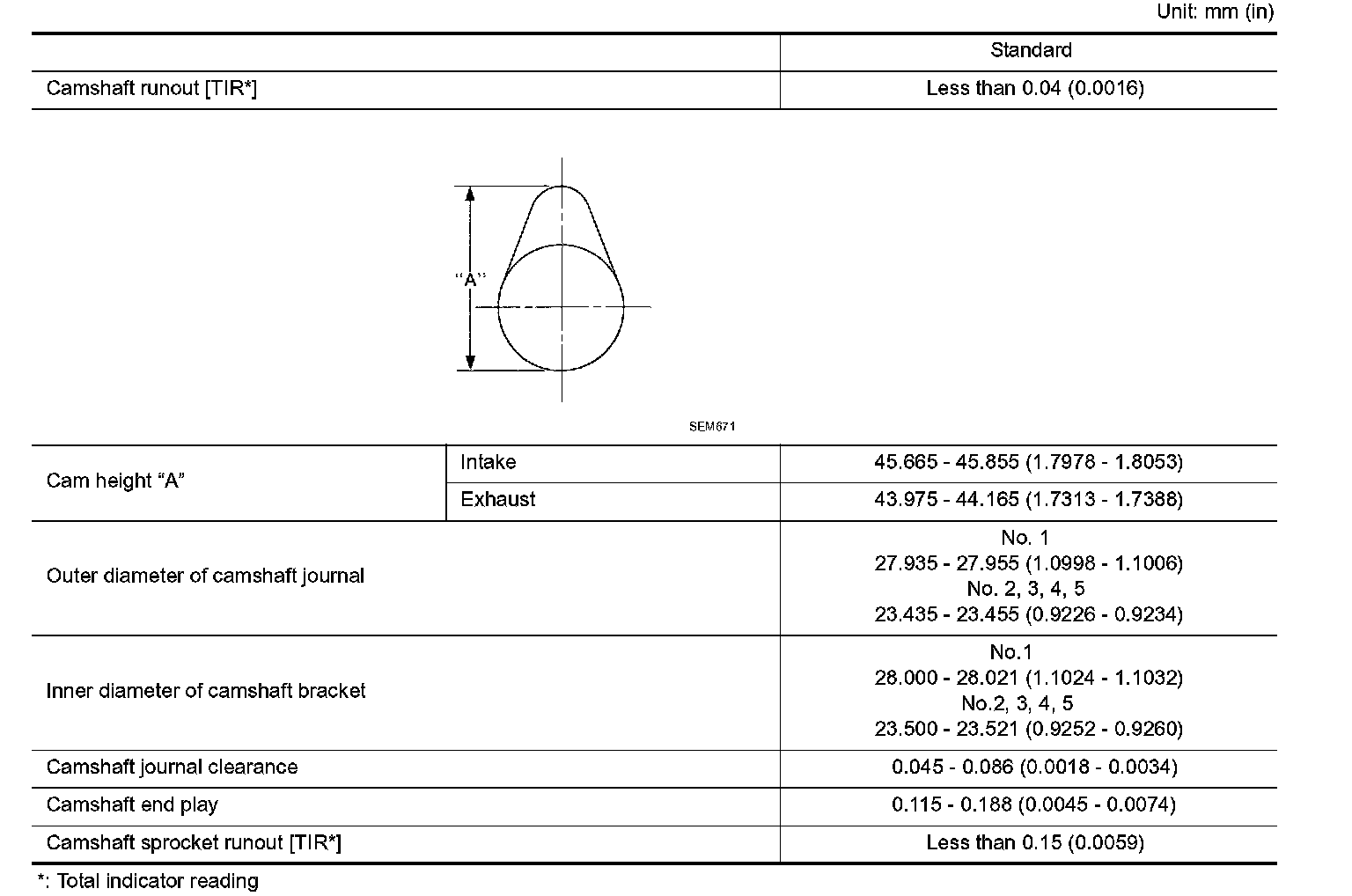

CAMSHAFT AND CAMSHAFT BEARING:
