Oil Pan, Engine

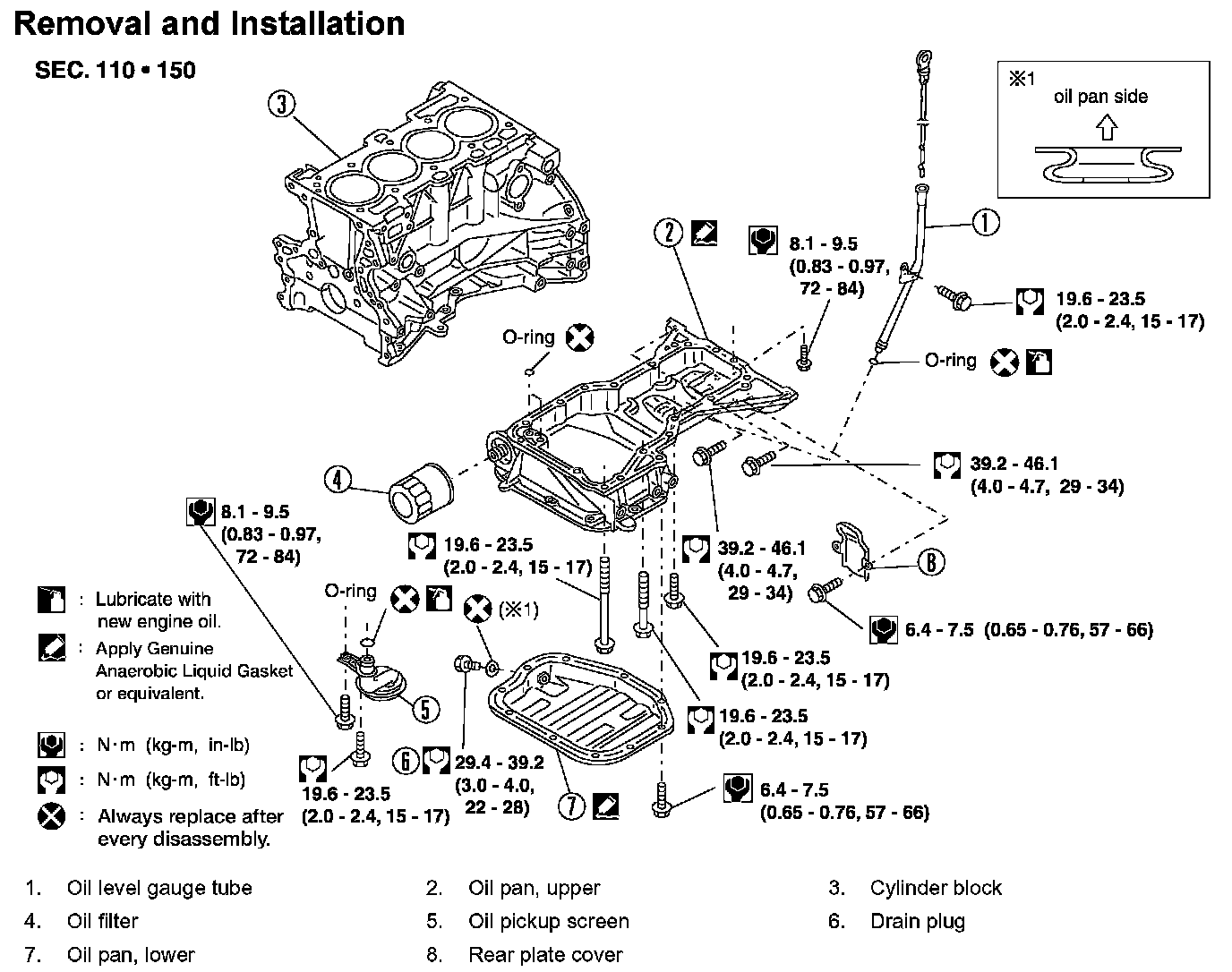

Oil Pan

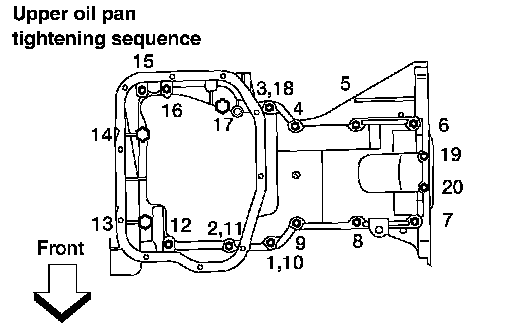

Tighten the upper oil pan bolts in the order as shown.
Bolt No. 10, 11, 18 indicate a double tightening in the sequence of bolt No.s 1, 2, 3.

NOTE:
Refer below for specified bolt sizes:
M6 � 20 mm (0.79 inch): No. 19, 20
M8 � 25 mm (0.98 inch): No. 1, 3, 4, 9
M8 x 45 mm (1.77 inch): No. 2, 5, 6, 7, 8, 17
M8 x 100 mm (3.97 inch): No. 12, 13, 14, 15, 16





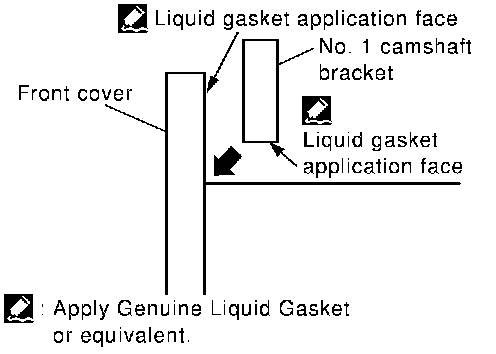

Apply Genuine Silicone RTV Sealant, or equivalent to the lower oil pan.

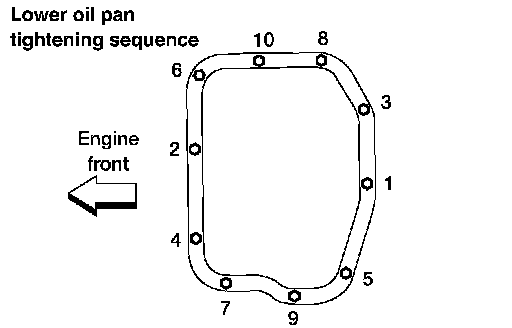

Tighten the lower oil pan bolts in the numerical order shown.
Wait at least 30 minutes after the oil pans are installed before filling the engine with oil.
