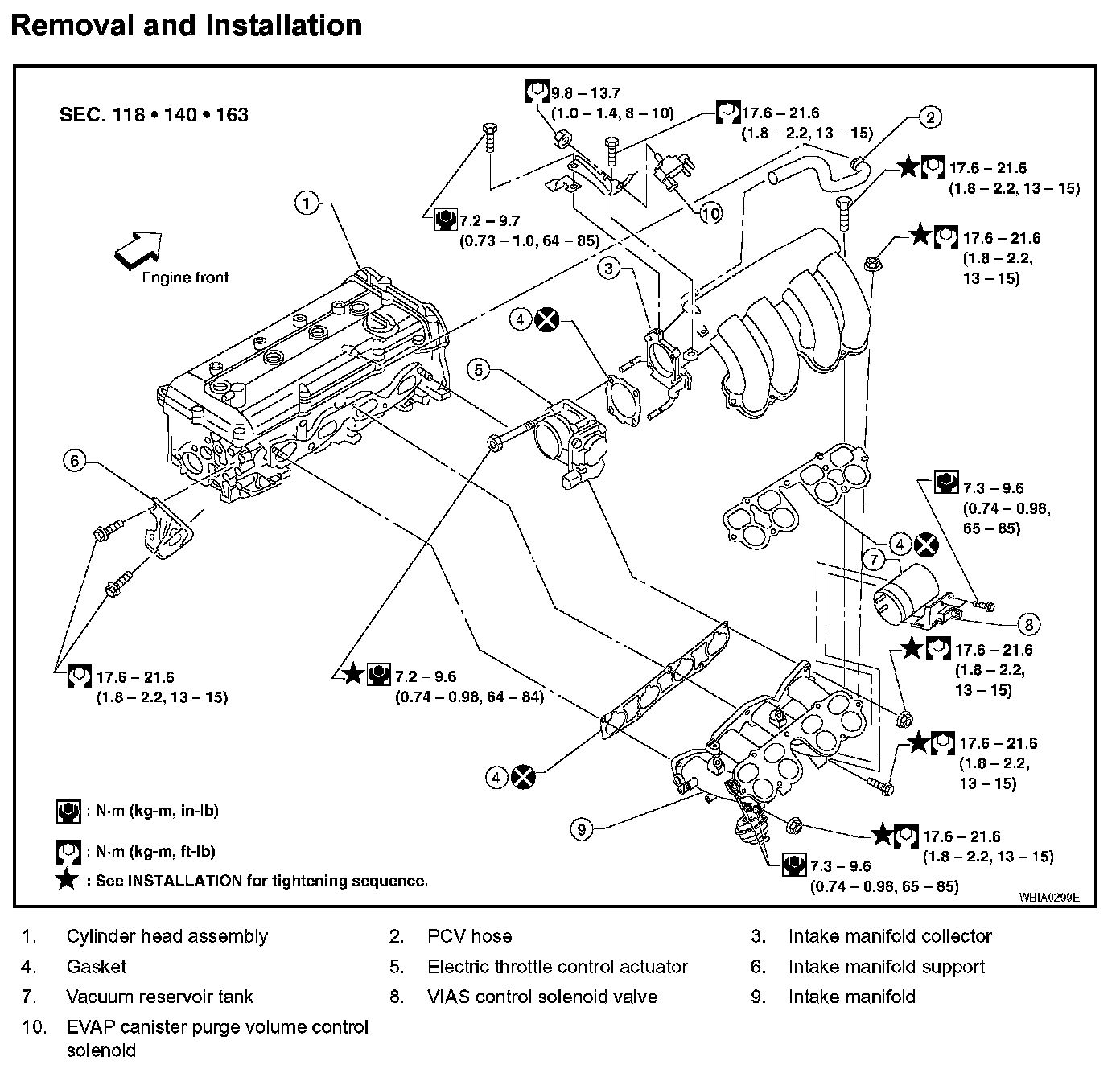

Intake Manifold

Intake Manifold

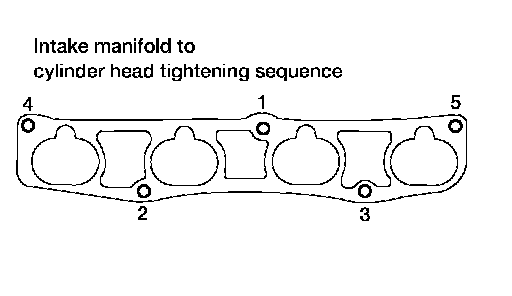

Tightening Intake Manifold Bolts and Nuts








^ Install the intake manifold bolts and nuts in the numerical order of the tightening sequence as shown.

CAUTION: After tightening No.5, retighten the No.1 mounting bolt to specification.

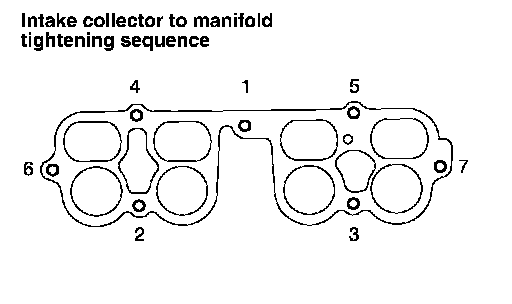

Tightening Intake Manifold Collector Bolts and Nuts





^ Tighten in numerical order as shown.

CAUTION: After tightening No.7, retighten the No.1 mounting bolt to specification.
