Mirror Sensor LH Circuit Check
Mirror Sensor LH Circuit Check

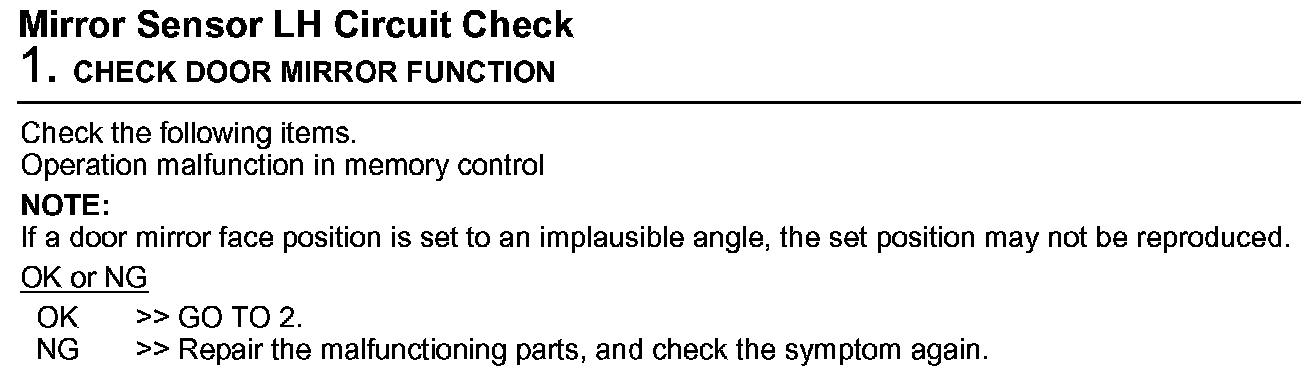

Mirror Sensor LH Circuit Check (Step 1):

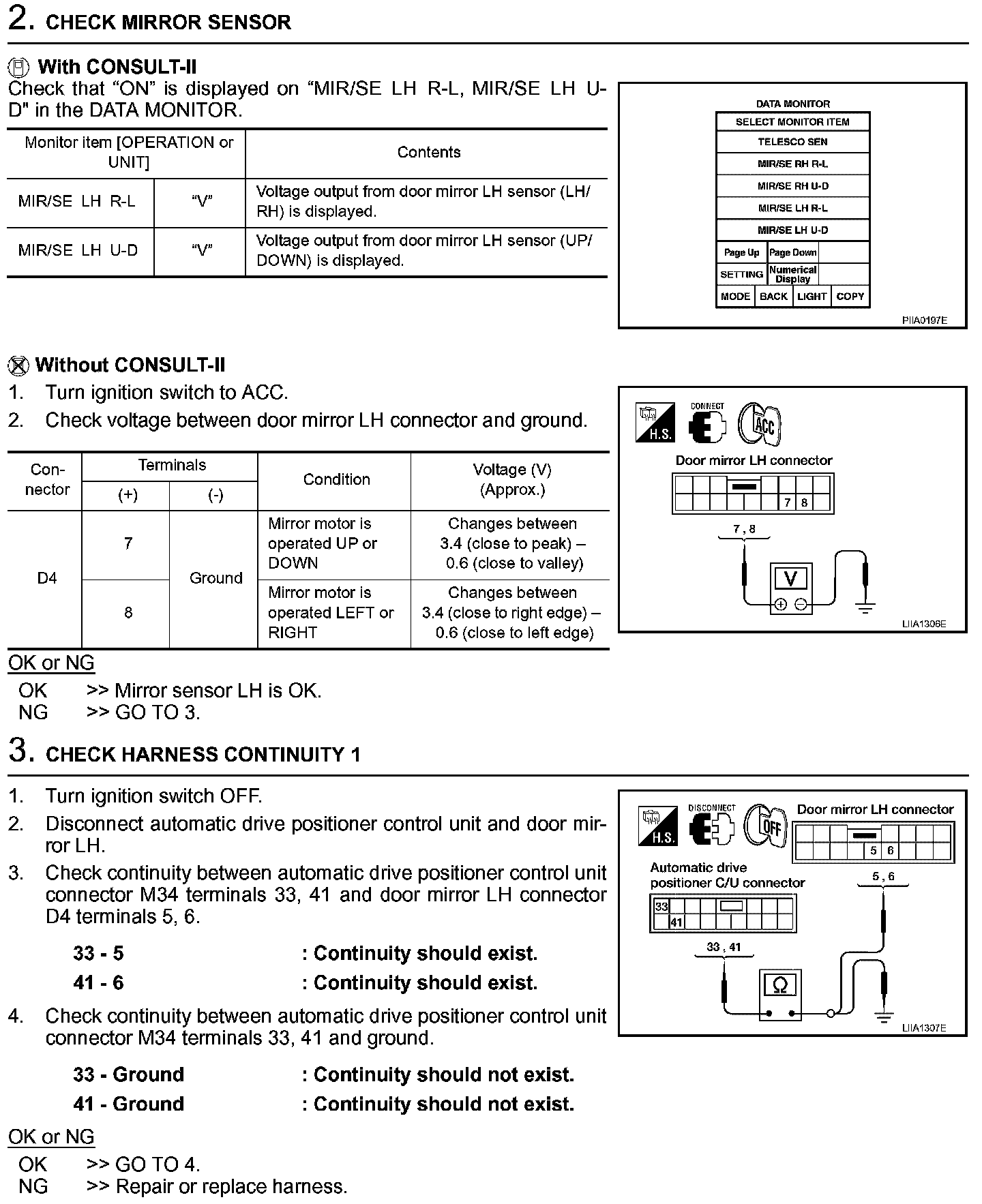

Mirror Sensor LH Circuit Check (Steps 2 - 3):

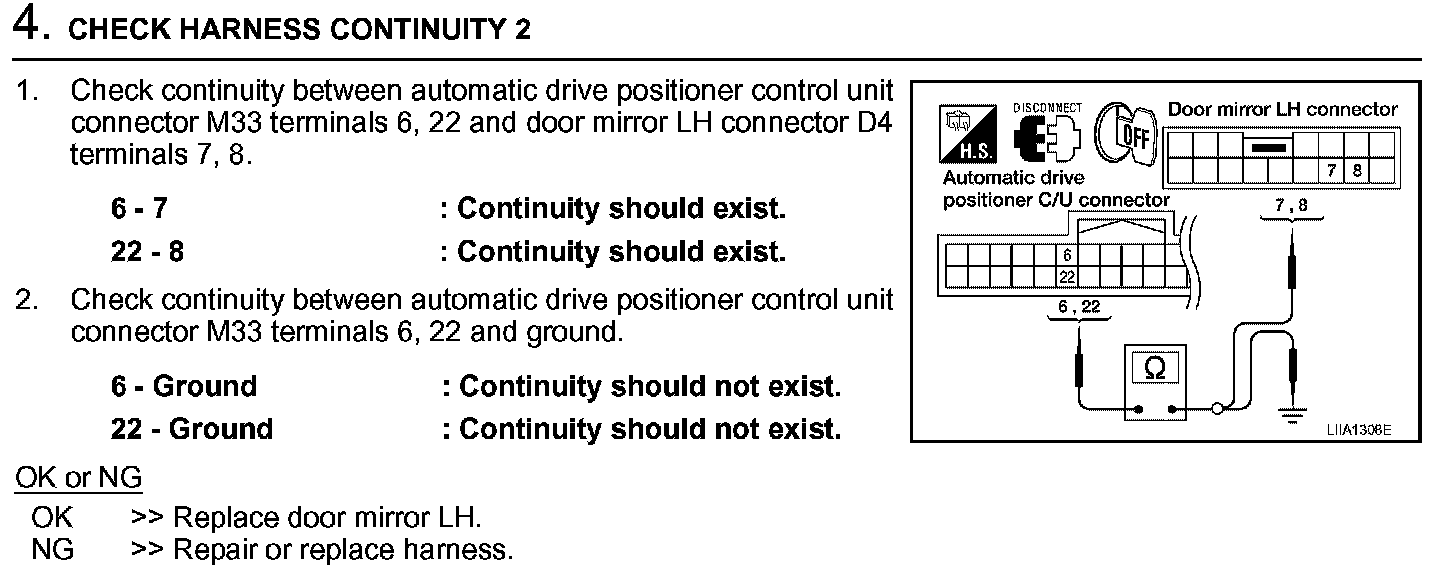

Mirror Sensor LH Circuit Check (Step 4):
