Removal and Installation
Removal and InstallationREMOVAL
1. Remove lower instrument panel.
2. On models with floor shift, remove center console.
3. Remove floor trim.

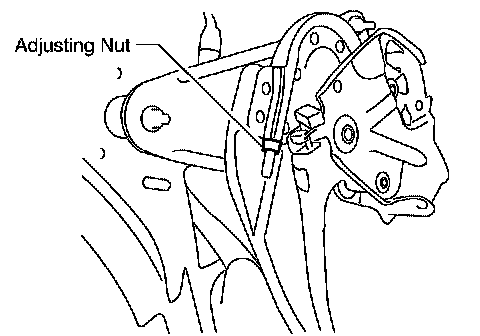

4. Remove adjusting nut.
5. Remove the lock plate from the front cable.
6. Remove front cable retaining bolts and nut.
7. Disconnect return spring from equalizer.
8. Disconnect right and left rear cables from equalizer.
9. Remove rear disc rotors.
10. Remove parking brake shoe, and remove rear cable from toggle lever.
11. Remove right and left rear cables retaining bolts and nuts, then remove right and left rear cables.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION: Do not reuse adjusting nut after removing it.
^ Adjust parking brake.
