DTC P0340, P0345 CMP SENSOR (PHASE)

Component Description







The camshaft position sensor (PHASE) senses the retraction of intake valve camshaft to identify a particular cylinder. The camshaft position sensor (PHASE) senses the piston position.

When the crankshaft position sensor (POS) system becomes inoperative, the camshaft position sensor (PHASE) provides various controls of engine parts instead, utilizing timing of cylinder identification signals.

The sensor consists of a permanent magnet and Hall IC.

When engine is running, the high and low parts of the teeth cause the gap with the sensor to change.

The changing gap causes the magnetic field near the sensor to change.

Due to the changing magnetic field, the voltage from the sensor changes.

ECM receives the signals as shown in the figure.




CONSULT-II Reference Value in Data Monitor Mode




On Board Diagnosis Logic

DTC Confirmation Procedure

NOTE: If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at least 10 seconds before conducting the next test.

TESTING CONDITION"
Before performing the following procedure, confirm that battery voltage is more than 10.5 V with ignition switch ON.

WITH CONSULT-II
1. Turn ignition switch ON.




2. Select "DATA MONITOR" mode with CONSULT-II.
3. Crank engine for at least 2 seconds and run it for at least 5 seconds at idle speed.
4. If 1st trip DTC is detected, go to "Diagnostic Procedure" below.
If 1st trip DTC is not detected, go to next step.
5. Maintaining engine speed at more than 800 rpm for at least 5 seconds.
6. If 1st trip DTC is detected, go to "Diagnostic Procedure" below.

WITH GST
Follow the procedure "WITH CONSULT-II".

EC-PHSB1-01:

EC-PHSB2-01:

Wiring Diagram

Diagnostic Procedure (Step 1):

Diagnostic Procedure (Steps 2 - 4):

Diagnostic Procedure (Steps 5 - 9):

Diagnostic Procedure (Step 10):

Diagnostic Procedure

Component Inspection

CAMSHAFT POSITION SENSOR (PHASE)
1. Loosen the fixing bolt of the sensor.
2. Disconnect camshaft position sensor (PHASE) harness connector.
3. Remove the sensor.




4. Visually check the sensor for chipping.

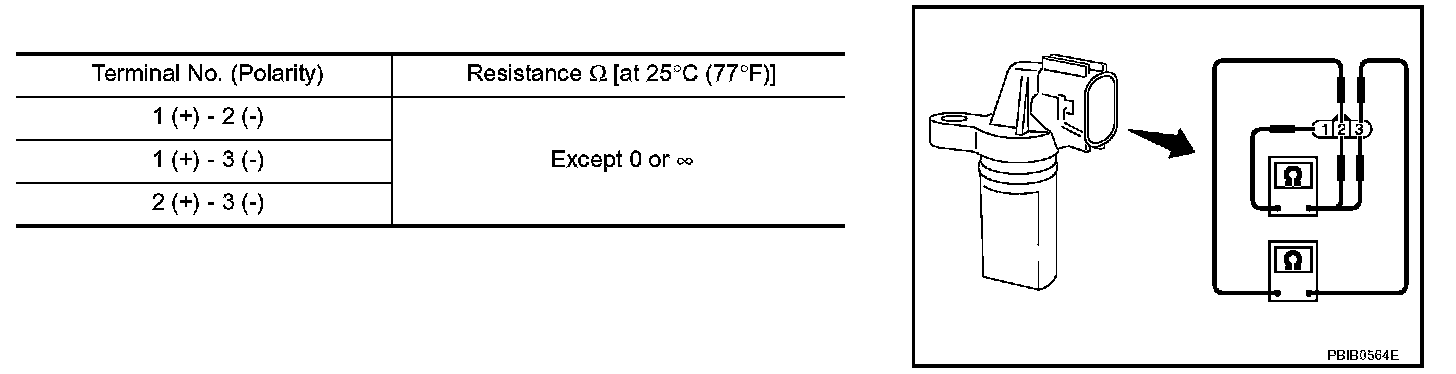

5. Check resistance as shown in the figure.
