BCM (Body Control Module)
BCM (Body Control Module)

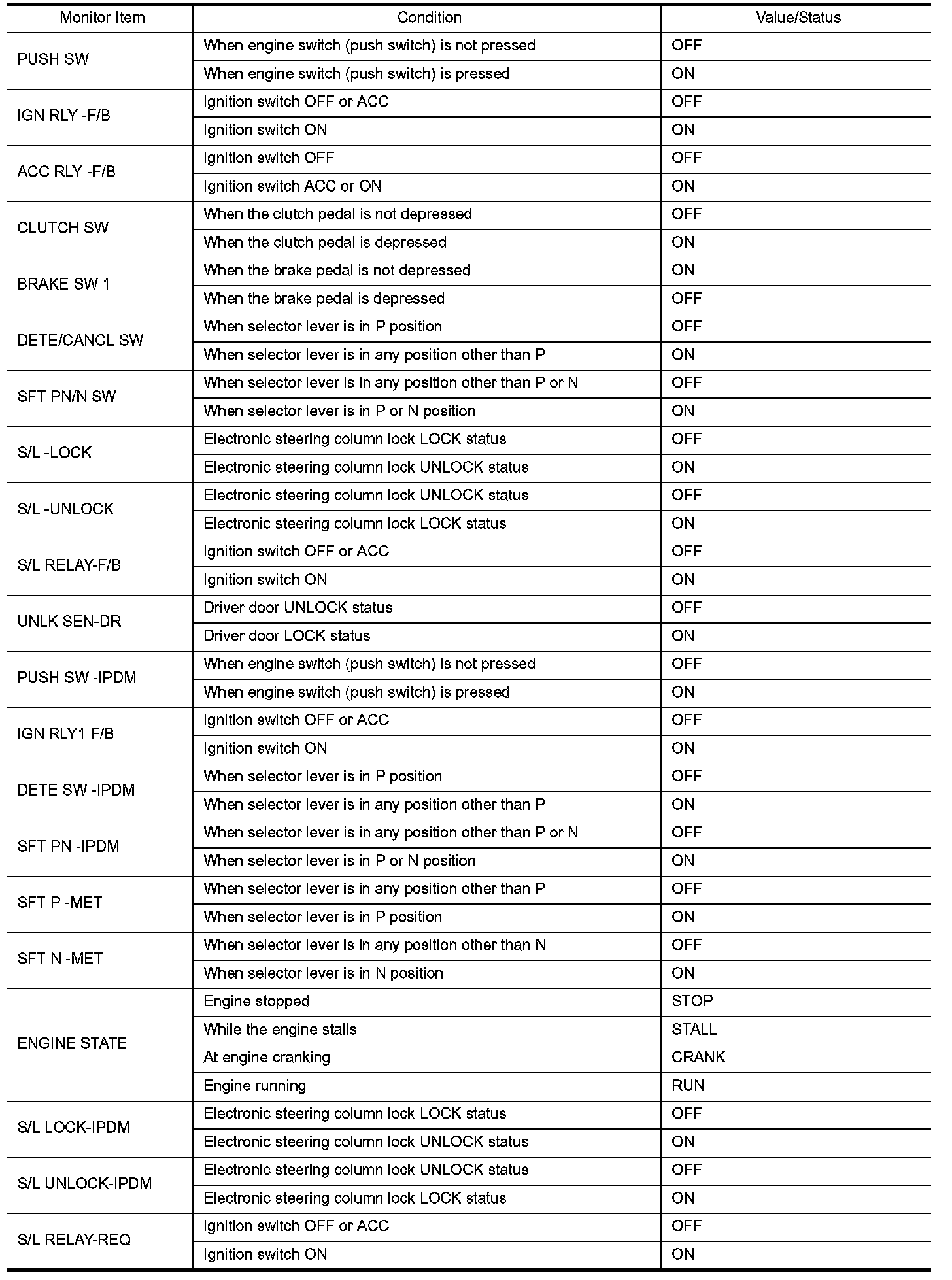

Terminals And Reference Values (Part 1):

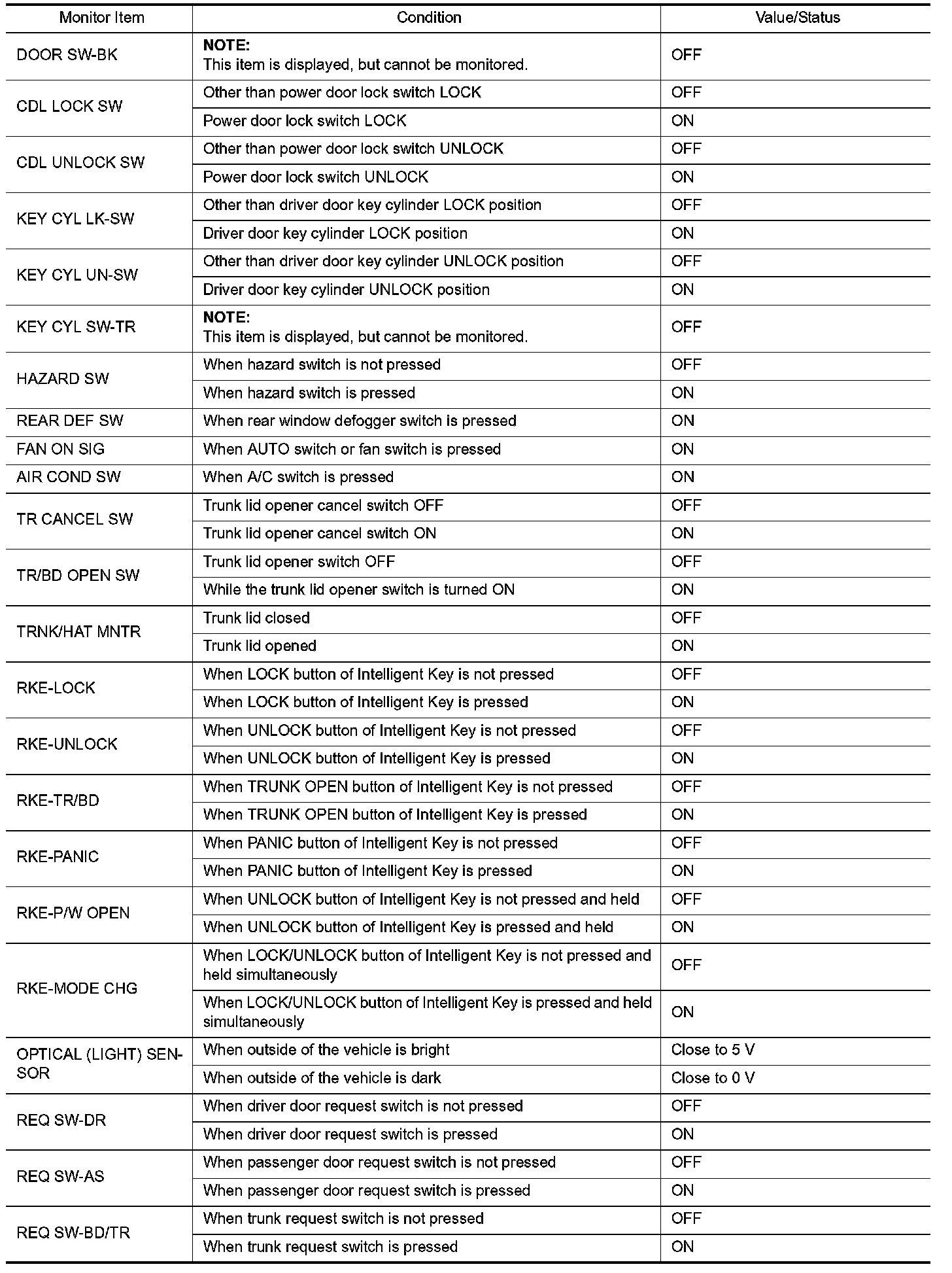

Terminals And Reference Values (Part 2):

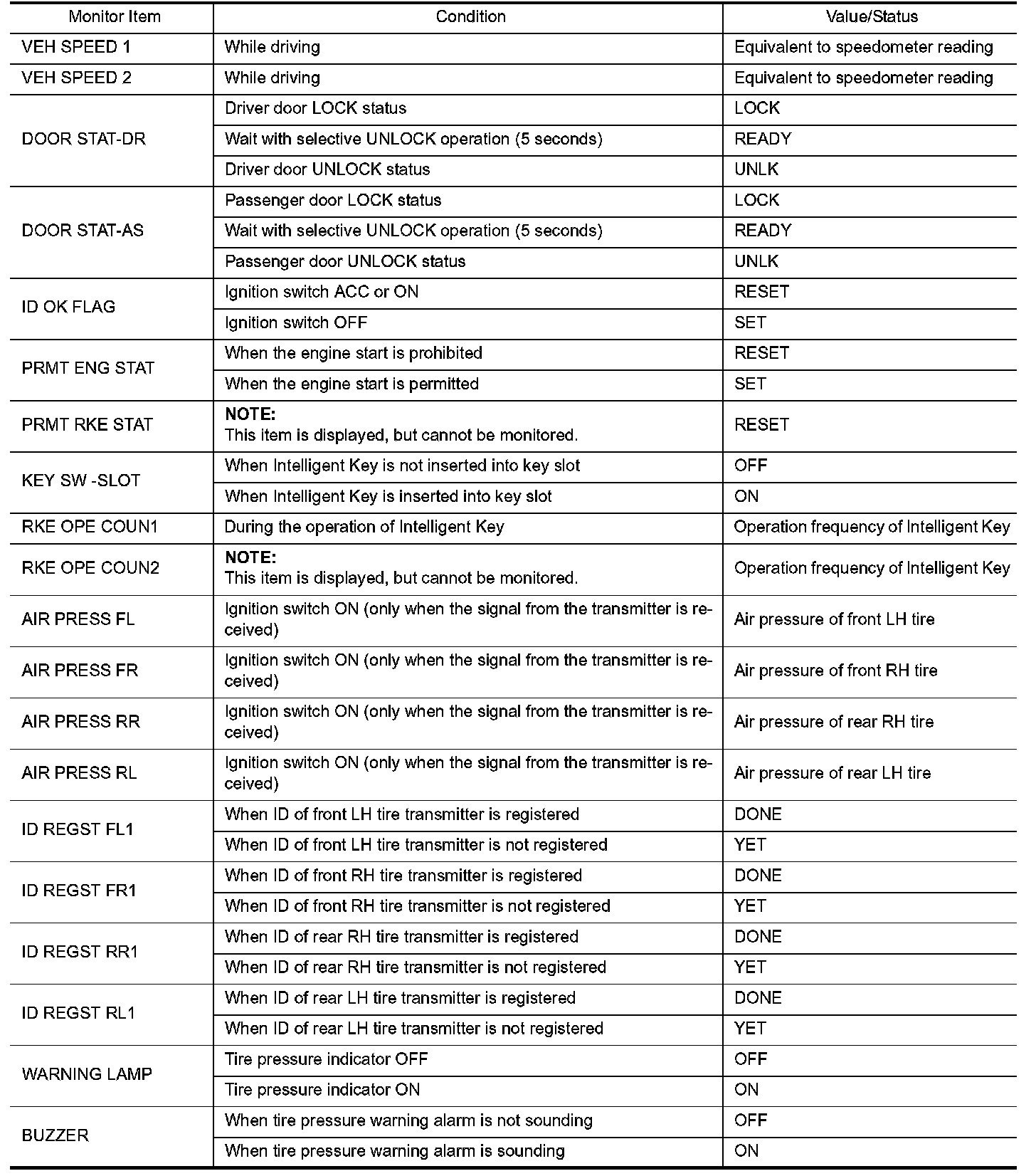

Terminals And Reference Values (Part 3):
Terminals And Reference Values (Part 4):
