CAN System Specification Chart

CAN COMMUNICATION SYSTEM

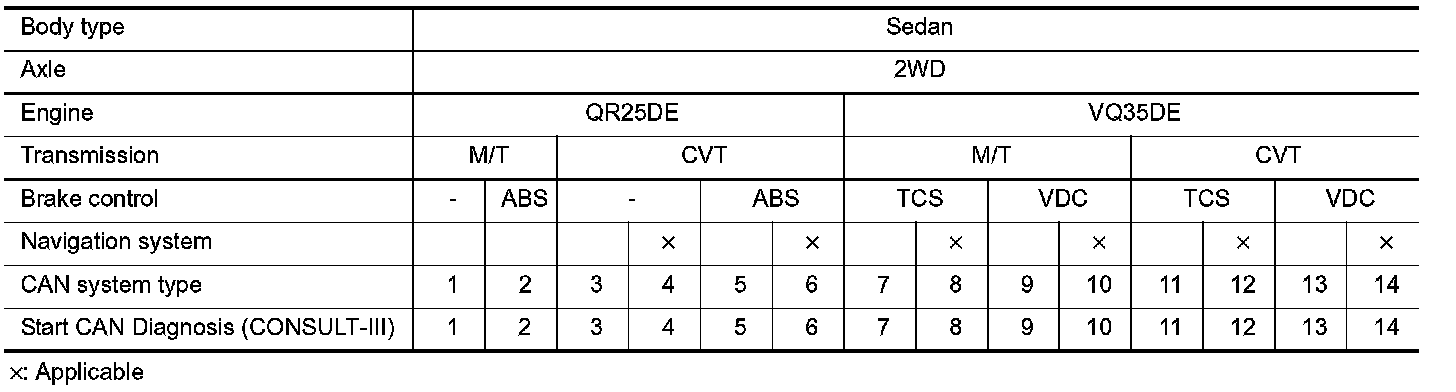

CAN System Specification Chart
Determine CAN system type from the given specification chart.

NOTE: Refer to LAN-16, "Trouble Diagnosis Procedure" for how to use CAN system specification chart. Trouble Diagnosis

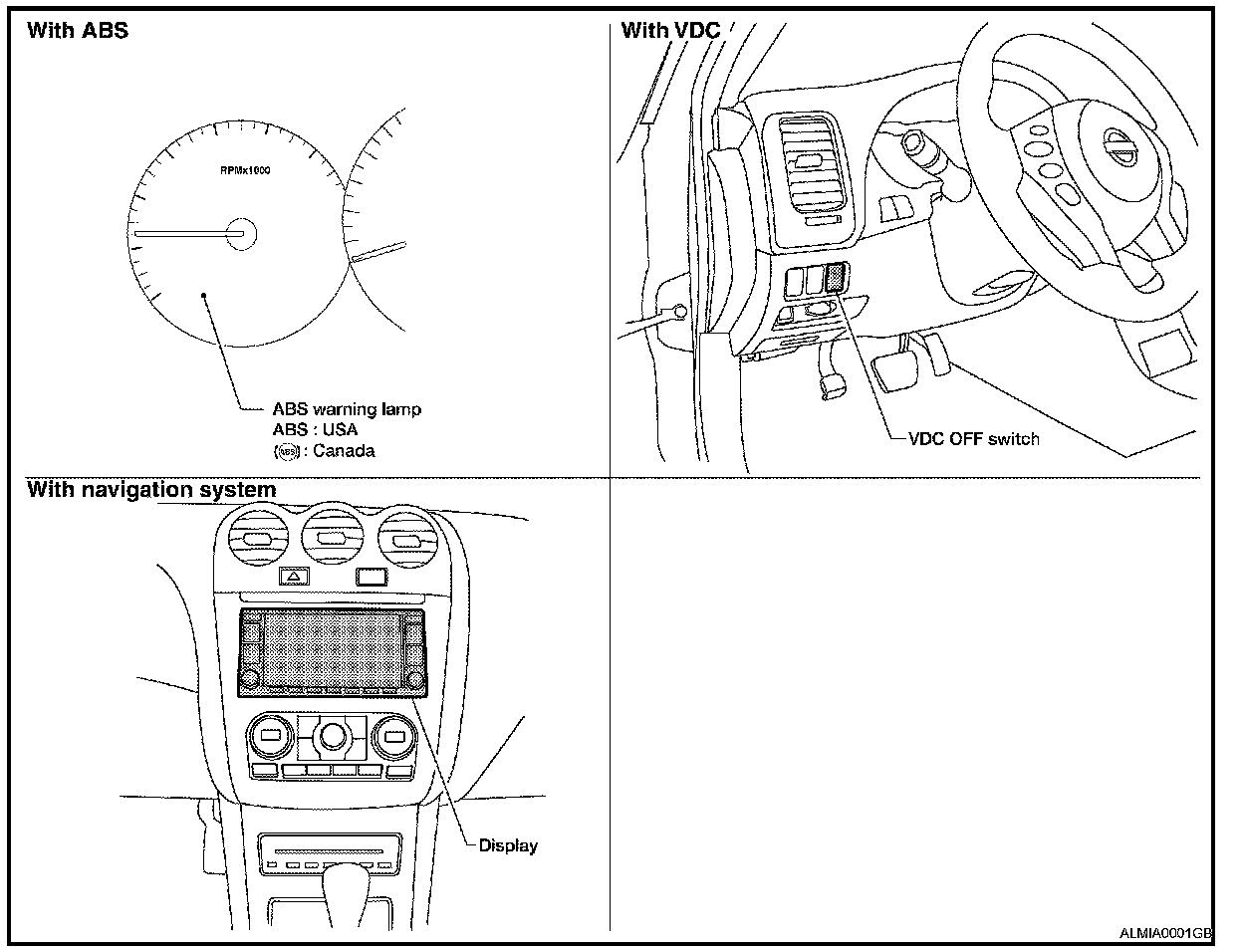

VEHICLE EQUIPMENT IDENTIFICATION INFORMATION

NOTE: Check CAN system type from the vehicle shape and equipment.
