RE0F10A
Precaution for TCM and CVT Assembly ReplacementCAUTION:
^ Check if new data (Unit ID) are entered correctly after replacing CVT assembly and erasing data in TCM. (Connect CONSULT-III, and then turn ignition switch OFF.)
^ When replacing CVT assembly or TCM, refer to the pattern table and erase the EEPROM in the TCM if necessary.

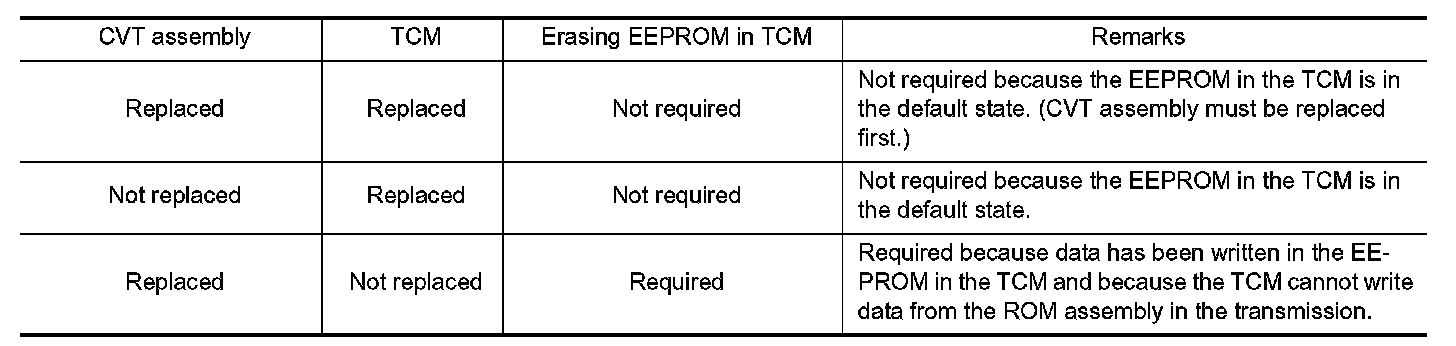

EEPROM ERASING PATTERNS
