System Specifications

Exploded View EM-51:

Timing Chain Tensioner

Crankshaft Pulley
Tighten crankshaft pulley bolts.
Secure crankshaft pulley with a pulley holder to tighten the bolt.
Perform angle tightening with the following procedure:
Apply new engine oil to threads and seat surfaces of bolts.
Tighten to initial specifications:
Crankshaft bolt 42.1 Nm (4.3 kg-m, 31 ft-lb)

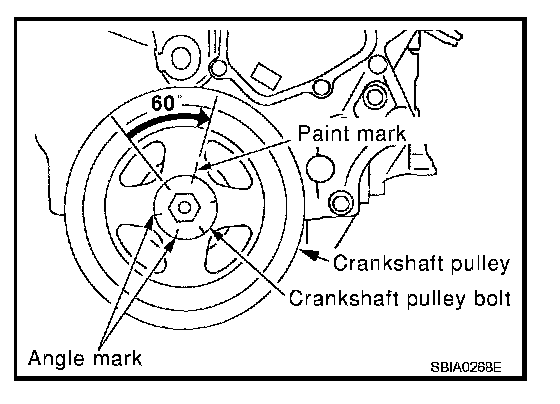

Apply a paint mark on the front cover, mating with any one of six easy to recognize stamp marks on bolt flange.
Turn crankshaft pulley bolt another 60° to 66° [Target: 60°].
Check vertical mounting angle with movement of one stamp mark.

Timing Cover

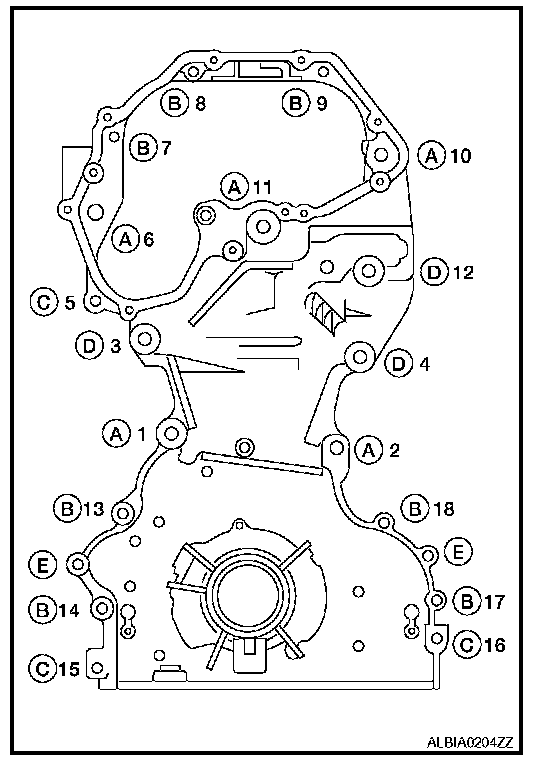

Tighten front cover bolts in the numerical order as shown.
After all bolts are tightened, retighten them to the specified torque.
Front cover bolts
Bolts A 49 Nm (5.0 kg-m, 36 ft-lb)
Bolts B 12.7 Nm (1.3 kg-m, 9 ft-lb)
Bolts C 12.7 Nm (1.3 kg-m, 9 ft-lb)
Bolts D 49 Nm (5.0 kg-m, 36 ft-lb)
E Dowel pins

CAUTION: Wipe off any excess sealant leaking at the surface for installing the oil pan.
