Power Window Switch: Service and Repair
ON-VEHICLE REPAIRPOWER WINDOW MAIN SWITCH
Removal and Installation
REMOVAL

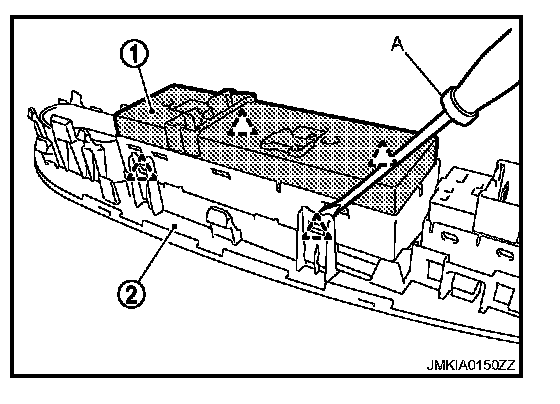

1. Remove the power window main switch finisher (2).
2. Power window main switch (1) is removed from power window main switch finisher (2) using flat-head screw driver (A) etc.
Note: The triangular icons in the image show the locations of the pawls.
CAUTION: Do not fold the pawl of power window main switch finisher.
NOTE: The same procedure is also performed for front power window switch (passenger side) and rear power window switch (LH & RH).
INSTALLATION
Install in the reverse order of removal.
