Keyless Entry Receiver: Service and Repair

Removal and Installation of Remote Keyless Entry (RKE) Receiver

REMOVAL
1. Remove the glove box assembly.

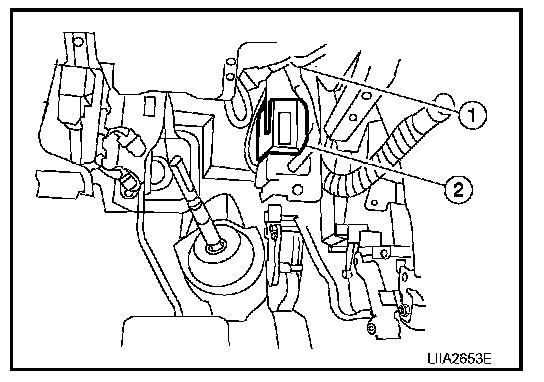

2. Disconnect Intelligent Key unit connector, remove the nut and the Remote keyless Entry (RKE) receiver (2).

INSTALLATION
Installation is in the reverse order of removal.
