Terminals and Reference Values For Intelligent Key Unit

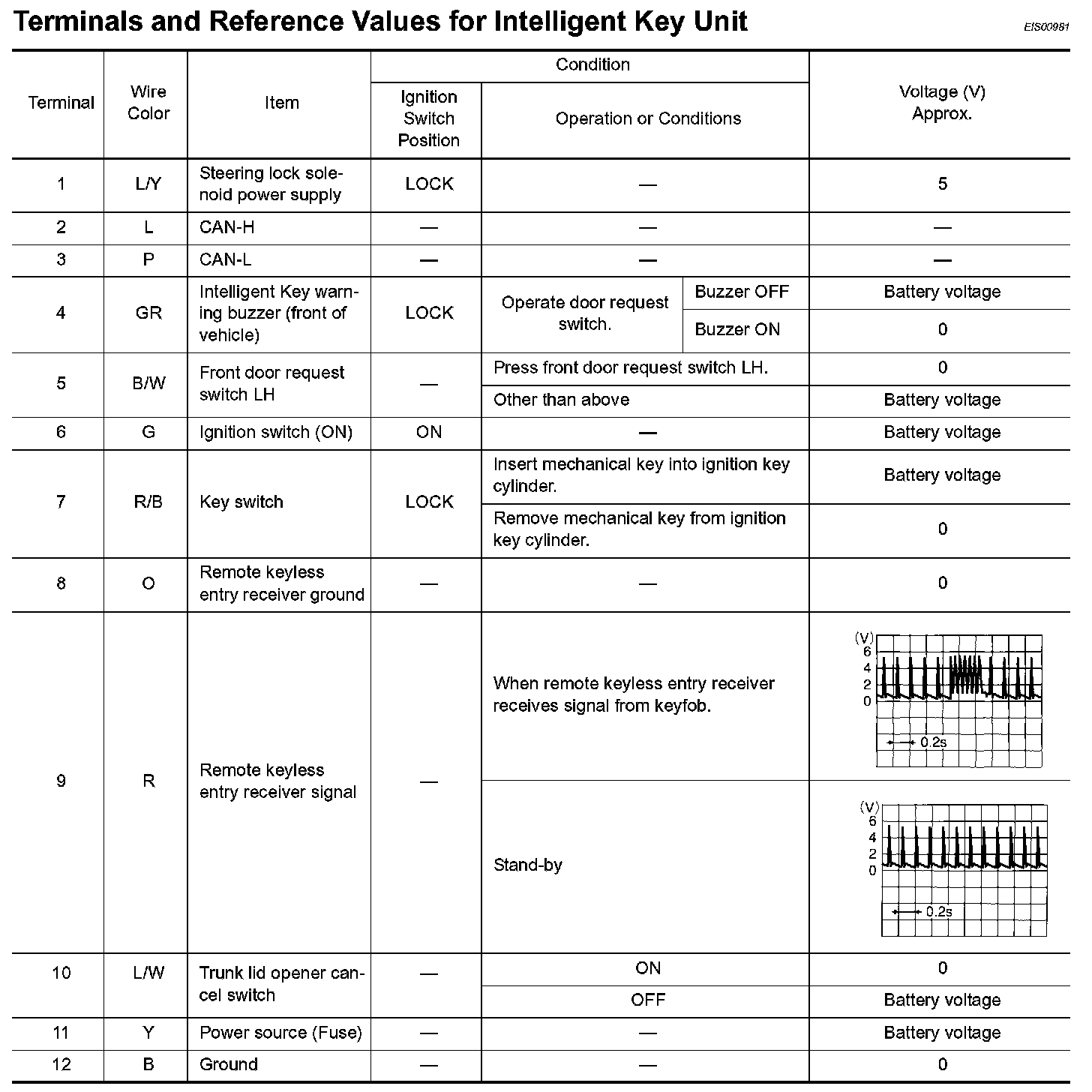

Terminals And Reference Values For Intelligent Key Unit (Part 1):

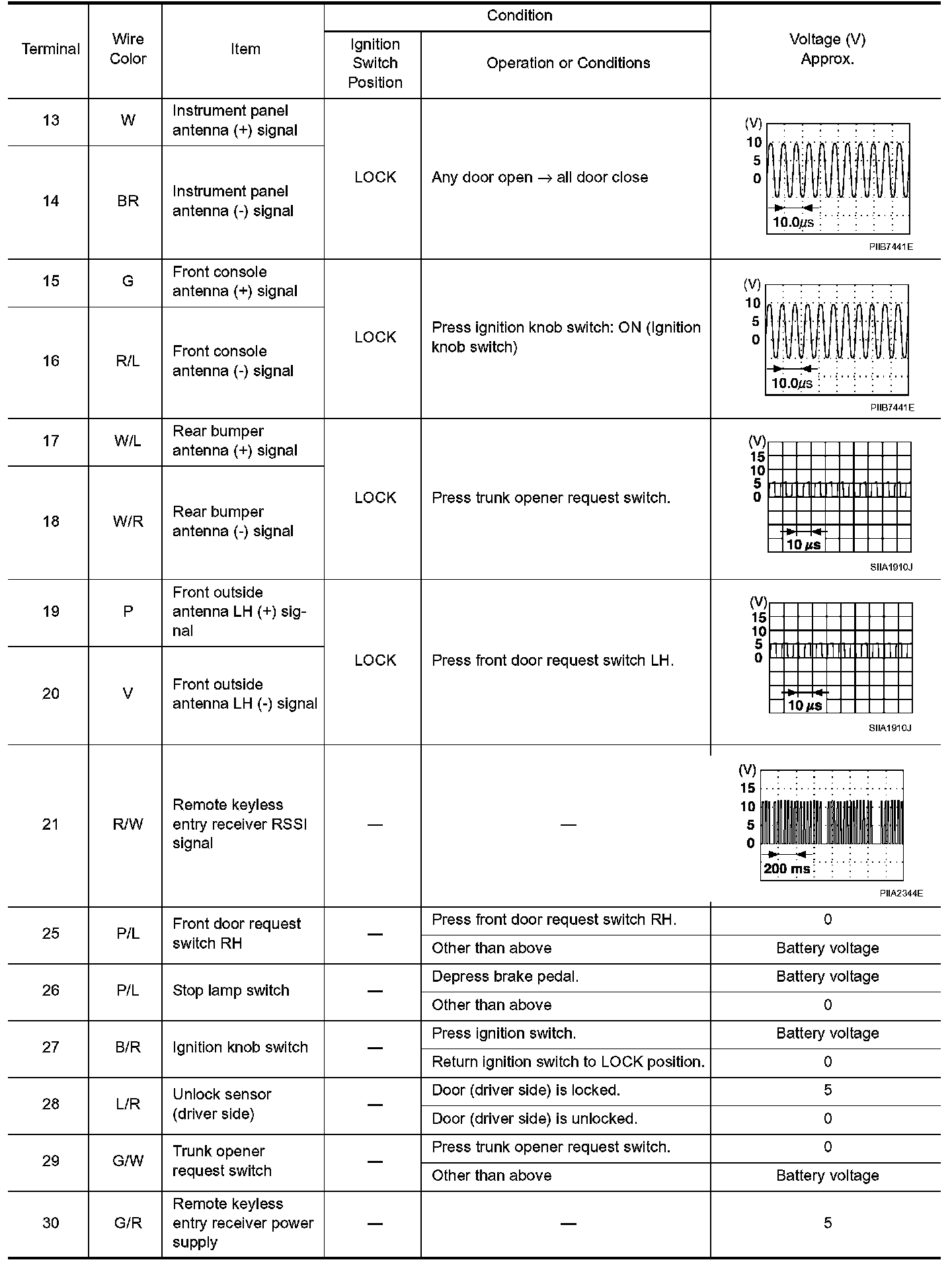

Terminals And Reference Values For Intelligent Key Unit (Part 2):

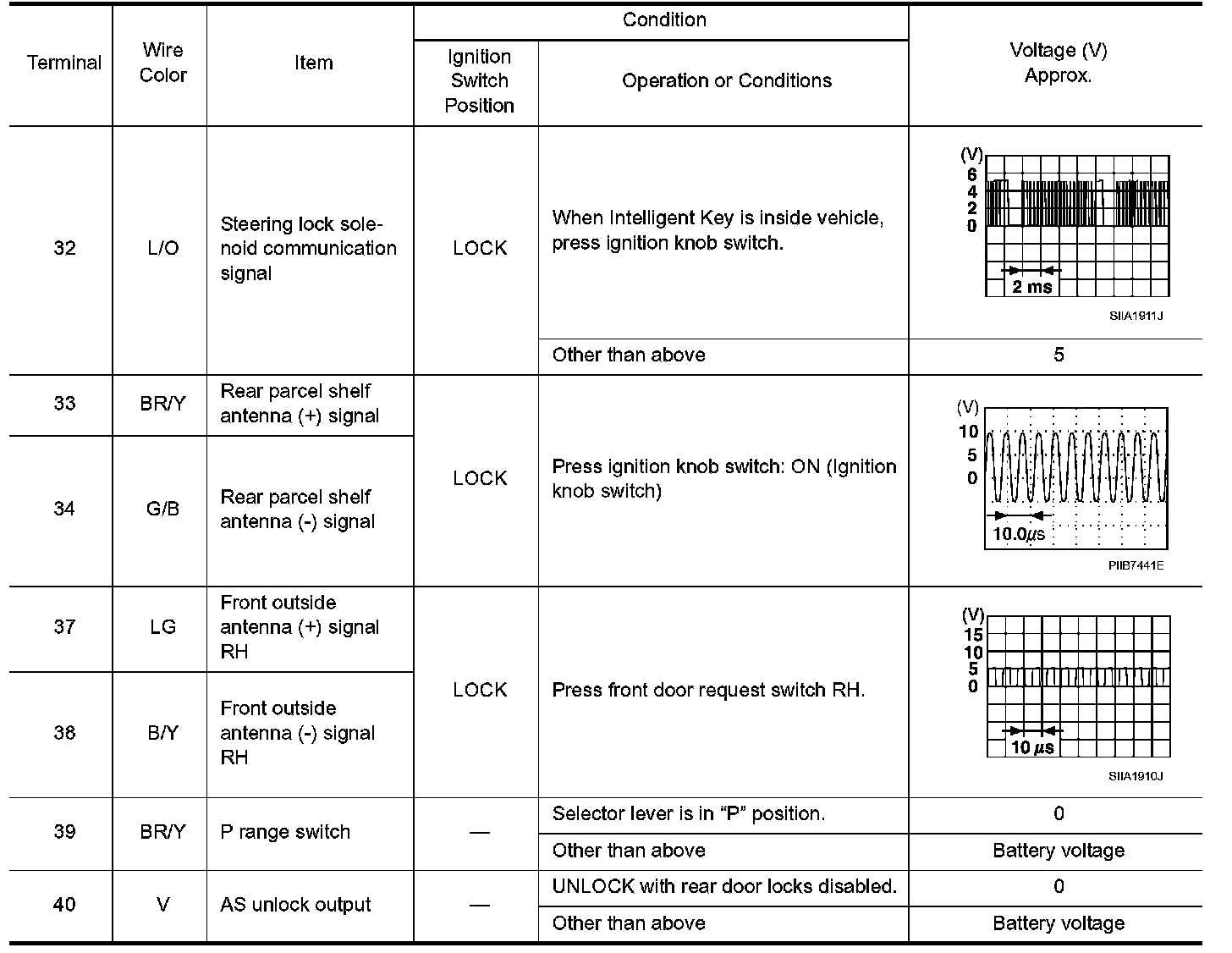

Terminals And Reference Values For Intelligent Key Unit (Part 3):
