SHIFT POSITION INDICATOR CIRCUIT

Description
TCM sends the switch signals to unified meter and A/C amp via CAN communication line. Then manual mode switch position is indicated on the shift position indicator.

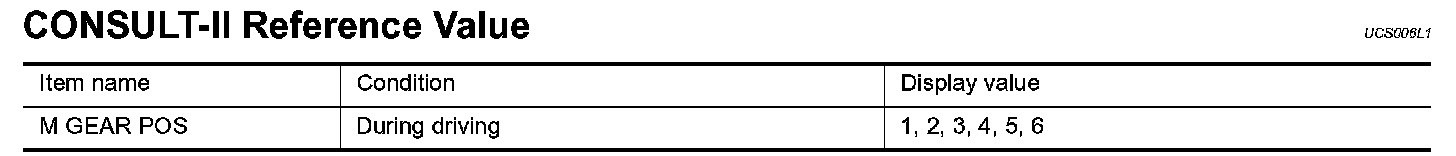

CONSULT-II Reference Value:

Diagnostic Procedure

1. CHECK INPUT SIGNALS

With CONSULT-II
1. Start engine.
2. Select "MAIN SIGNALS" in "DATA MONITOR" mode for "TRANSMISSION" with CONSULT-II and read out the value of "M GEAR POS".
3. Drive vehicle in the manual mode, and confirm that the actual gear position and the meter's indication of the position mutually coincide when the select lever is shifted to the "+ (up)" or "- (down)" side (1st <-> 6th gear).
OK or NG
OK >> INSPECTION END
NG >> Check the following.

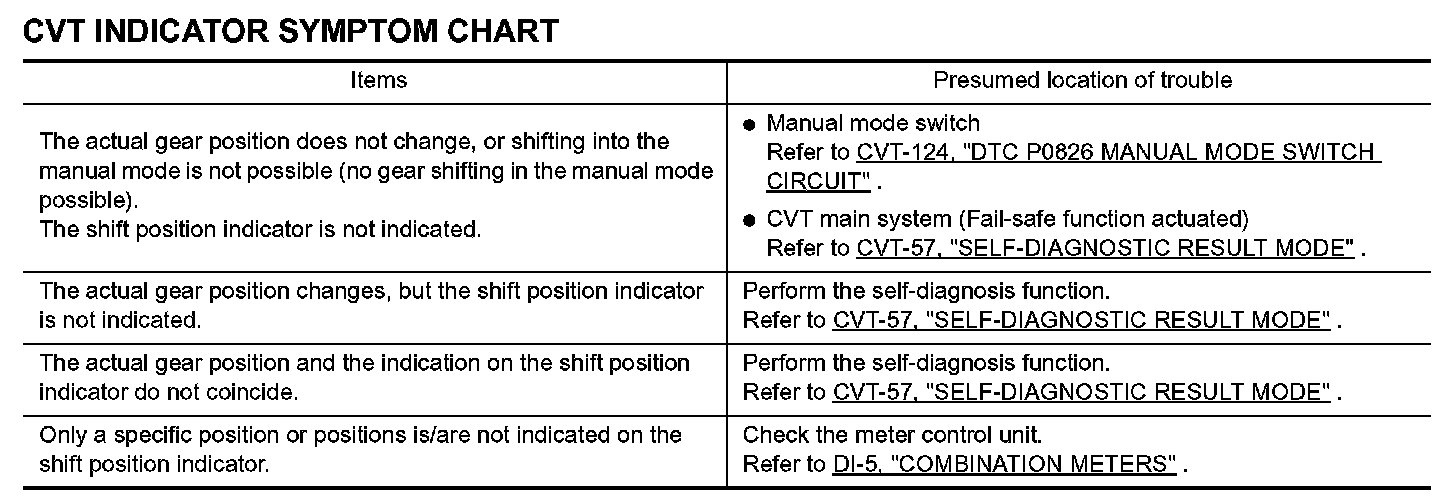

CVT INDICATOR SYMPTOM CHART:
