Service Limits & General Specifications

CONNECTING ROD BEND AND TORSION

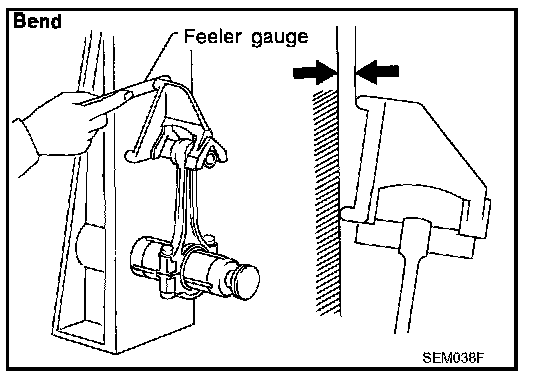

Bend: Limit 0.15 mm (0.0059 in) per 100 mm (3.94 in) length

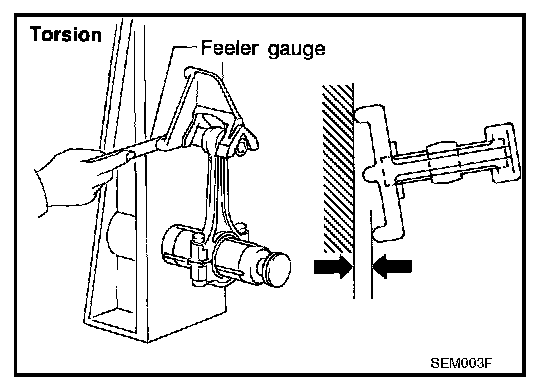

Torsion: Limit 0.30 mm (0.0118 in) per 100 mm (3.94 in) length





^ If it exceeds the limit, replace connecting rod assembly.

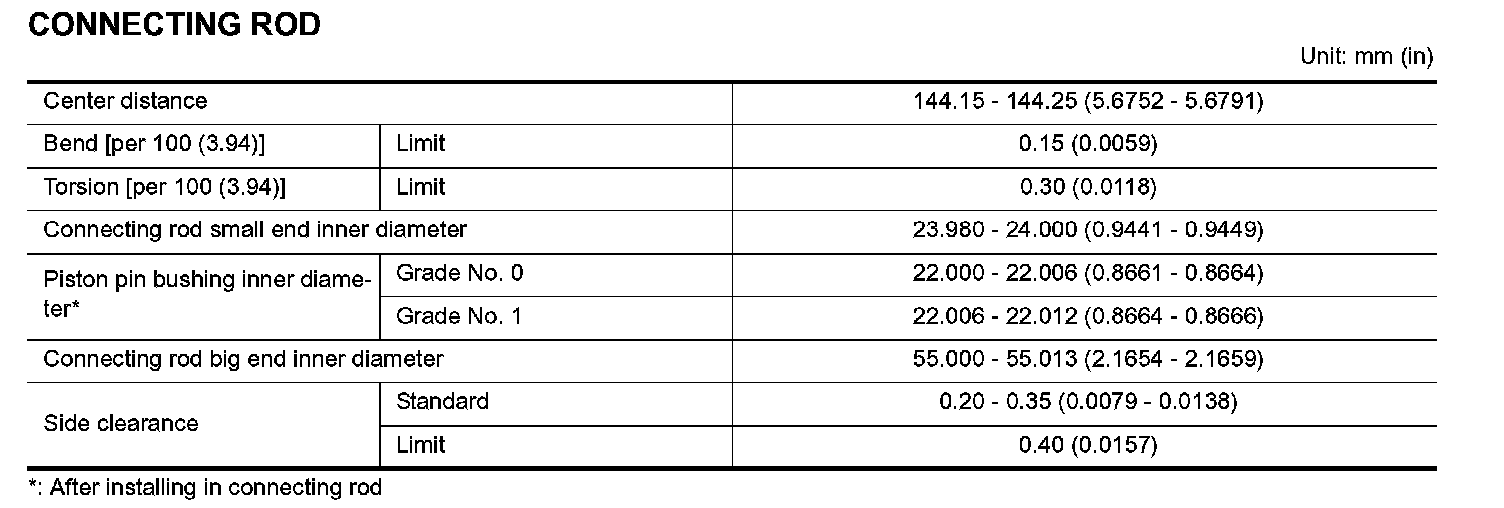

CONNECTING ROD
