System Specifications

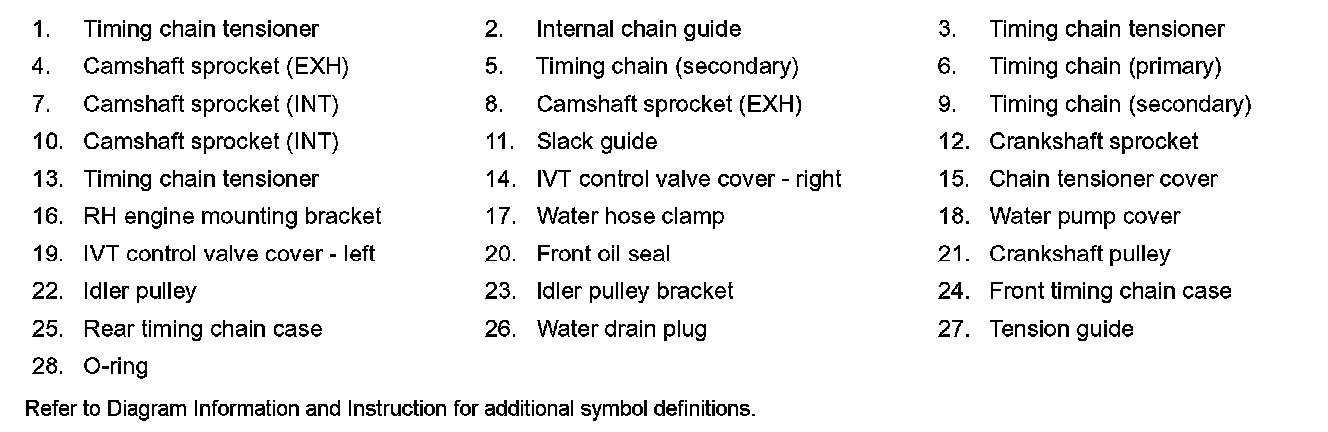

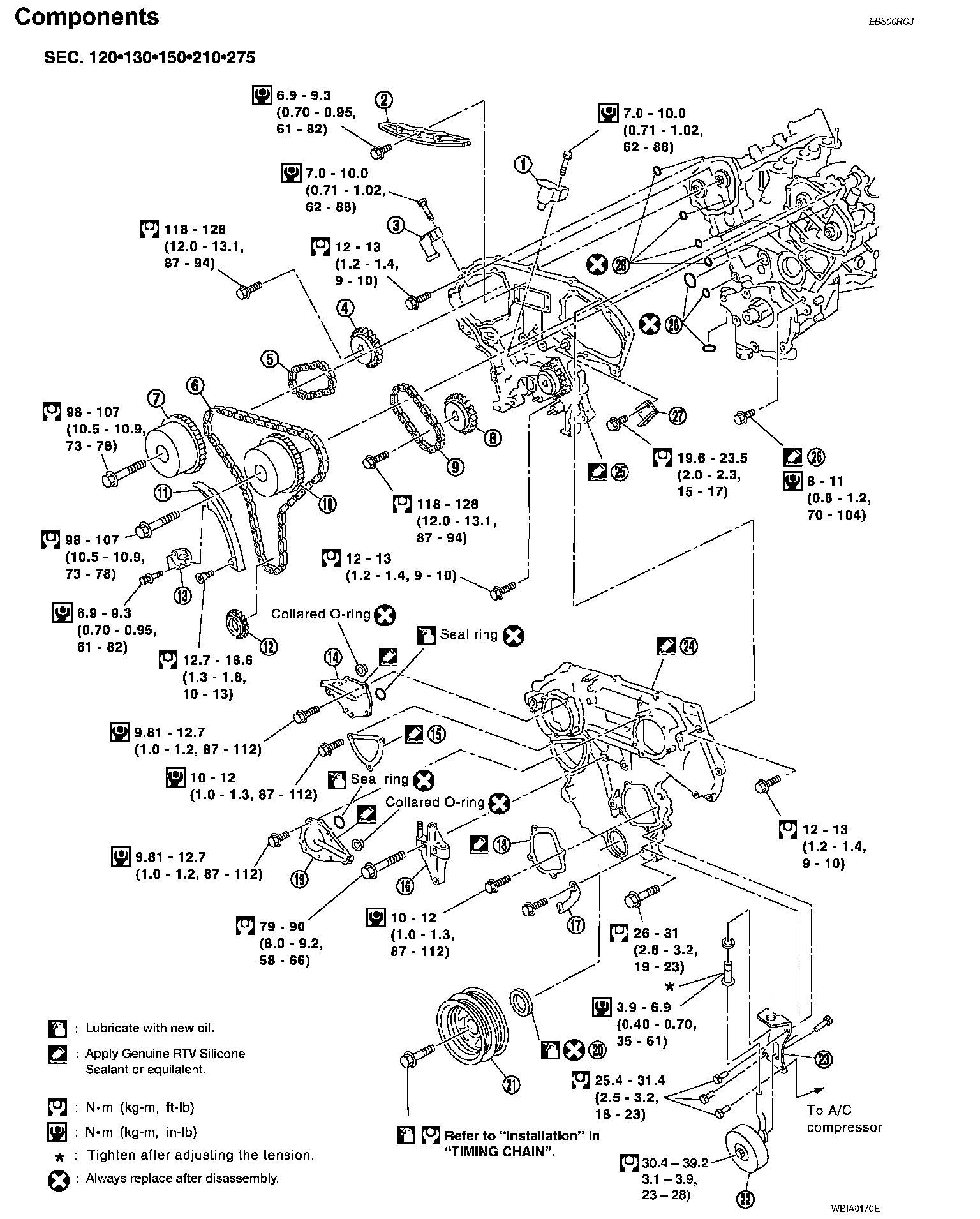

Exploded View EM-54 (Part 1):

Exploded View EM-54 (Part 2):

Timing Chain Tensioner

Crankshaft Pulley
Install crankshaft pulley and tighten the bolt in two steps.
Lubricate thread and seat surface of the bolt with new engine oil.
For the second step of angle tightening. Use Tool.
Step 1 44 Nm (4.5 kg-m, 32 ft-lb)
Step 2 90° degrees clockwise

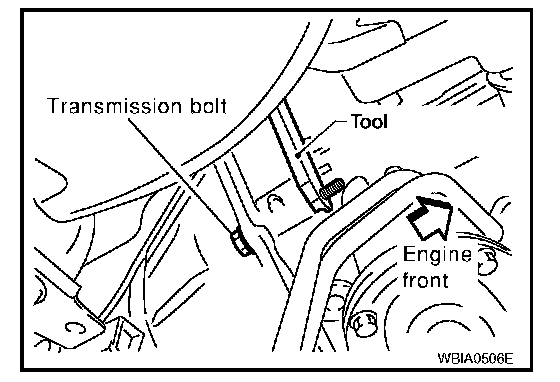

Tool number: KV10112100 (BT-8653-A)





Remove Tool.
Tool number: KV10117700 (J-44716)

Timing Cover





Bolt position Bolt diameter
1, 2 8 mm (0.31 in)
3 - 22 6 mm (0.24 in)

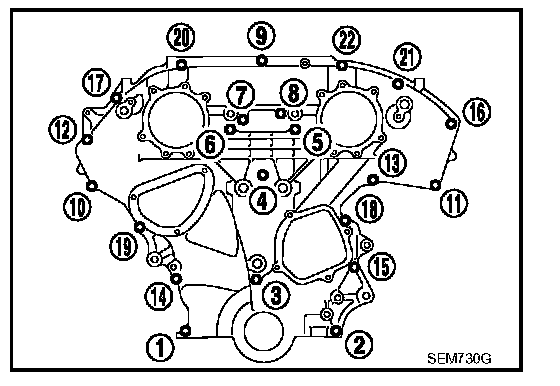

Tighten the front timing chain case bolts in the order as shown.
Retighten the front timing chain case bolts in the order as shown.
Bolt position Tightening specification
1, 2 28.5 Nm (2.9 kg-m, 21 ft-lb)
3 - 22 12.8 Nm (1.3 kg-m, 9 ft-lb)
