Ignition Coil: Service and Repair

IGNITION COIL

Removal and Installation

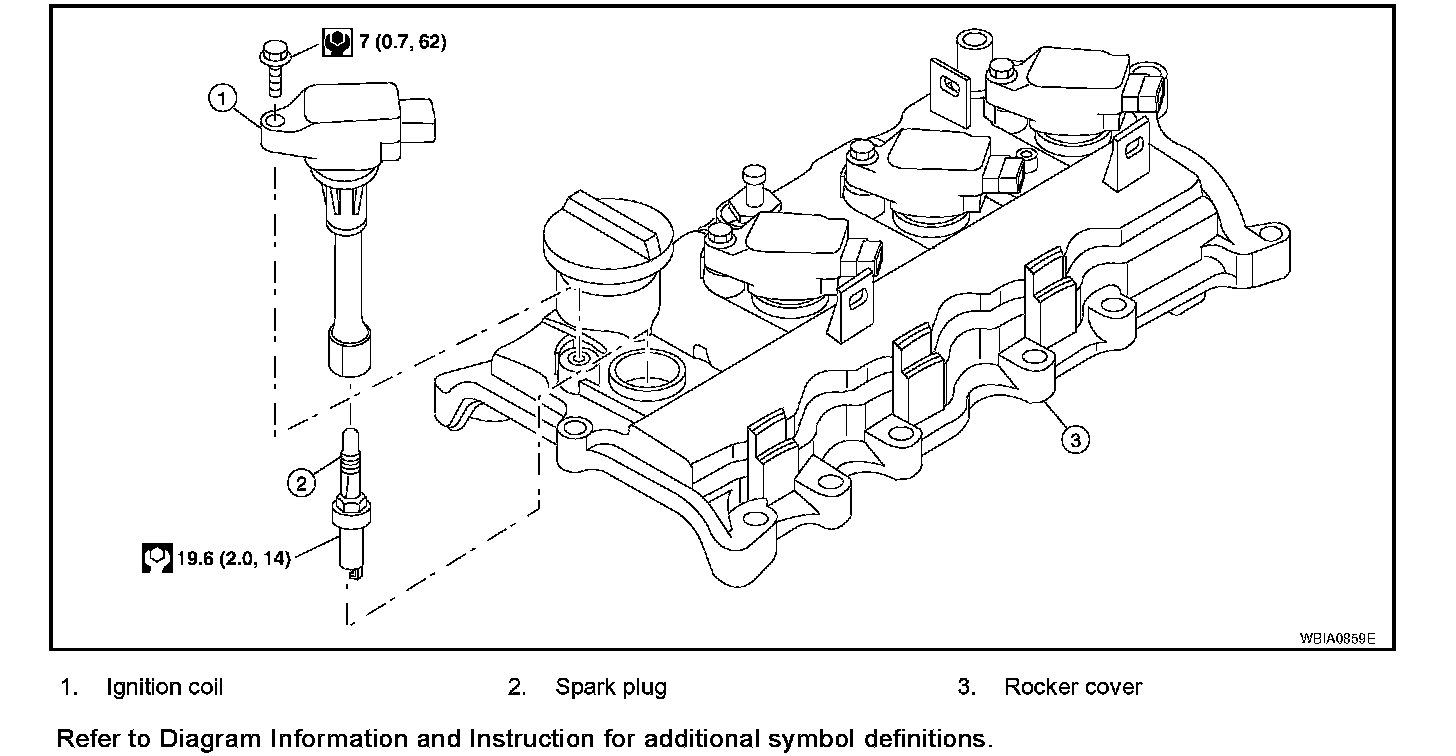

Exploded View EM-141:

REMOVAL
1. Remove the engine cover.
2. Remove air duct.
3. Disconnect the harness connector from the ignition coil.
4. Remove the ignition coil.

CAUTION: Do not drop or shock it.

INSTALLATION
Installation is in the reverse order of removal.
