Pinout Values and Diagnostic Parameters

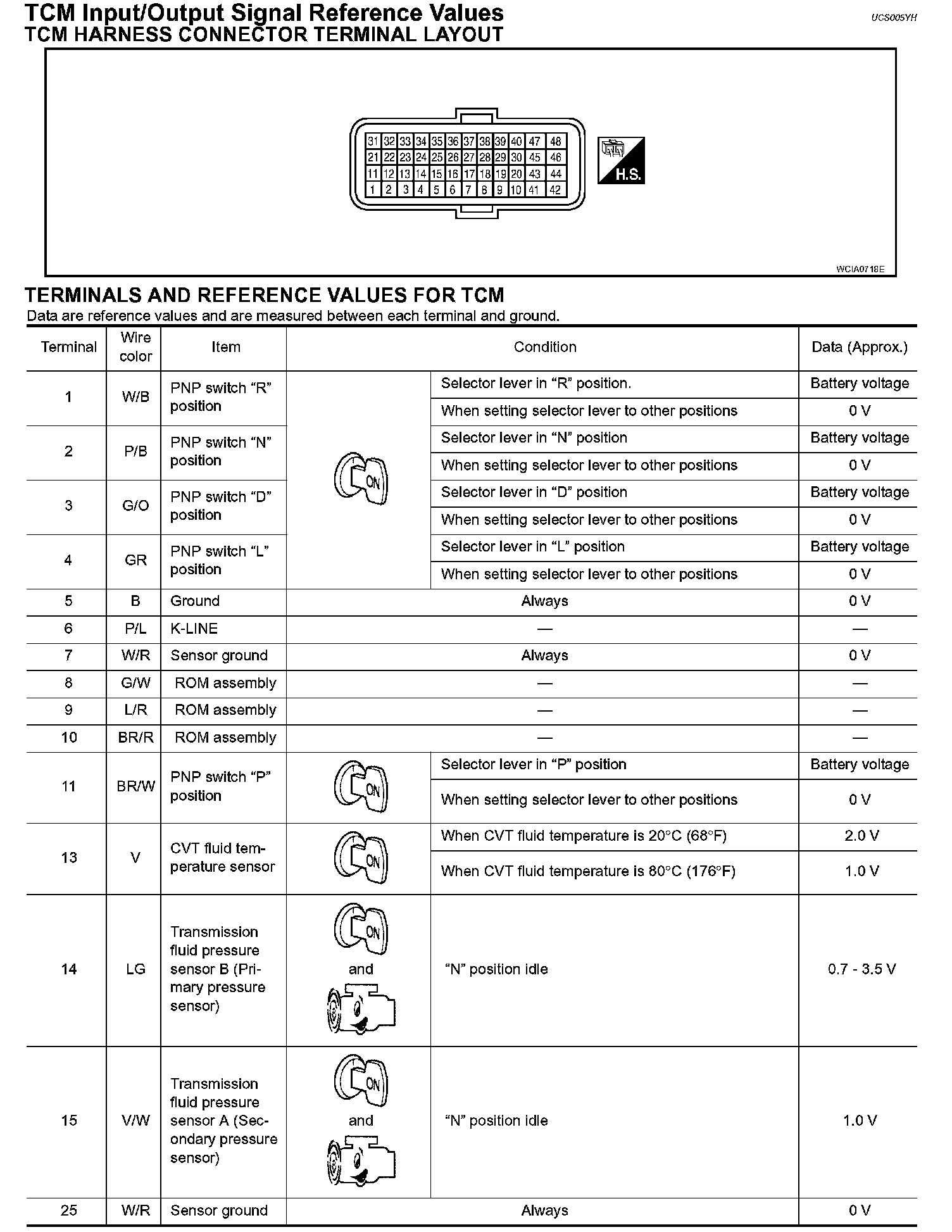

TCM Input/Output Signal Reference Values (Part 1):

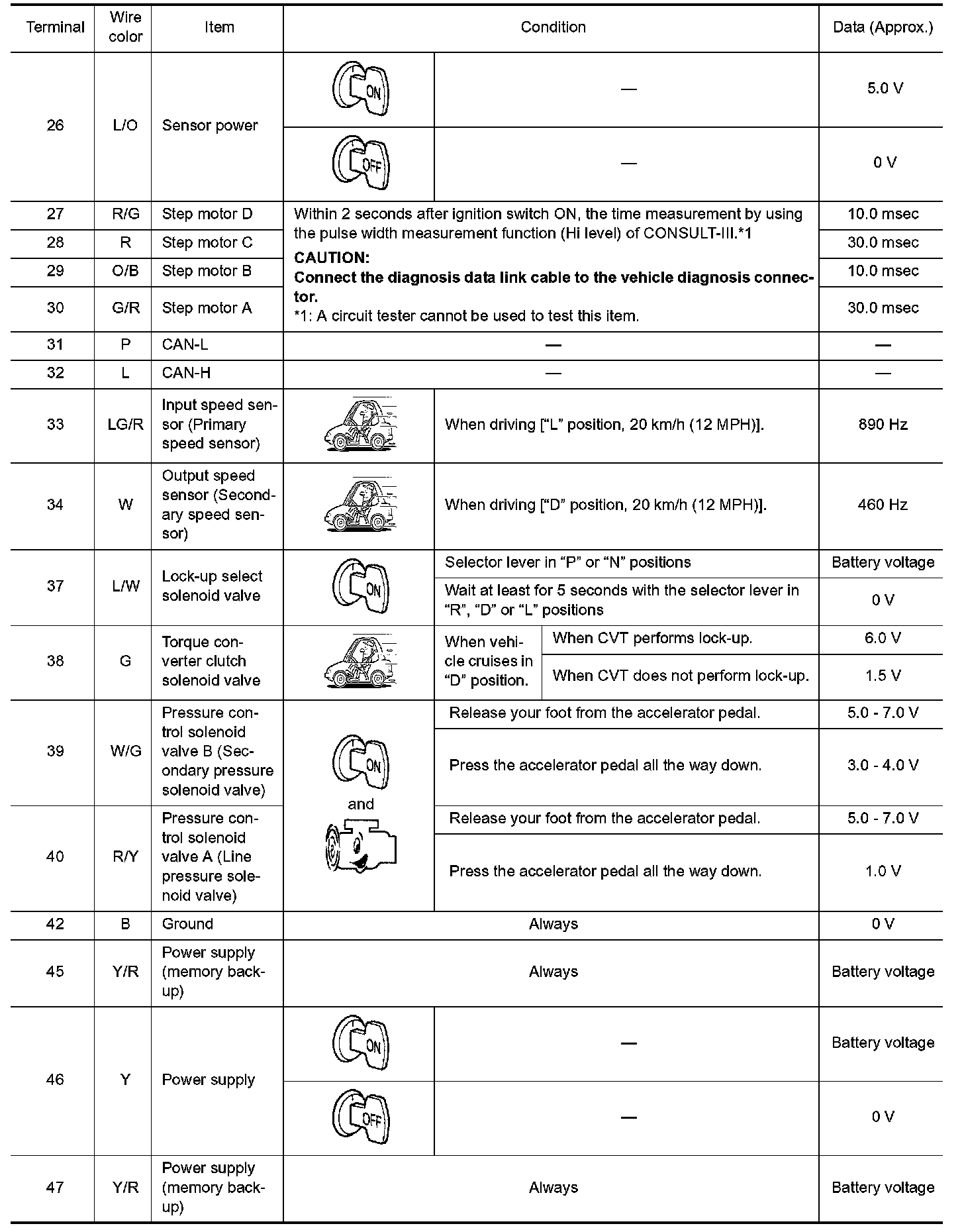

TCM Input/Output Signal Reference Values (Part 2):



TCM Input/Output Signal Reference Values (Part 3):
