Intake Manifold

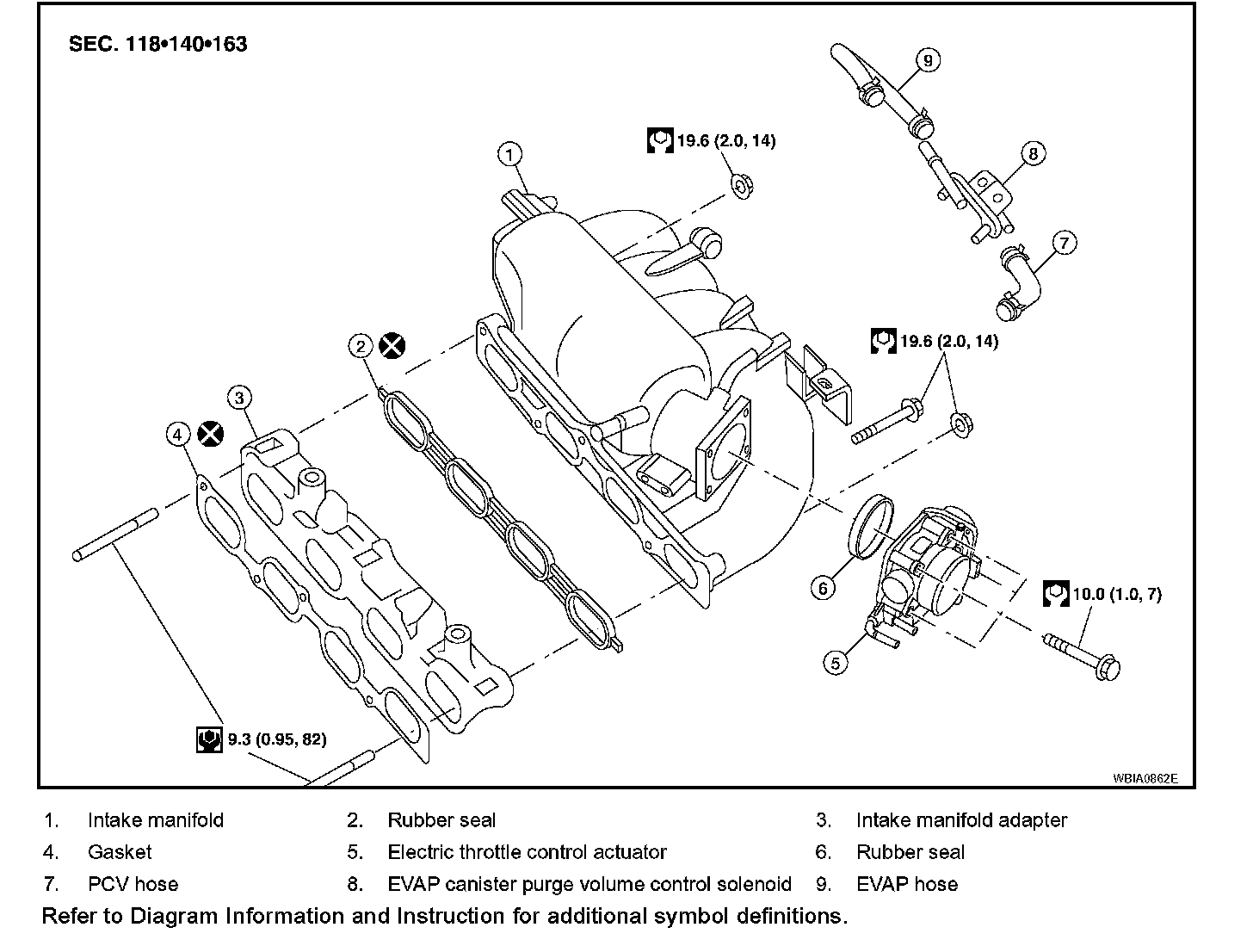

Exploded View EM-132:

Intake Manifold

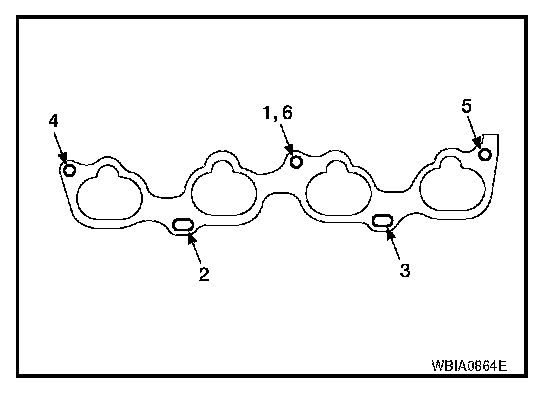

Tightening Intake Manifold Bolts and Nuts





Tighten in numerical order as shown.

CAUTION: After tightening No.5, retighten the No.1 bolt to specification.
