Check Drive Side Power Window Motor Circuit

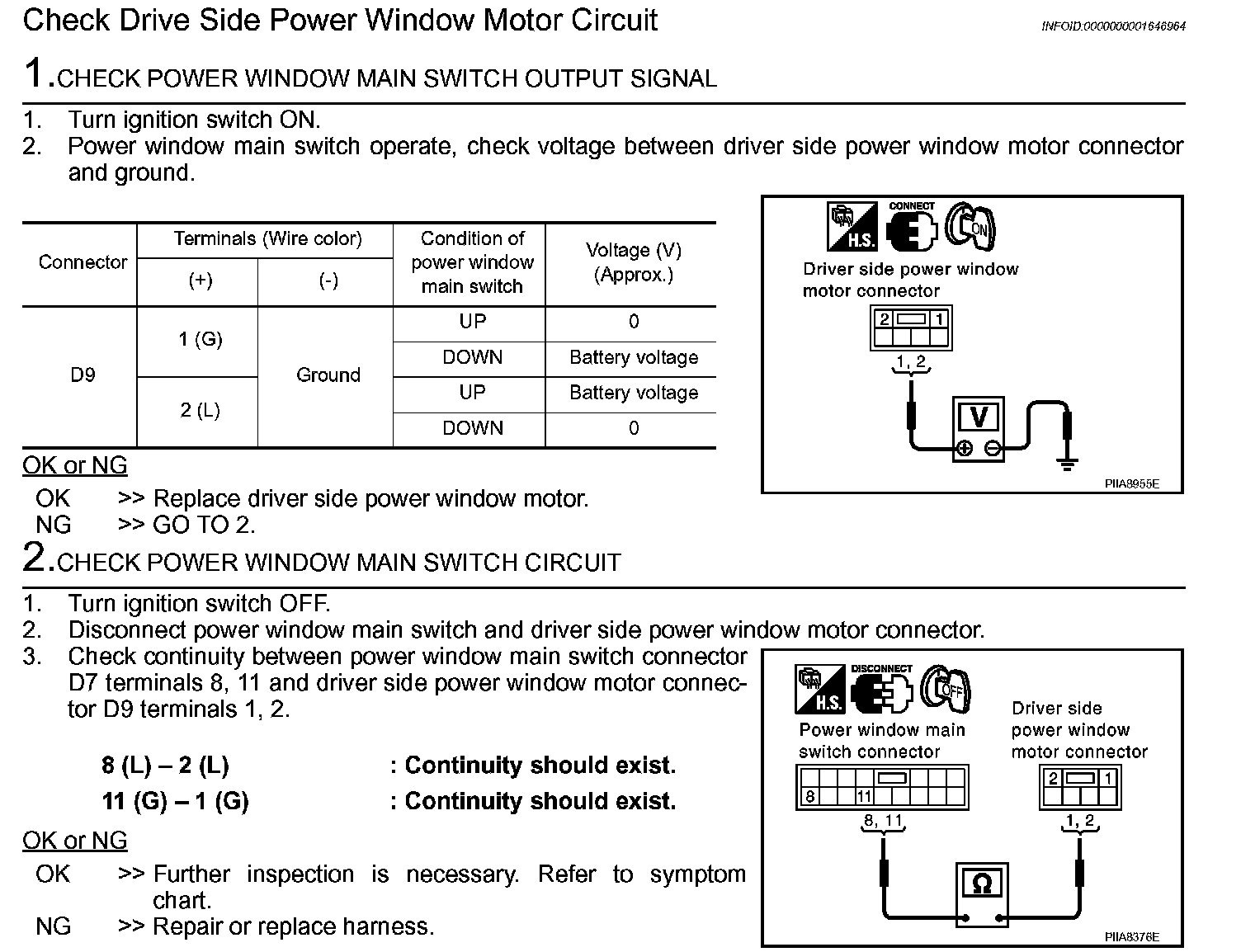

Check Drive Side Power Window Motor Circuit
POWER WINDOW SYSTEM
CHECK DRIVE SIDE
POWER WINDOW MOTOR
CIRCUIT
Step 1-2:
