Tightening Torque and Sequence

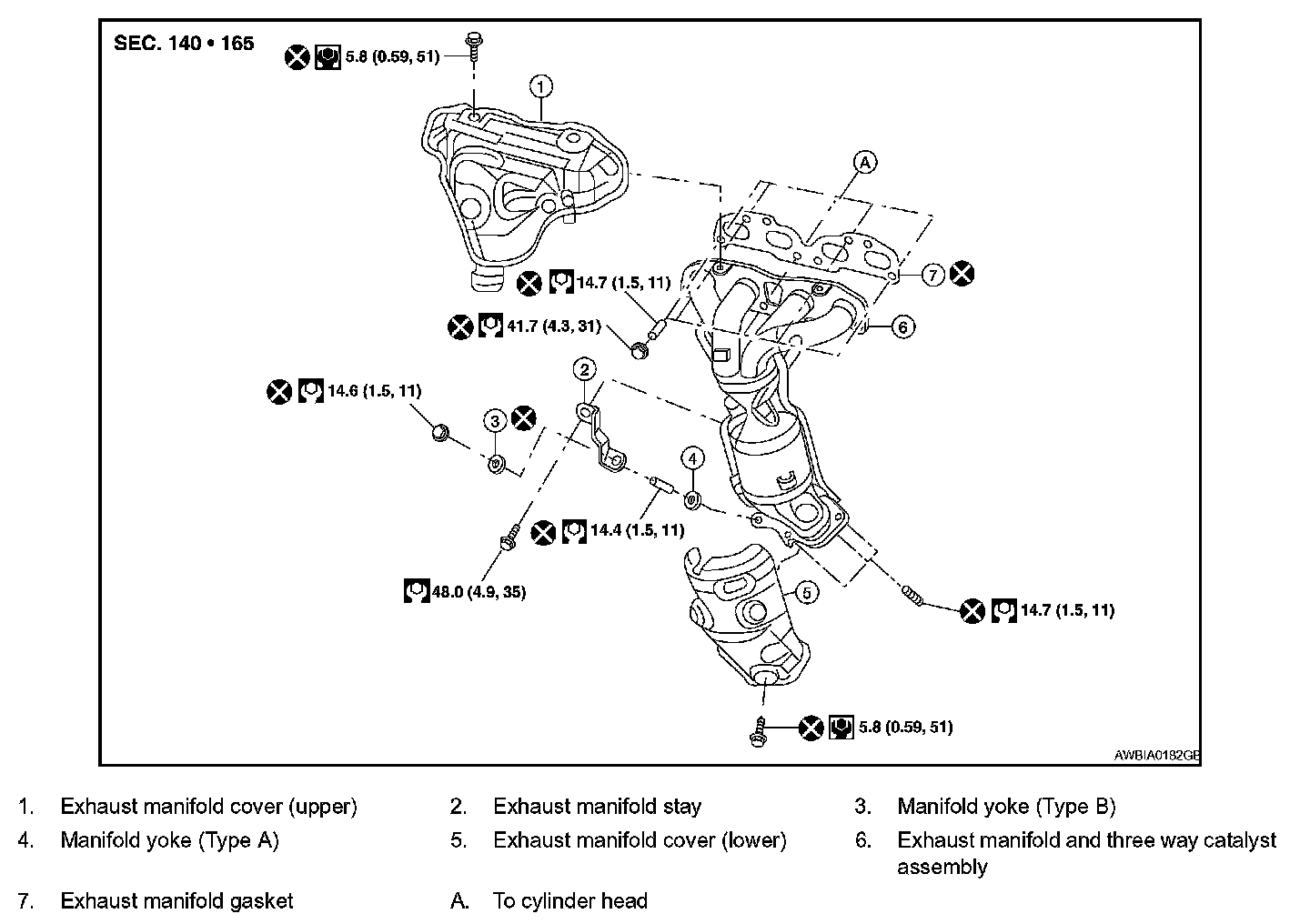

EM-30 Exploded View:





Exhaust Manifold

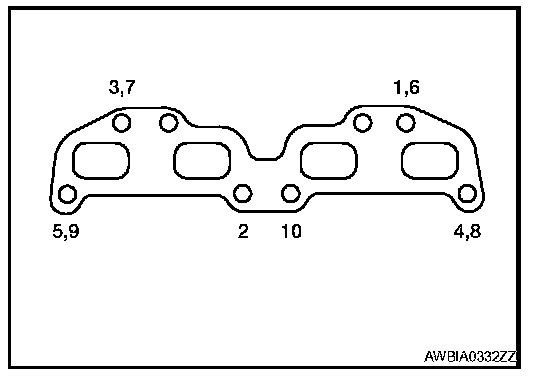

Tighten the nuts in the numerical order shown, to specification.
