B1035

B1033 - B1035 CRASH ZONE SENSOR

Description

DTC B1033 - B1035 CRASH ZONE SENSOR
The crash zone sensor is wired to the air bag diagnosis sensor unit. The air bag diagnosis sensor unit will monitor for opens and shorts in detected lines to the crash zone sensor.

PART LOCATION
Refer to "SRS Component Parts Location".

DTC Logic

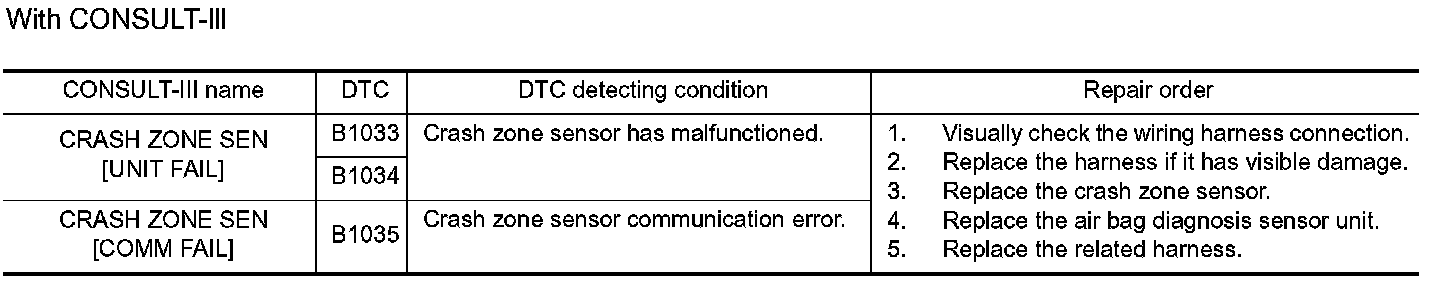

DTC DETECTION LOGIC




With CONSULT-III




Without CONSULT-III

Step 1-3:

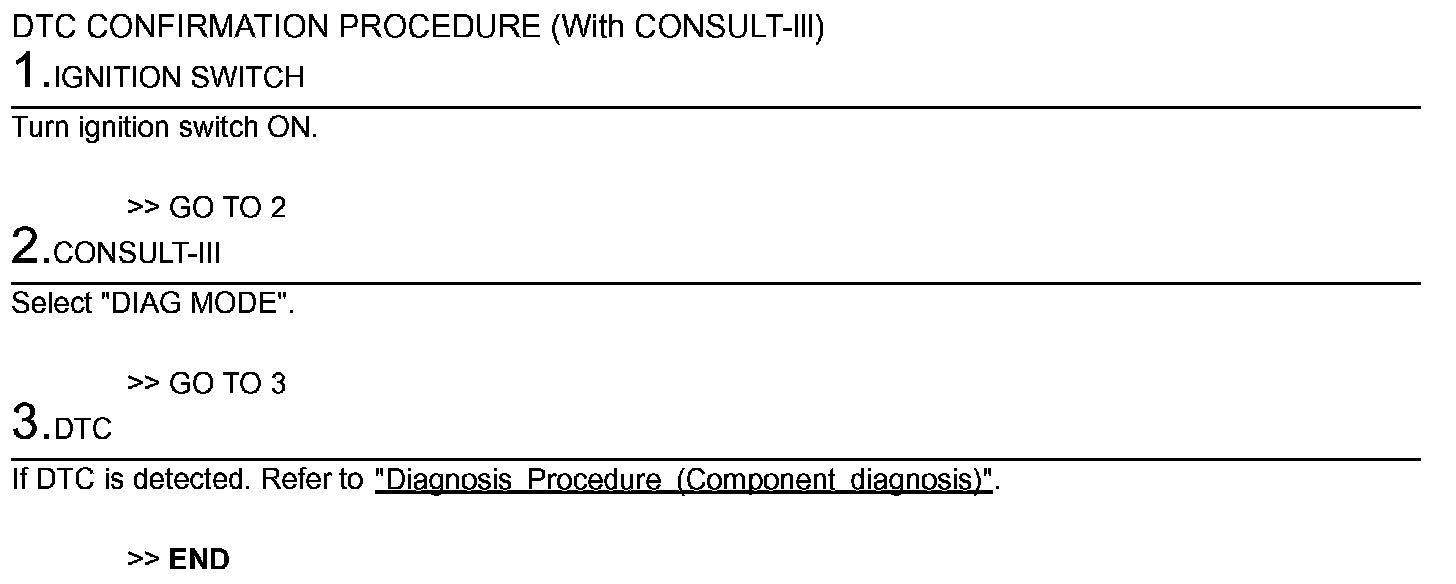

DTC CONFIRMATION PROCEDURE (With CONSULT-III)

Step 1-6:

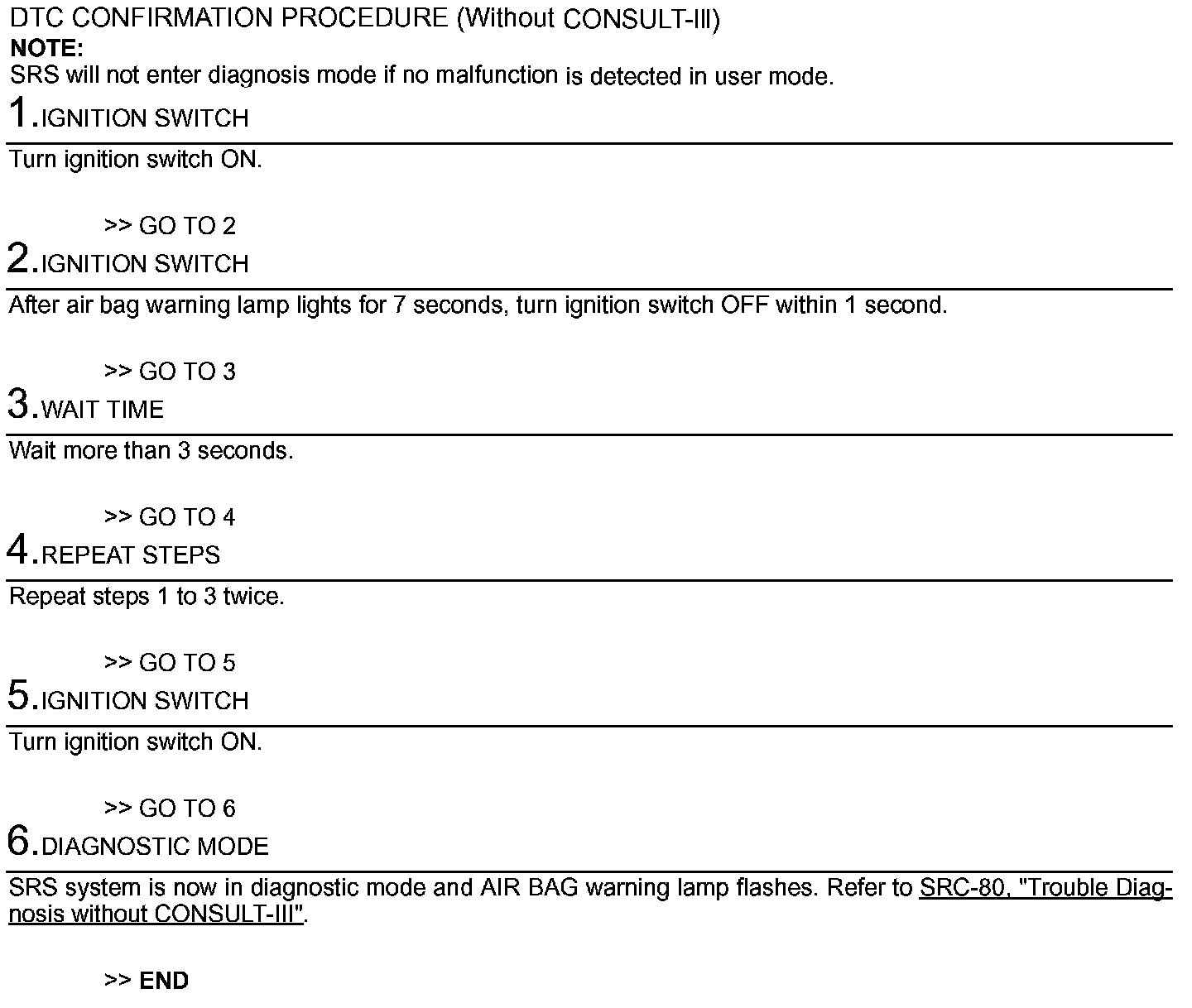

DTC CONFIRMATION PROCEDURE (Without CONSULT-III)

Step 1-4:

Step 4 (Continued)-5:

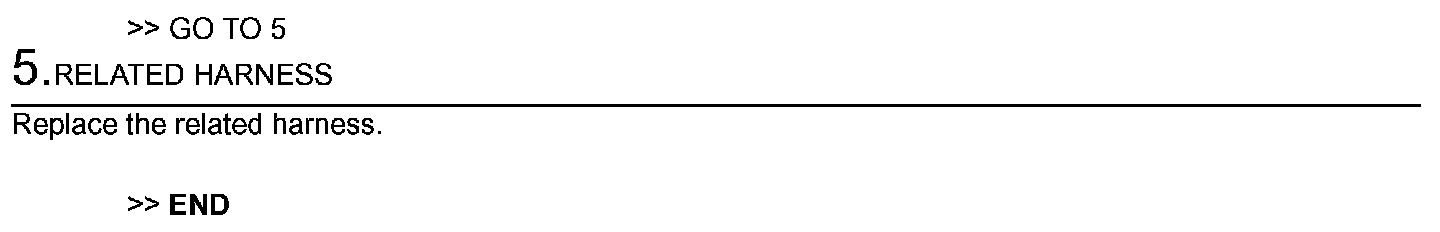

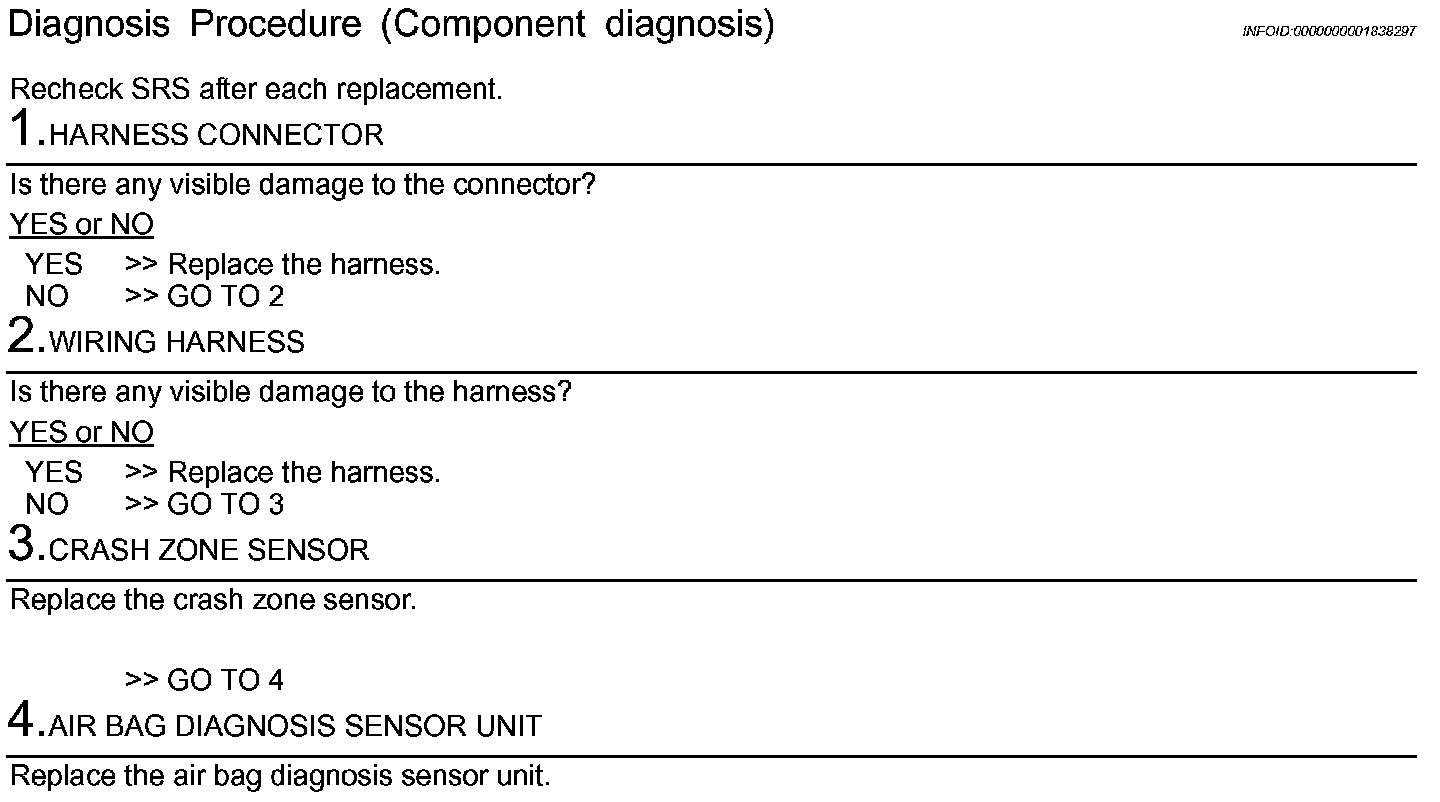

Diagnosis Procedure (Component diagnosis)
