B1065 - B1068, B1070 - B1073 PASSENGER AIRBAG MODULE

Description

DTC B1065 - B1068, B1070 - B1073 PASSENGER AIR BAG MODULE
The passenger air bag module is dual stage and wired to the air bag diagnosis sensor unit. The air bag diagnosis sensor unit will monitor for opens and shorts in detected lines to the passenger air bag module.

PART LOCATION
Refer to "SRS Component Parts Location".

DTC Logic

DTC DETECTION LOGIC

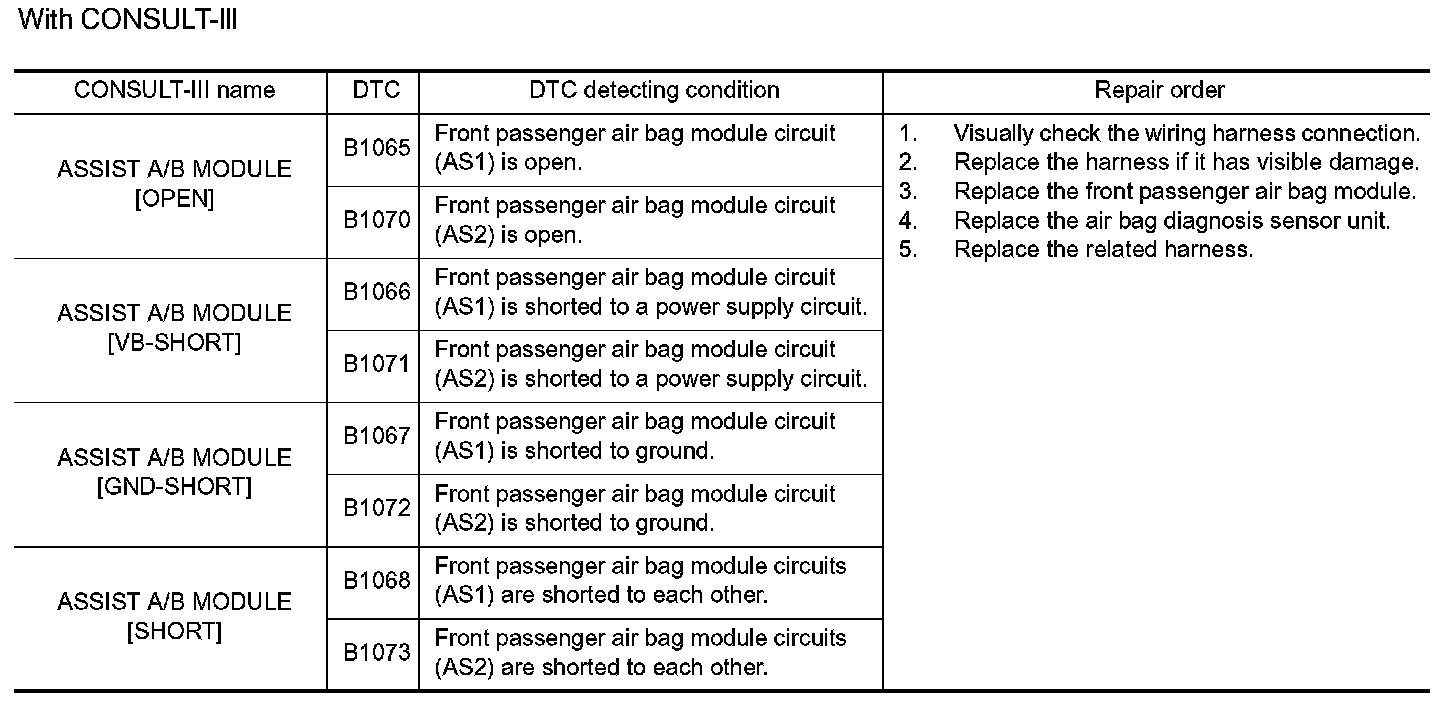

With CONSULT-III

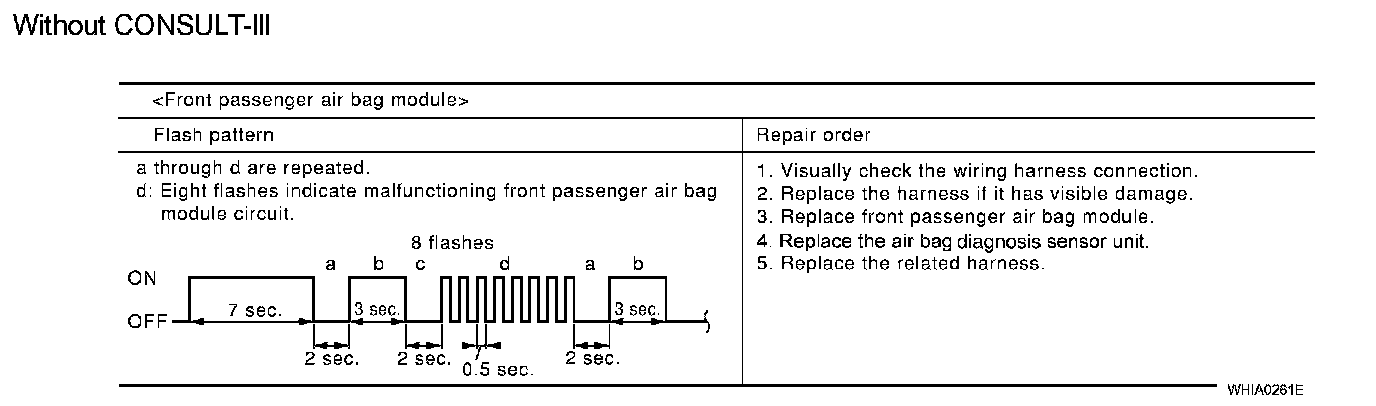

Without CONSULT-III

Step 1-2:

Step 2 (Continued)-3:

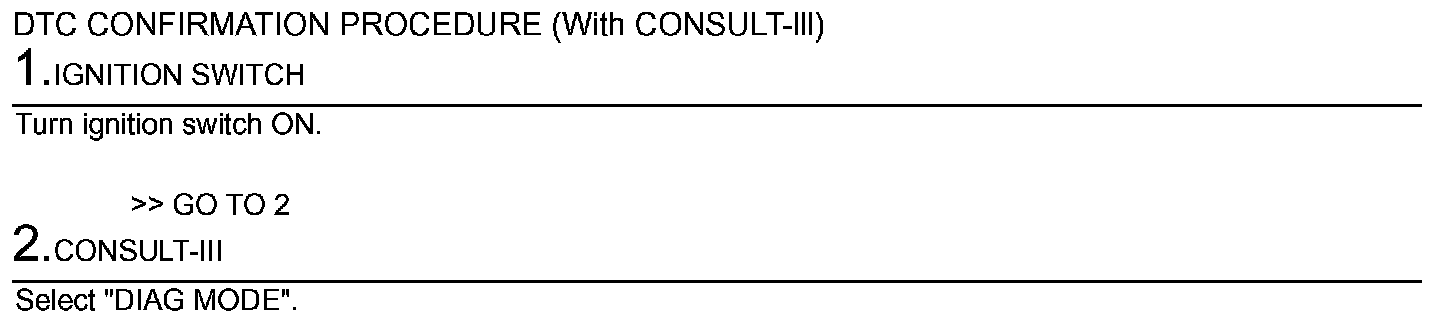

DTC CONFIRMATION PROCEDURE (With CONSULT-III)

Step 1-6:

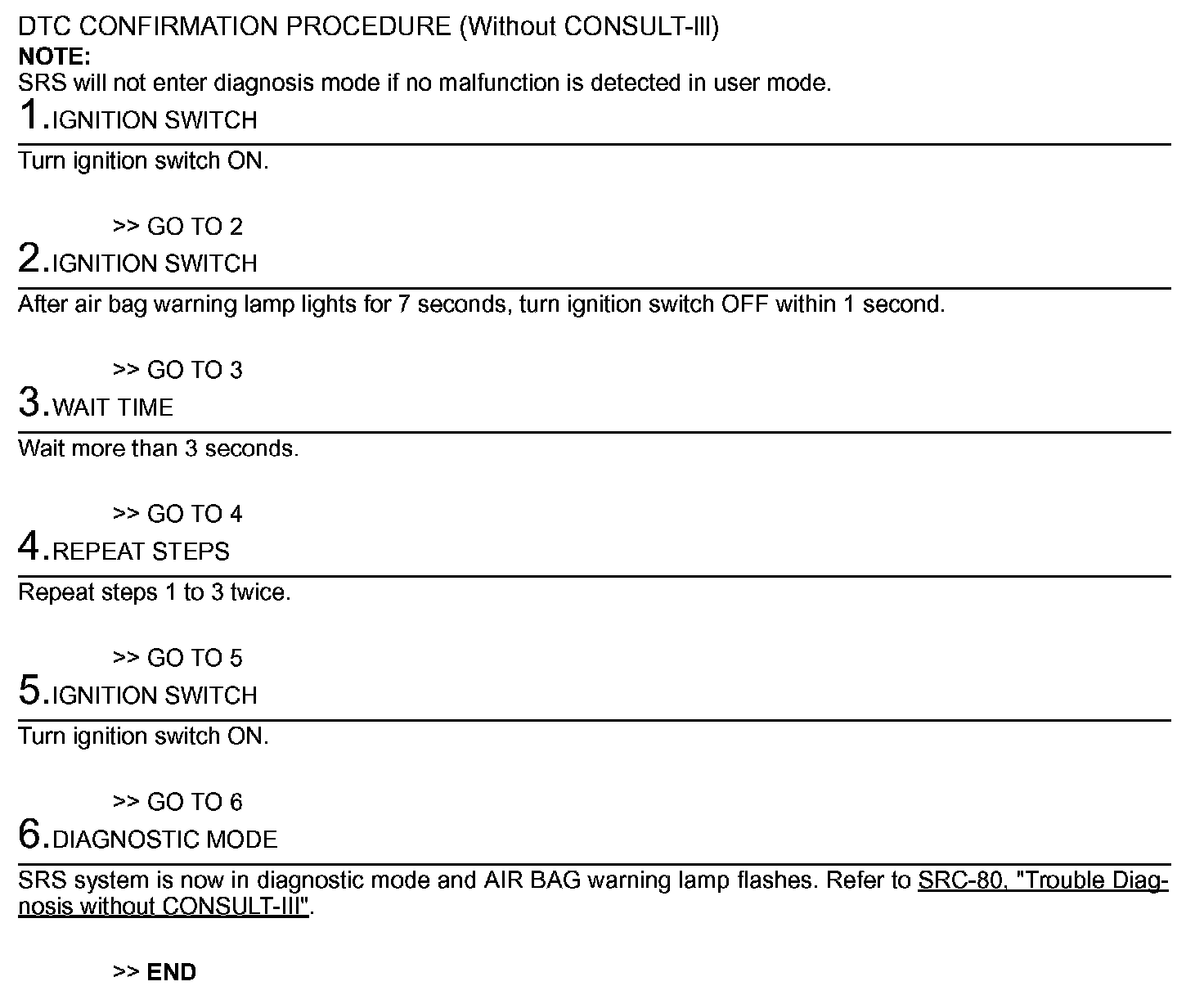

DTC CONFIRMATION PROCEDURE (Without CONSULT-III)

Step 1-2:

Step 2 (Continued)-5:

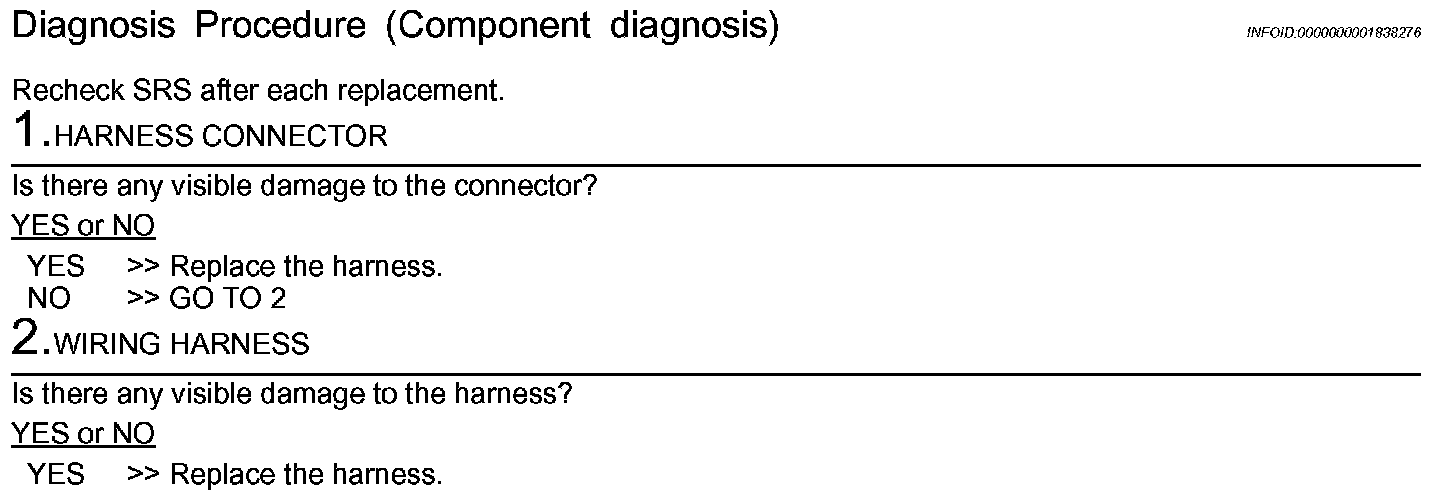

Diagnosis Procedure (Component diagnosis)
