B1113

B1113 - B1115 SATELLITE SENSOR RH

Description

DTC B1113 - B1115 SATELLITE SENSOR RH
The satellite sensor RH is wired to the air bag diagnosis sensor unit. The air bag diagnosis sensor unit will monitor the satellite sensor RH for internal failures and it's circuits for communication errors.

PART LOCATION
Refer to "SRS Component Parts Location".

DTC Logic

DTC DETECTION LOGIC

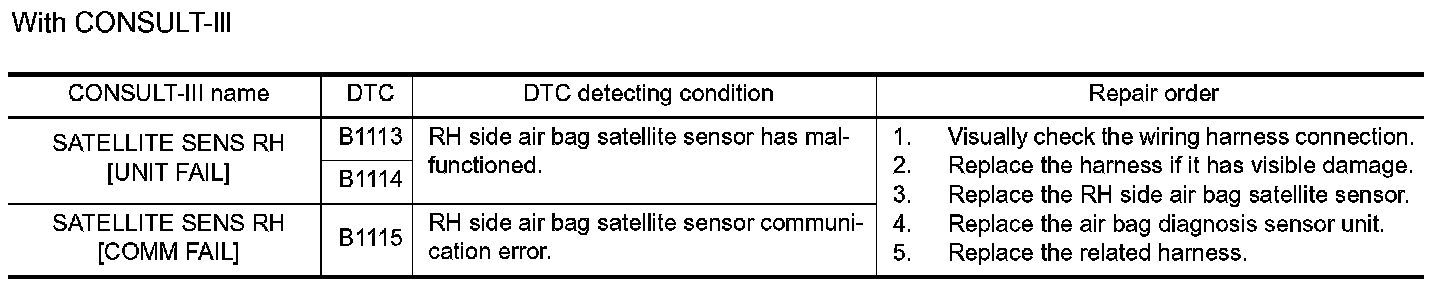

With CONSULT-III

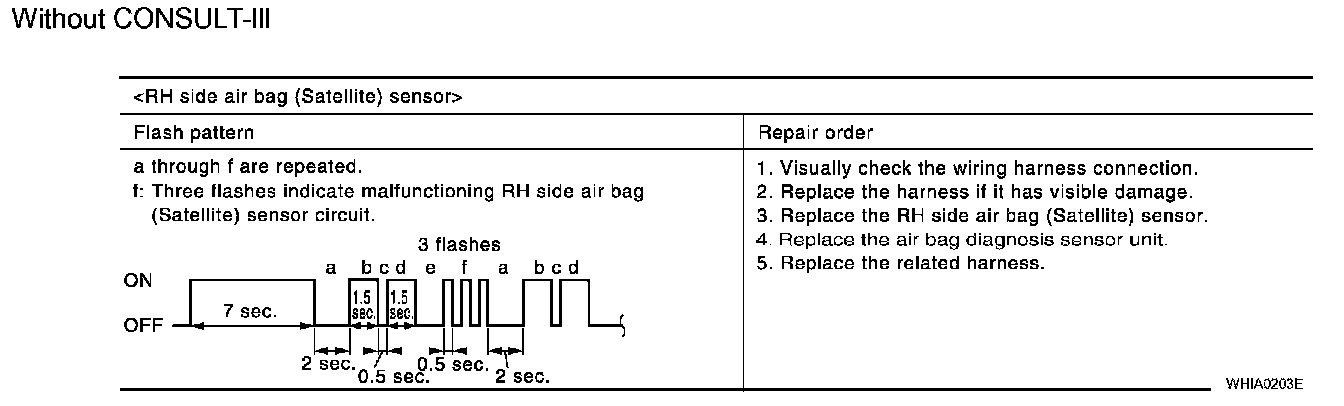

Without CONSULT-III

Step 1-3:

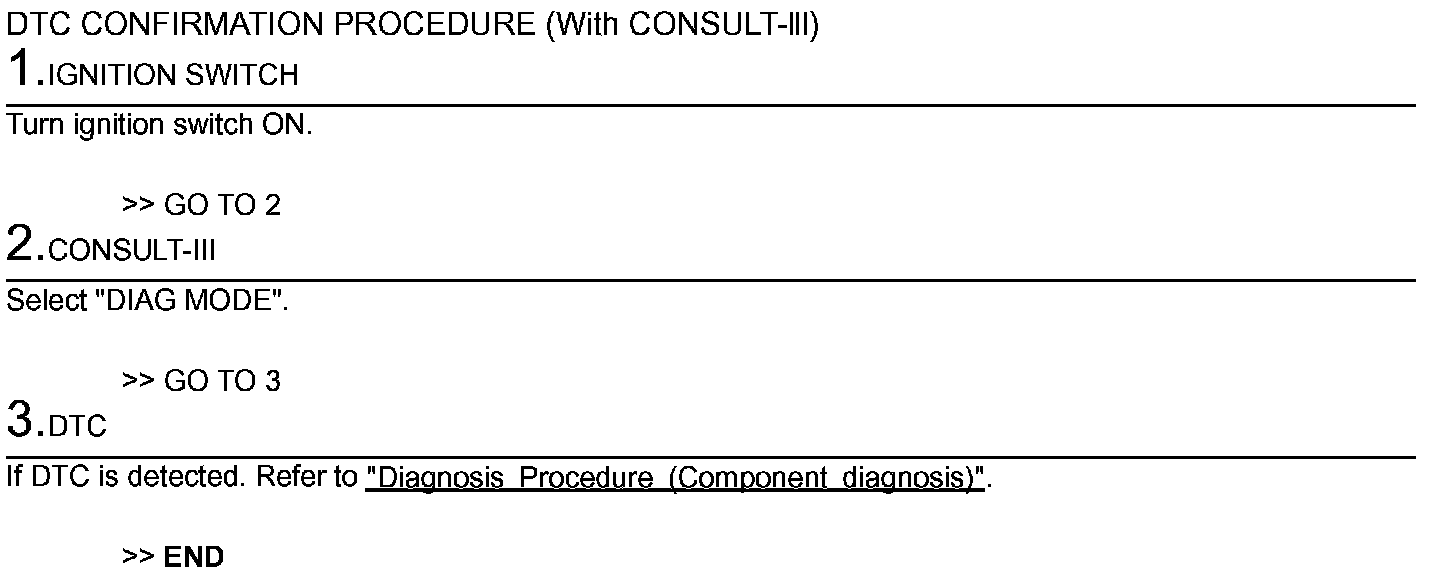

DTC CONFIRMATION PROCEDURE (With CONSULT-III)

Step 1-6:

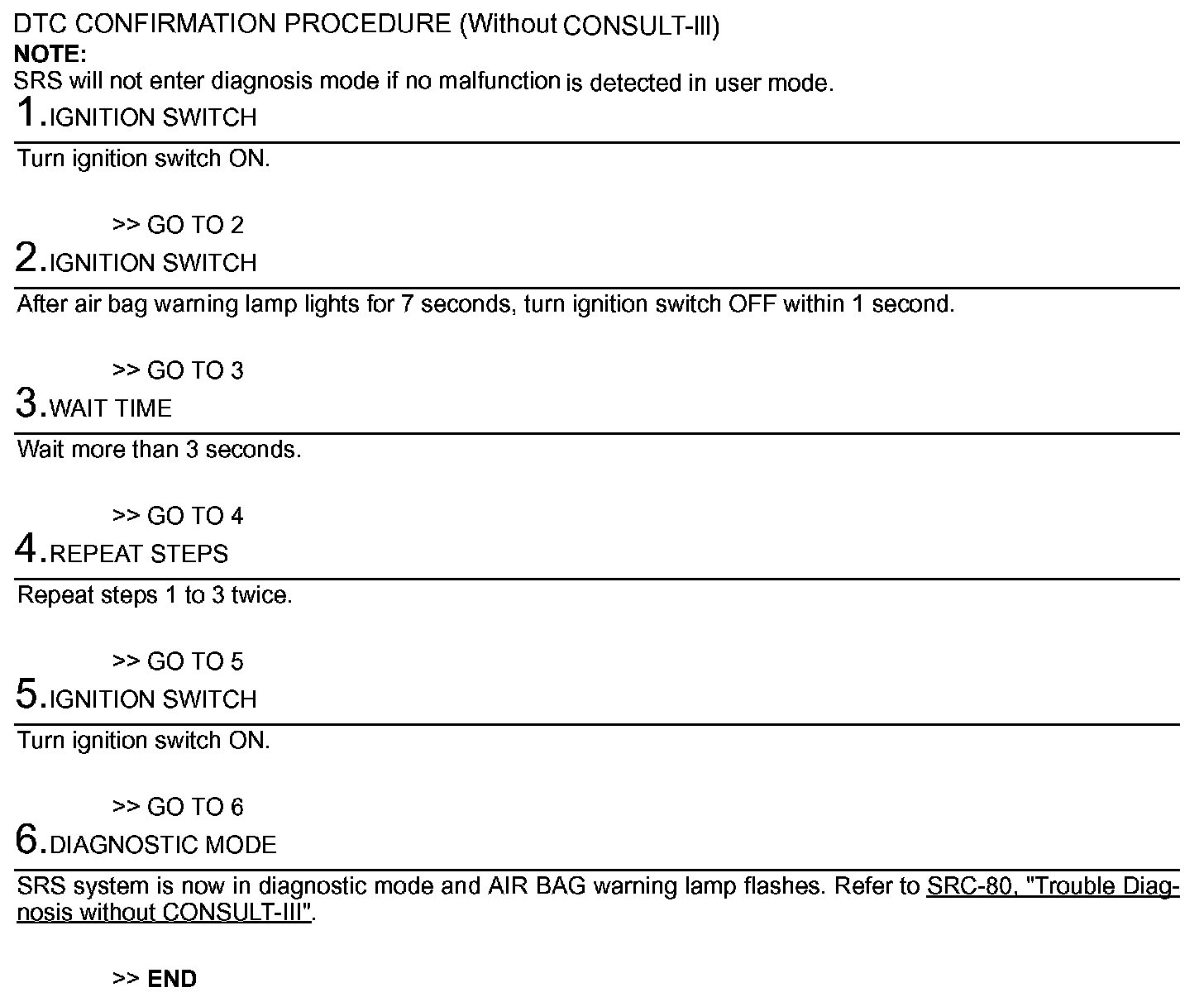

DTC CONFIRMATION PROCEDURE (Without CONSULT-III)

NOTE: SRS will not enter diagnosis mode if no malfunction is detected in user mode.




Step 4 (Continued)-5:

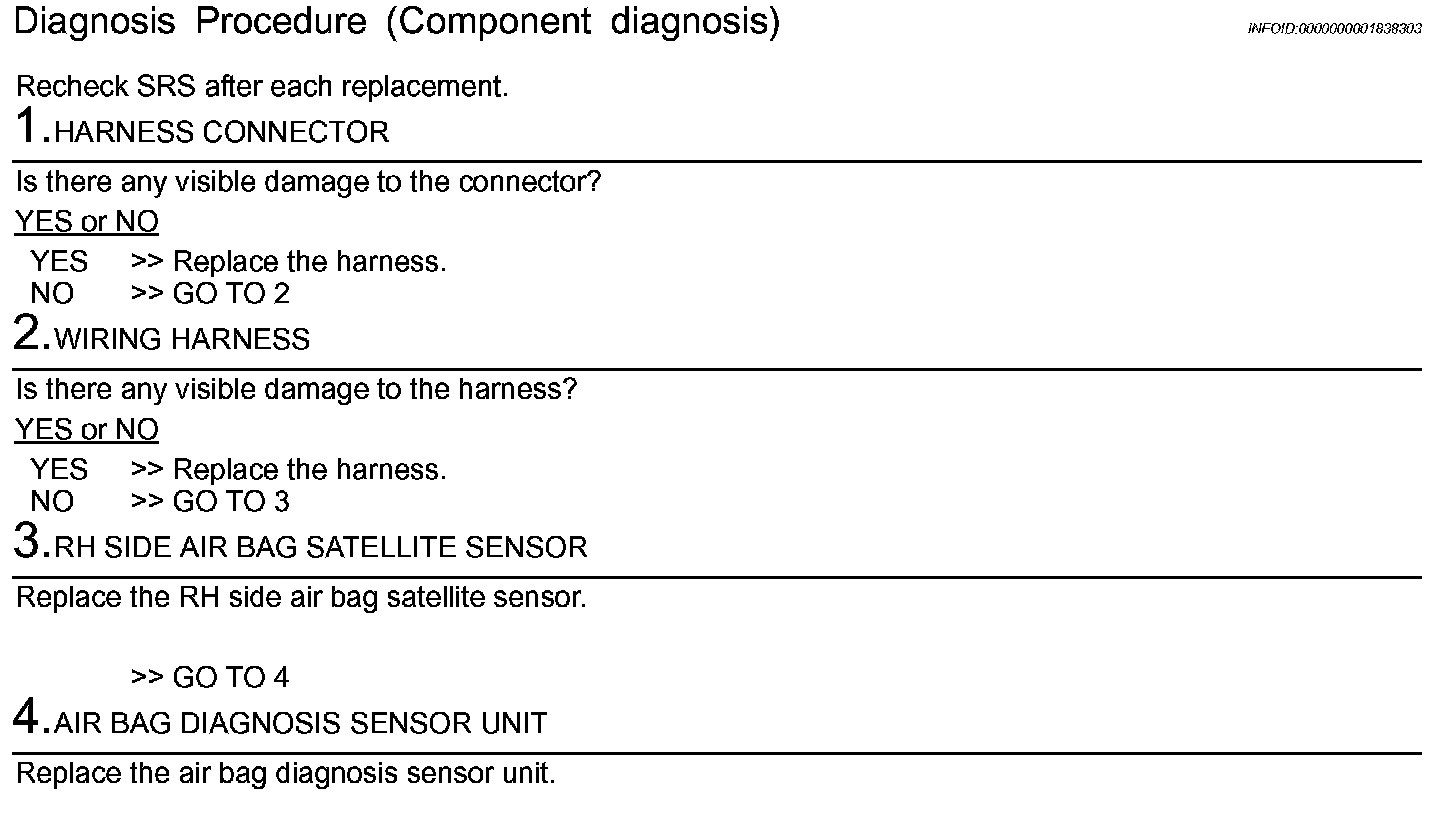

Diagnosis Procedure (Component diagnosis)
