B1129 - B1132 SIDE AIRBAG MODULE RHDescription
DTC B1129 - B1132 FRONT RH SIDE AIR BAG MODULE
The front RH side air bag module is wired to the air bag diagnosis sensor unit. The air bag diagnosis sensor unit will monitor for opens and shorts in detected lines to the front RH side air bag module.
PART LOCATION
Refer to "SRS Component Parts Location".
DTC Logic
DTC DETECTION LOGIC

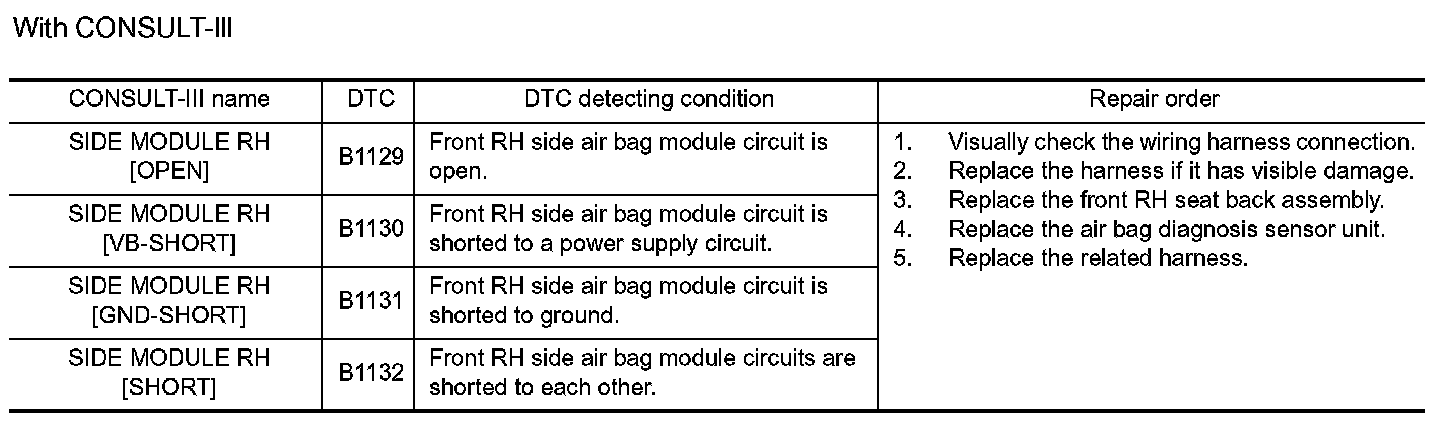

With CONSULT-III

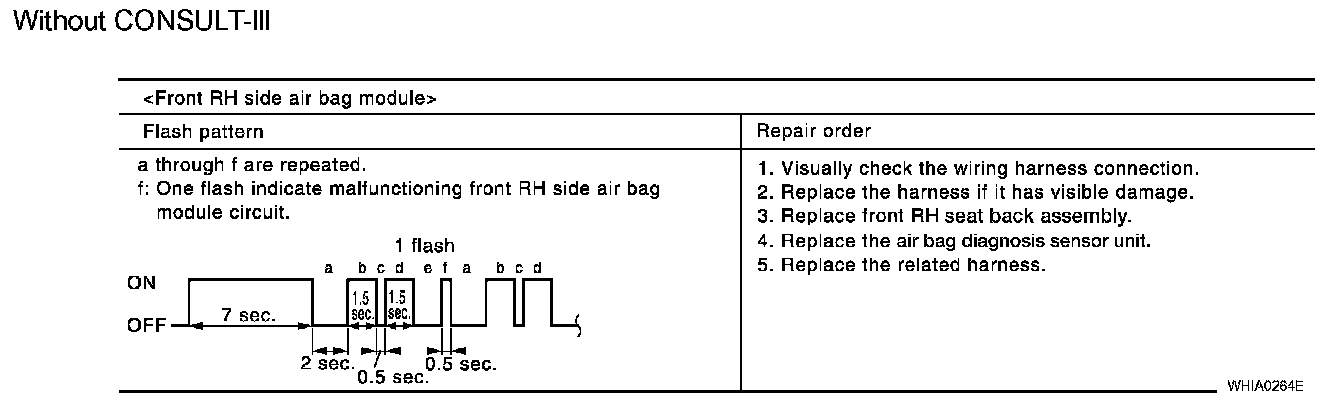

Without CONSULT-III
Step 1-3:

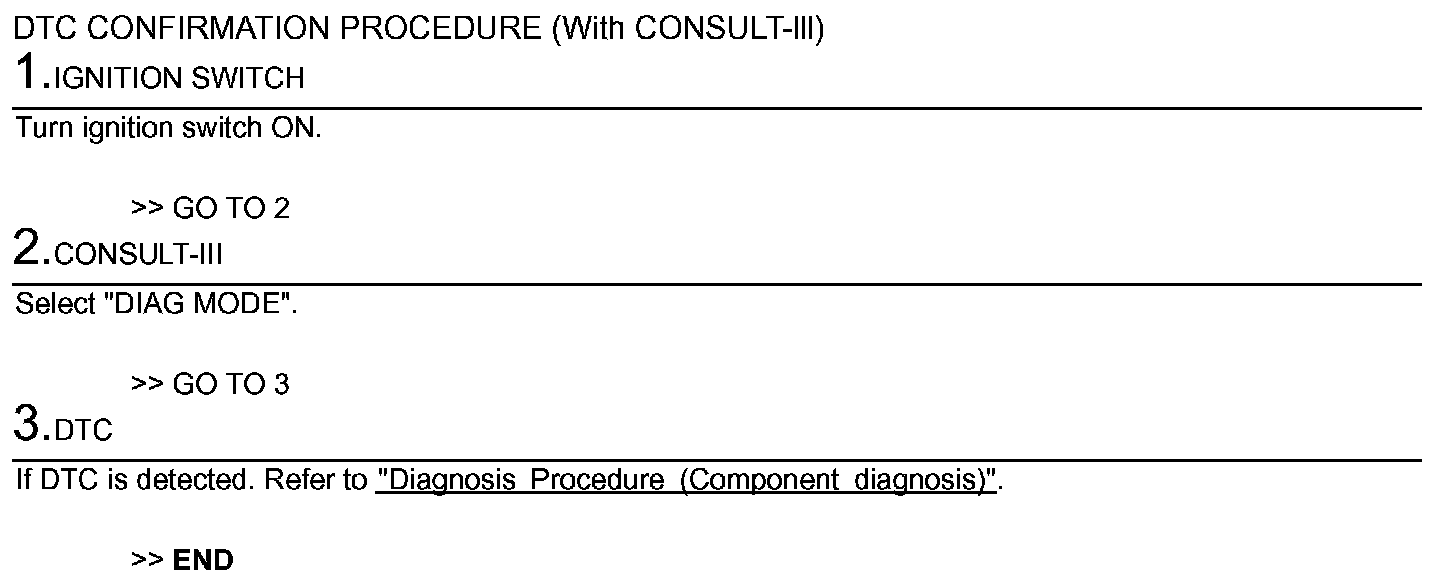

DTC CONFIRMATION PROCEDURE (With CONSULT-III)
Step 1-6:
DTC CONFIRMATION PROCEDURE (Without CONSULT-III)
Step 1-4:
Step 4 (Continued)-5:

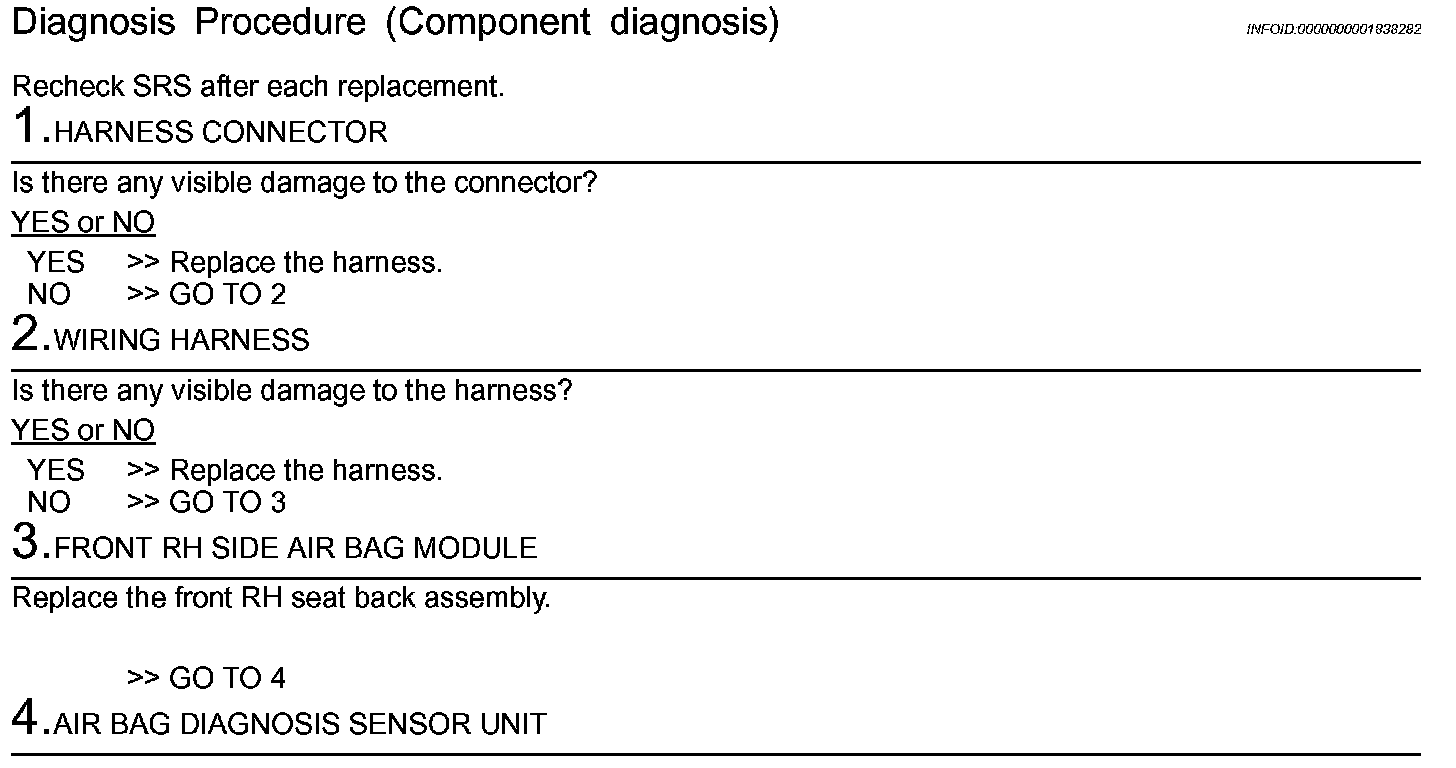

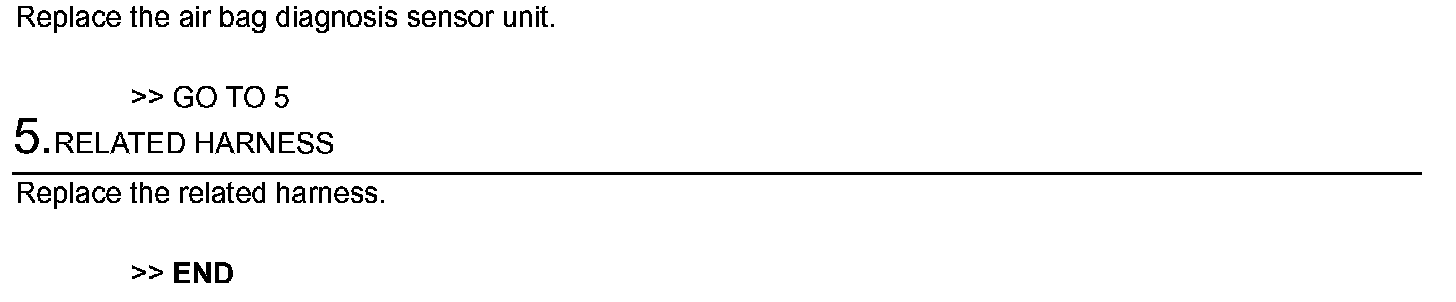

Diagnosis Procedure (Component diagnosis)
