Coupe
B210A STEERING LOCK CONDITION SWITCHDescription
There are 2 switches in the steering unit. IPDM E/R compares those 2 switches conditions to judge the present steering status and transmit the result to BCM via CAN communication.
DTC Logic

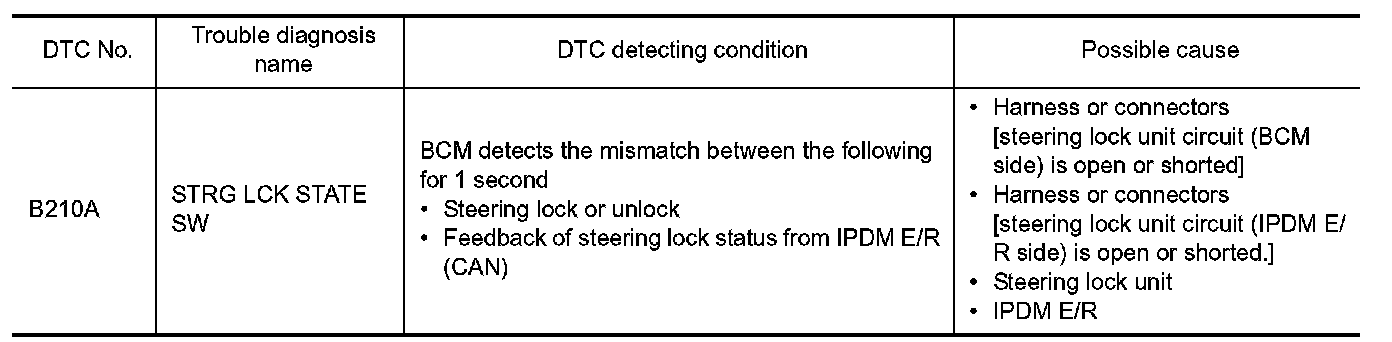

DTC DETECTION LOGIC
NOTE:
- If DTC B210A is displayed with DTC U1000, first perform the trouble diagnosis for DTC U1000. Refer to SEC-32, "DTC Logic". Coupe
- If DTC B210A is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010. Refer to SEC-33, "DTC Logic". Coupe

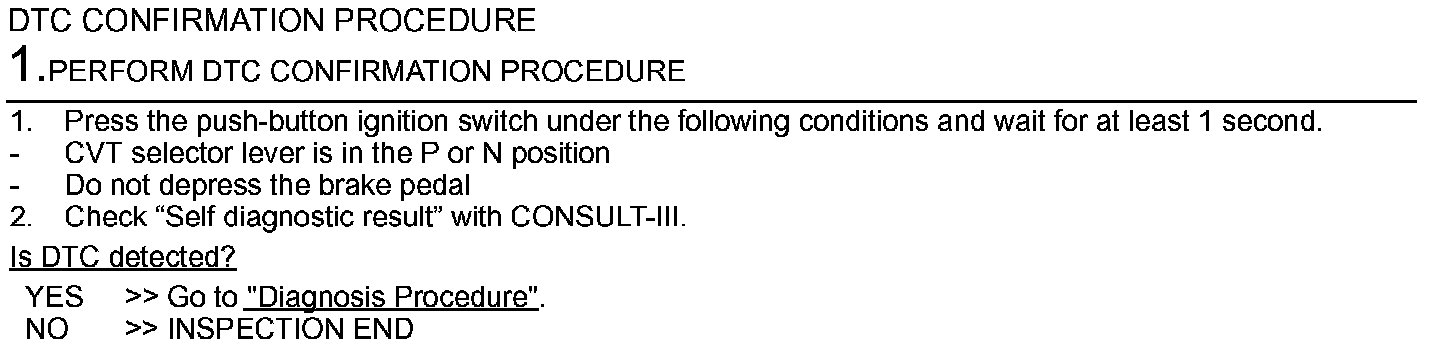

DTC CONFIRMATION PROCEDURE
Step 1:

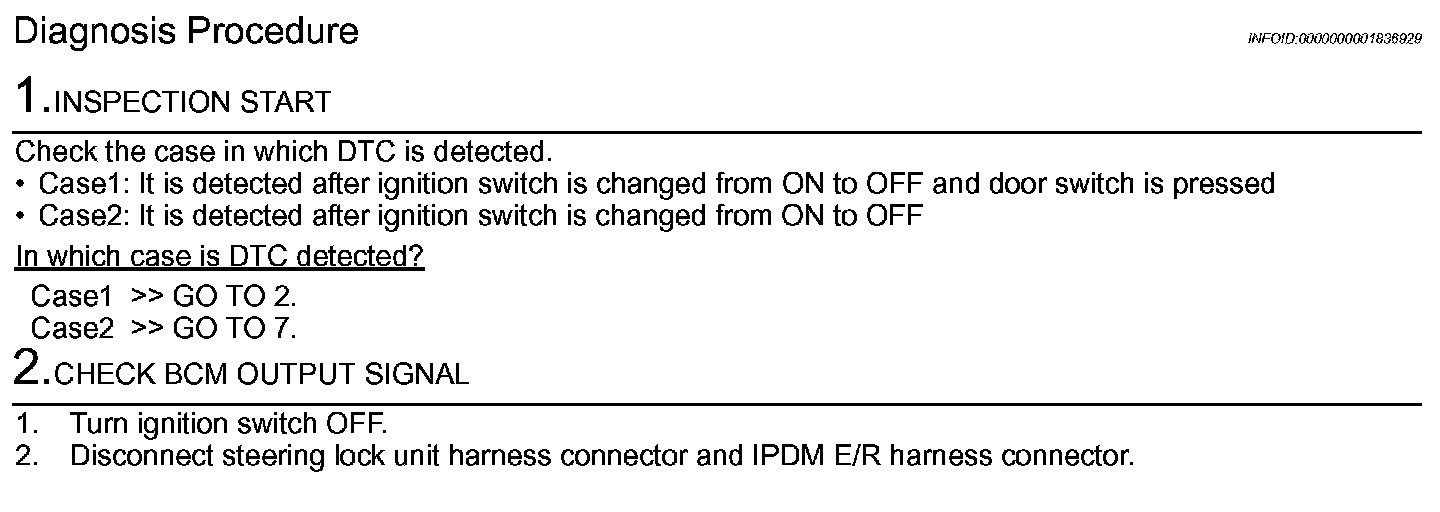

Diagnosis Procedure
Step 1-2:

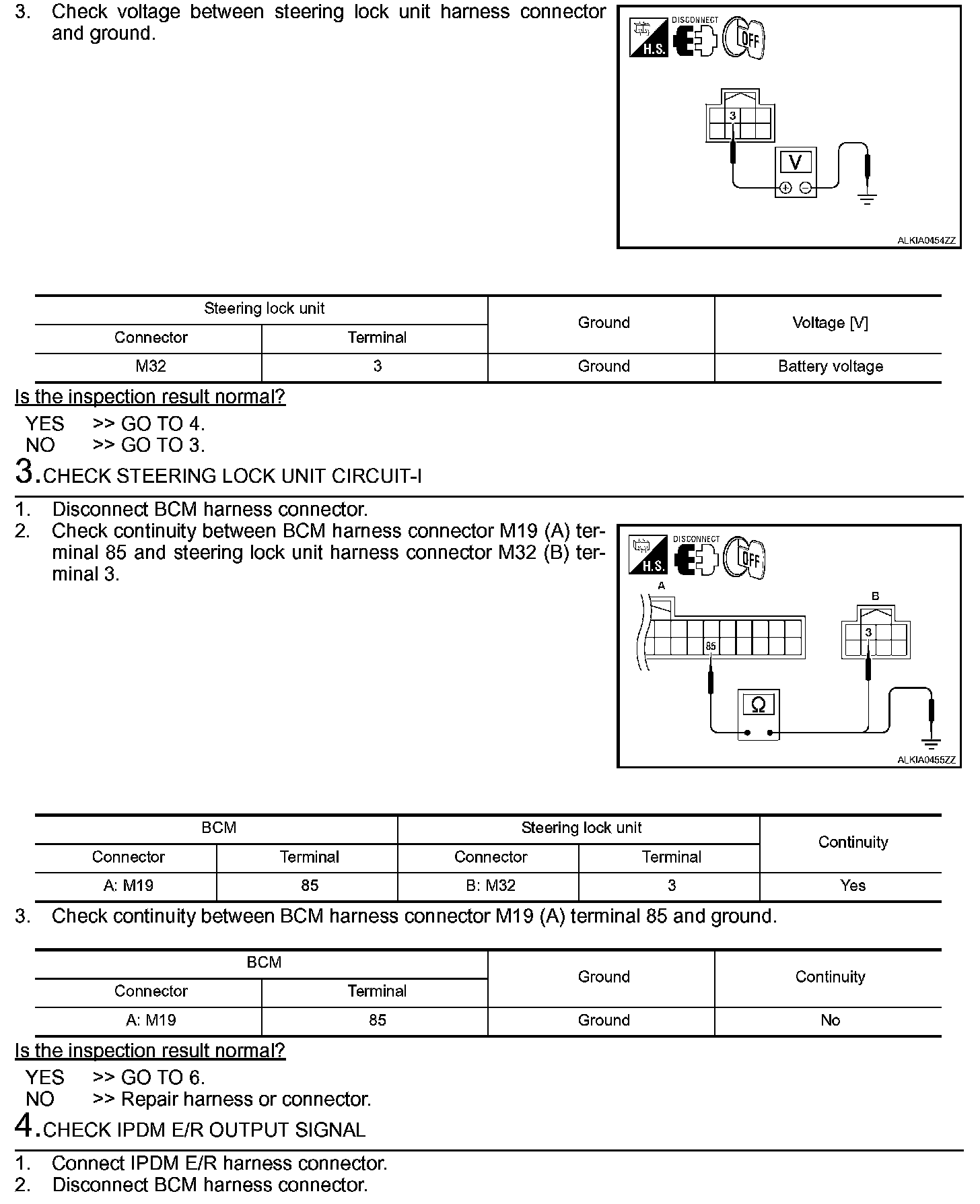

Step 2 (Continued)-4:

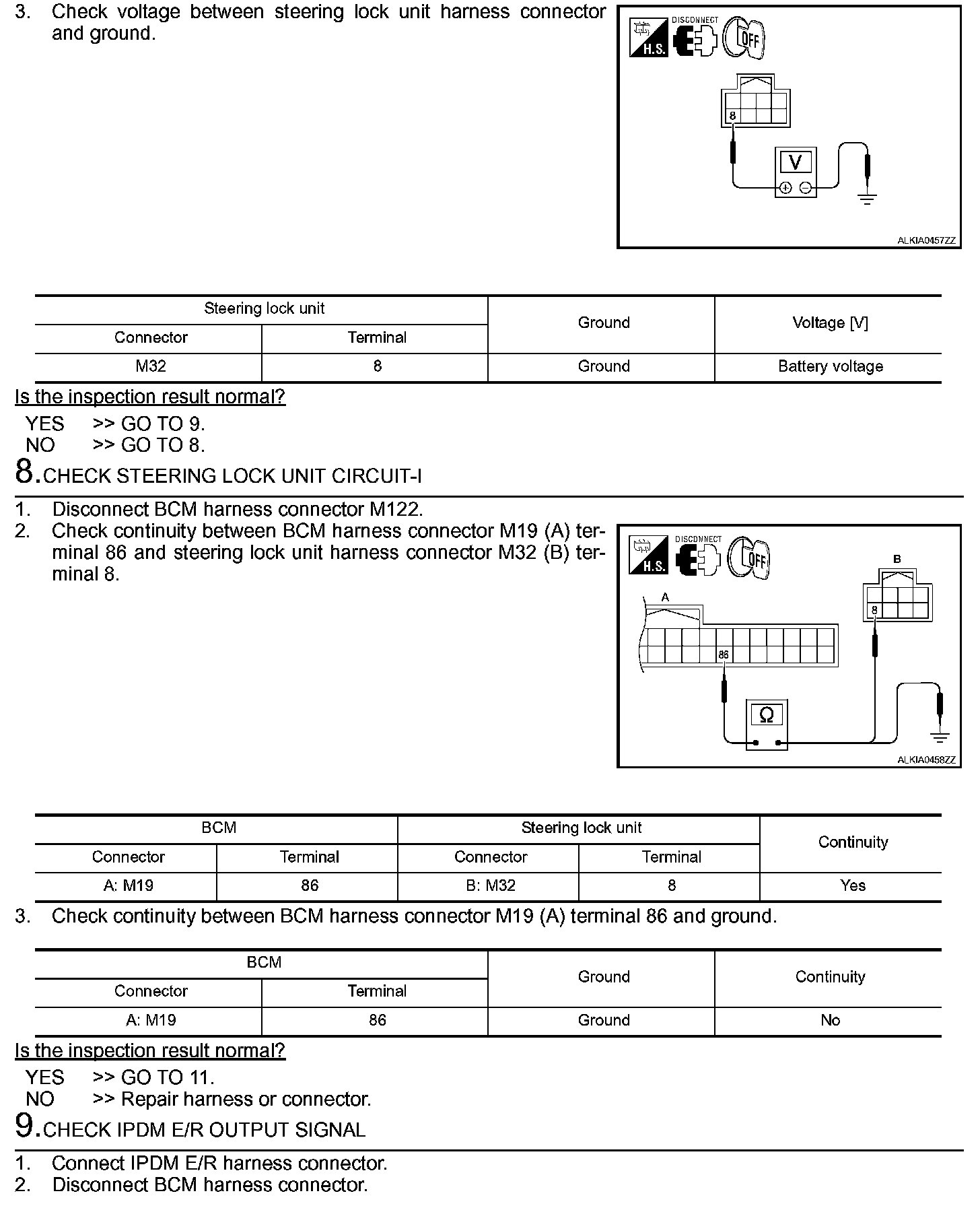

Step 4 (Continued)-7:

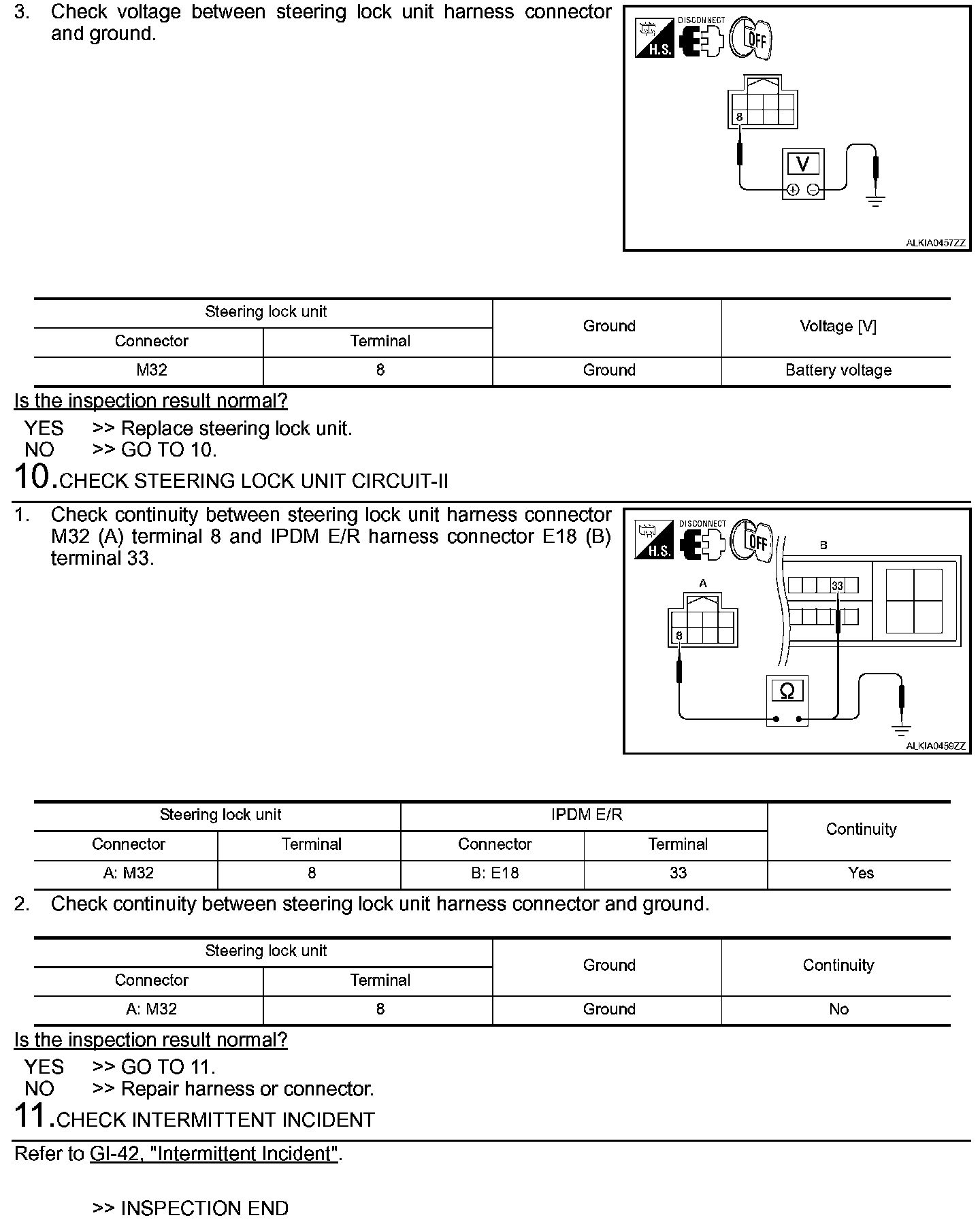

Step 7 (Continued)-9:
