Coupe

B210B STARTER CONTROL RELAY

Description
Starter control relay, integrated in IPDM E/R, permits the starter relay operation when in N or P position and the steering is locked or unlocked. It is installed in parallel with the starter relay.

DTC Logic

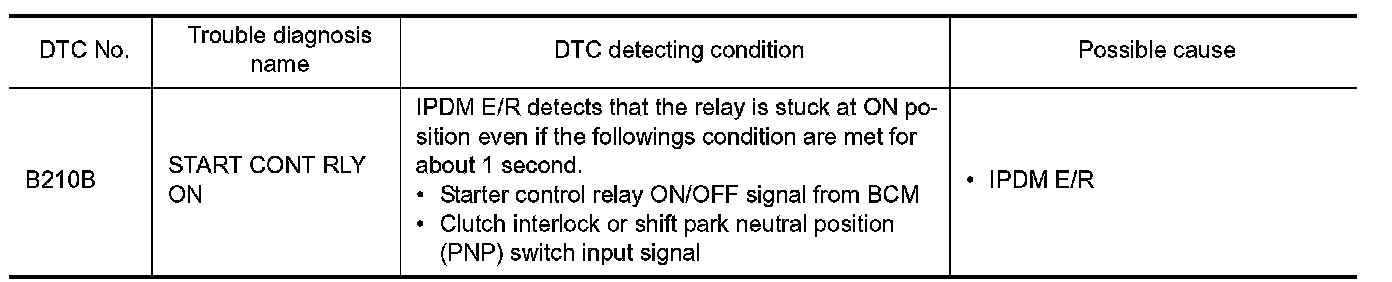

DTC DETECTION LOGIC

NOTE:
- If DTC B210B is displayed with DTC U1000, first perform the trouble diagnosis for DTC U1000. Refer to SEC-32, "DTC Logic". Coupe
- If DTC B210B is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010. Refer to SEC-33, "DTC Logic". Coupe

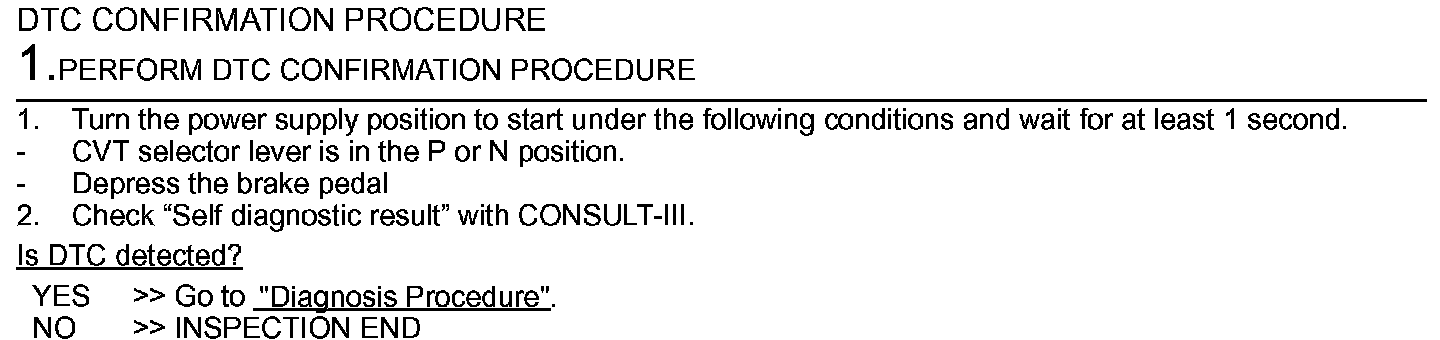

DTC CONFIRMATION PROCEDURE

Step 1:

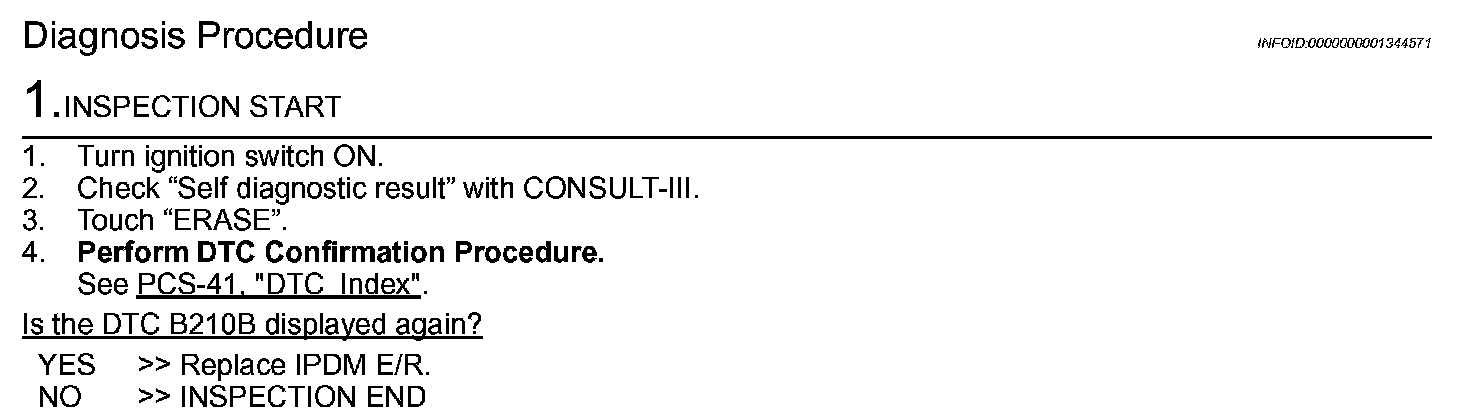

Diagnosis Procedure
