B210E STARTER RELAY

Description
Located in IPDM E/R, it runs the starter motor. The starter relay is turned ON by the BCM when the ignition switch is in START position. IPDM E/R transmits the starter relay ON signal to BCM via CAN communication.

DTC Logic

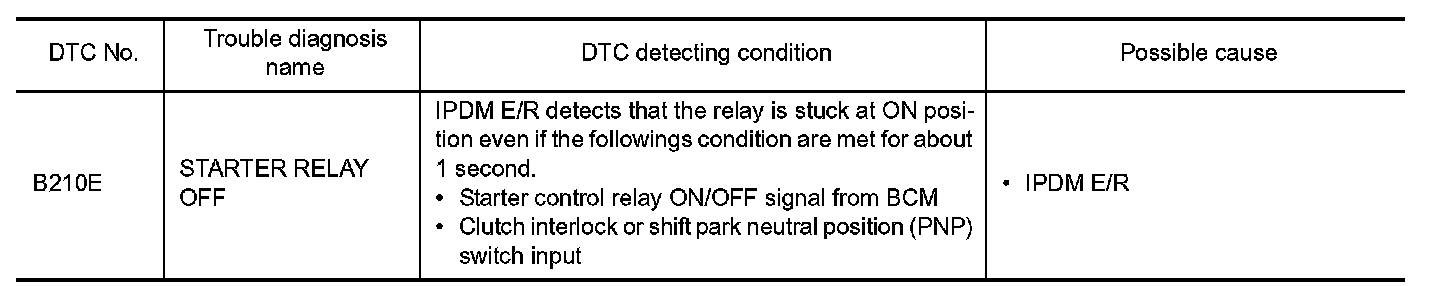

DTC DETECTION LOGIC

NOTE:
- If DTC B210E is displayed with DTC U1000, first perform the trouble diagnosis for DTC U1000. Refer to SEC-32, "DTC Logic". Coupe
- If DTC B210E is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010. Refer to SEC-33, "DTC Logic". Coupe






DTC CONFIRMATION PROCEDURE

Step 1:

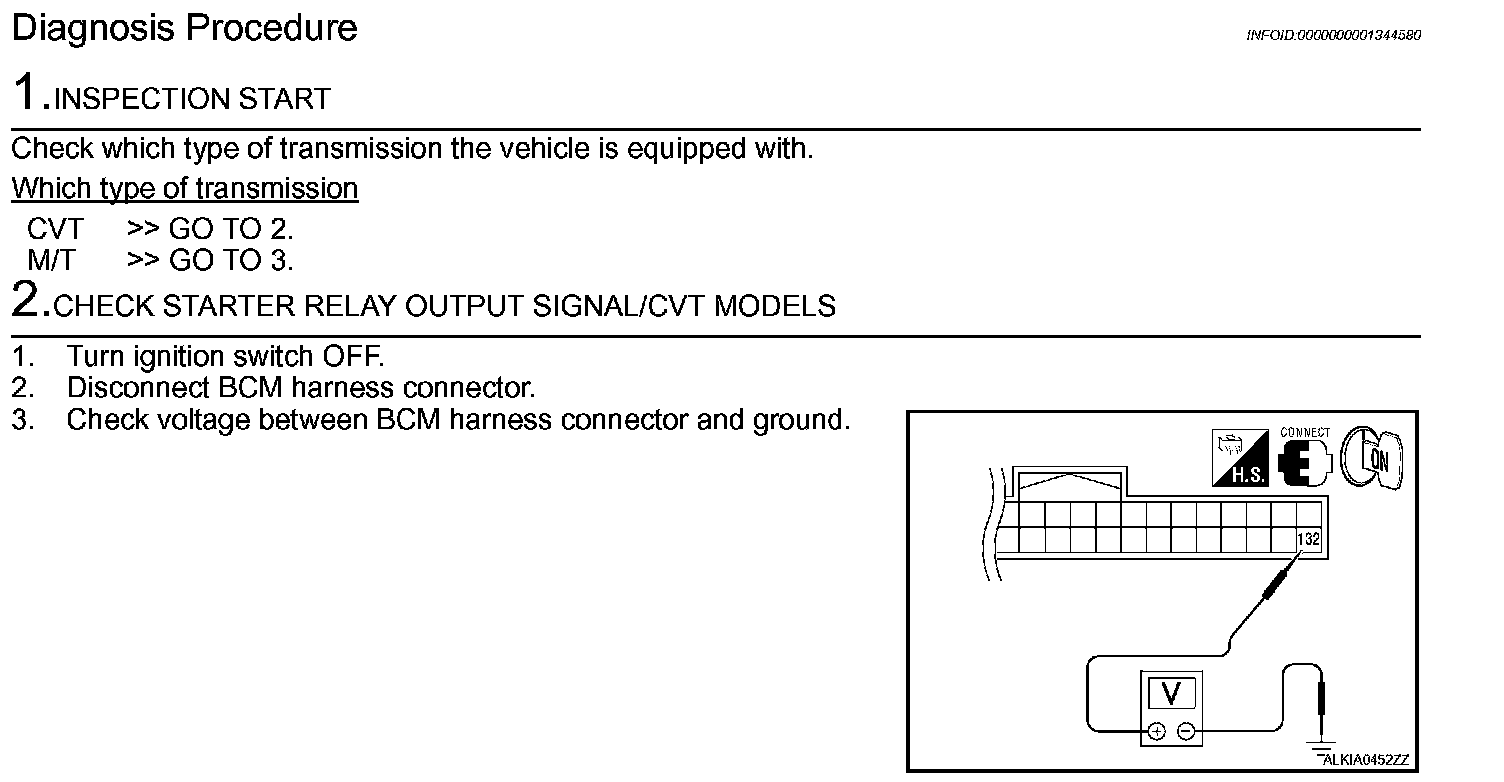

Diagnosis Procedure

Step 1-2:

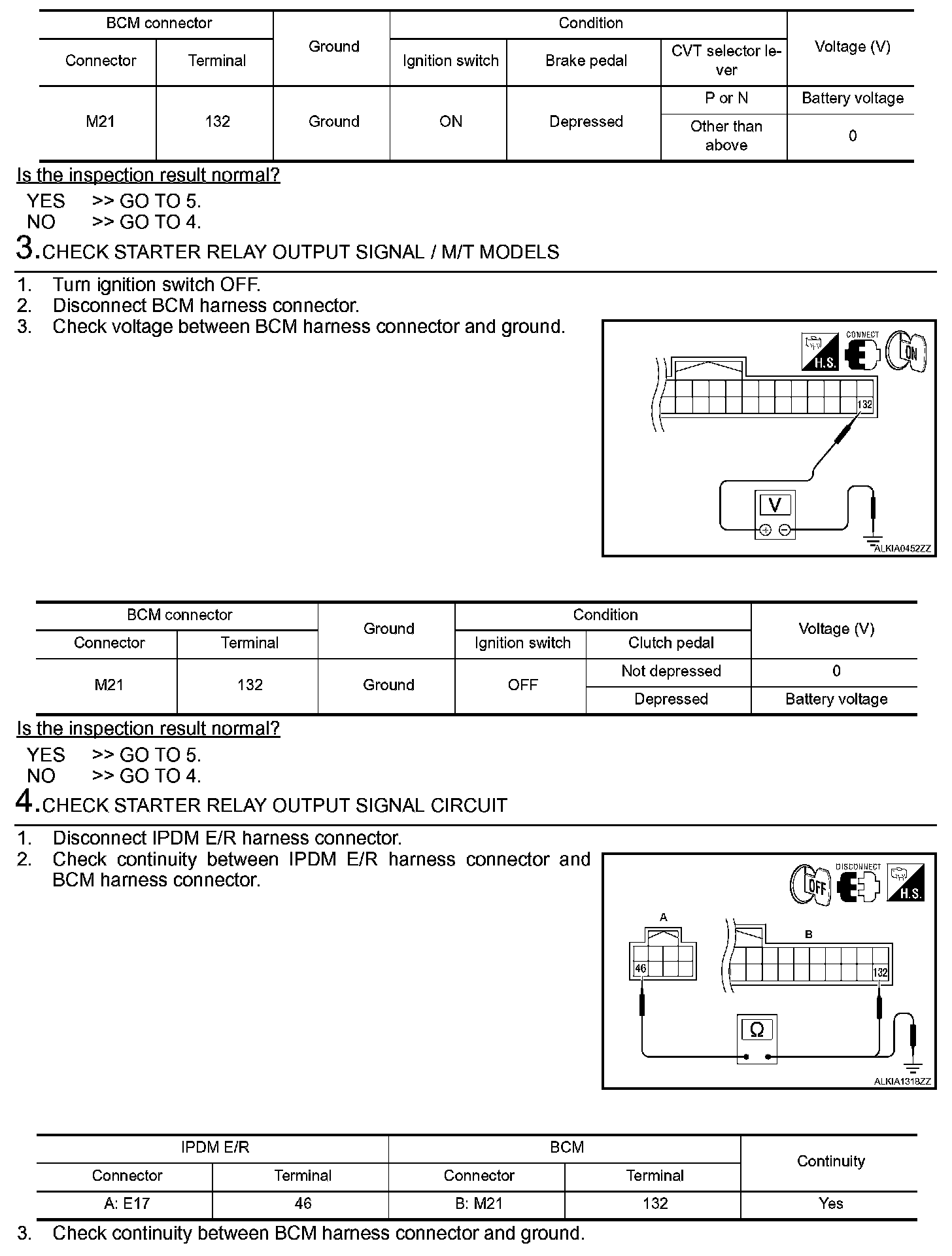

Step 2 (Continued)-4:

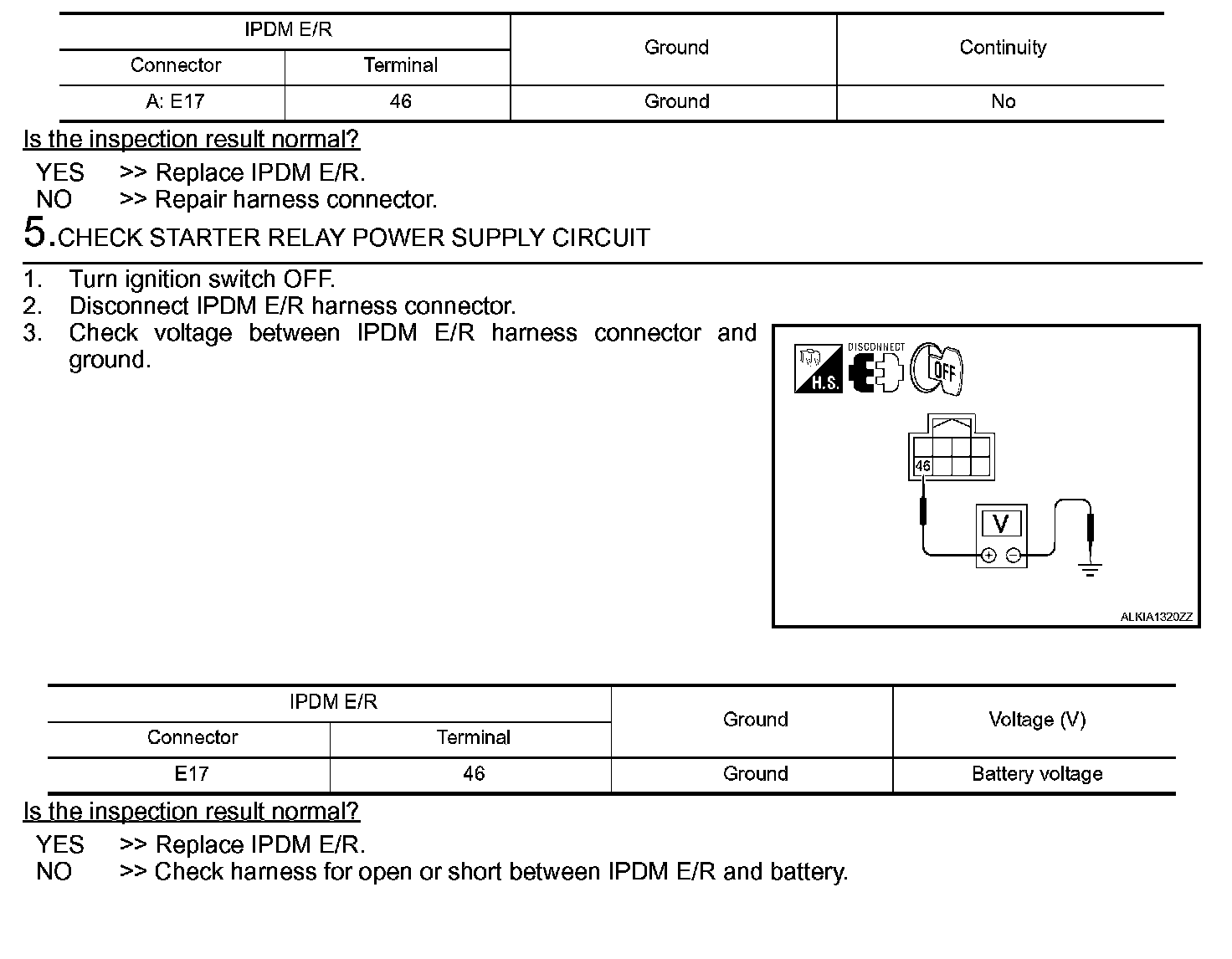

Step 4 (Continued)-5:
