Coupe
B2110 PNP/CLUTCH INTERLOCK SWITCHDescription
IPDM E/R confirms the shift position with the following signals.
- Park/neutral position (PNP) switch (A/T models)
- Clutch inter lock switch (M/T models)
- Shift position signal from BCM (CAN)
DTC Logic

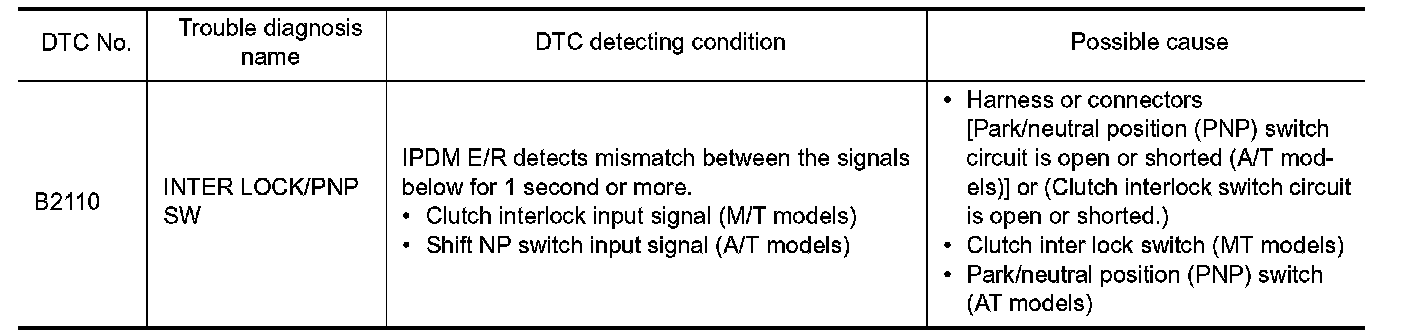

DTC DETECTION LOGIC
NOTE:
- If DTC B2110 is displayed with DTC U1000, first perform the trouble diagnosis for DTC U1000. Refer to SEC-32, "DTC Logic". Coupe
- If DTC B2110 is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010. Refer to SEC-33, "DTC Logic". Coupe

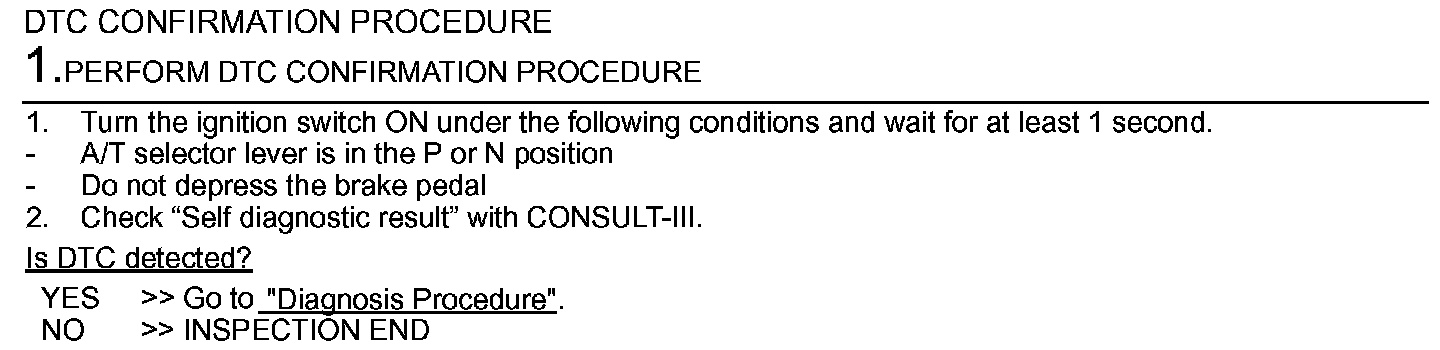

DTC CONFIRMATION PROCEDURE
Step 1:

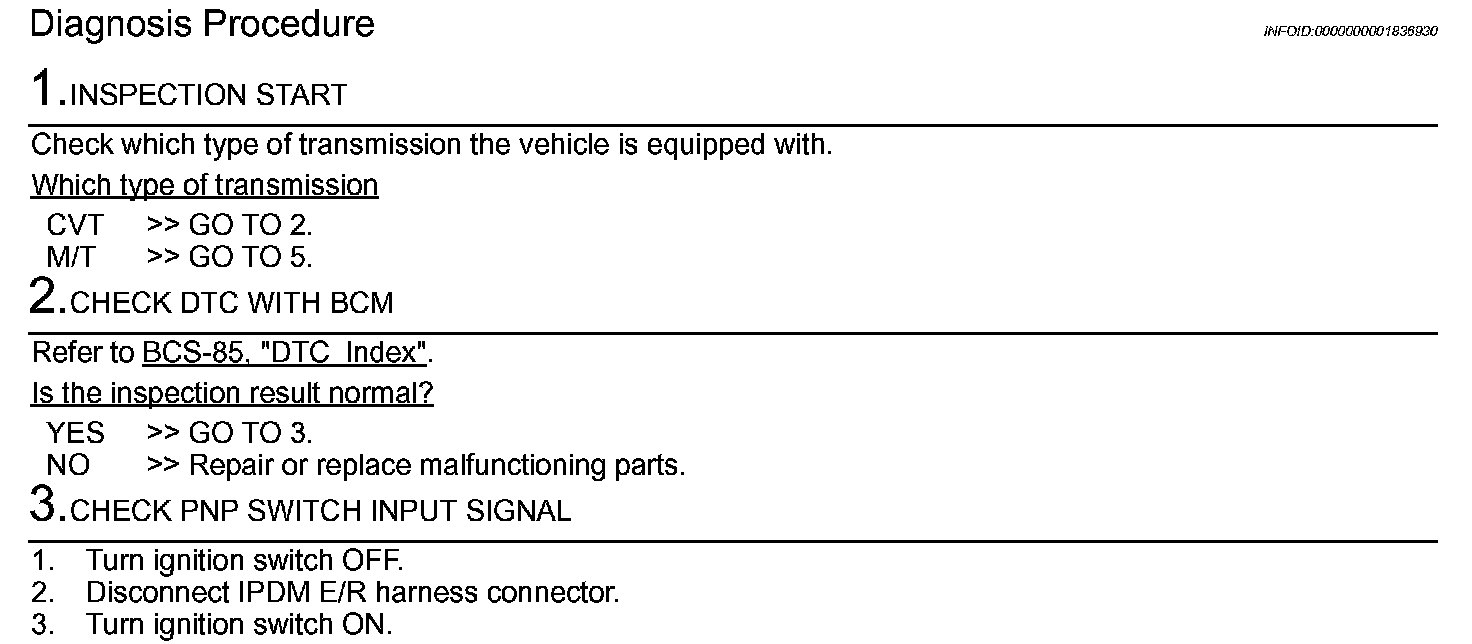

Diagnosis Procedure

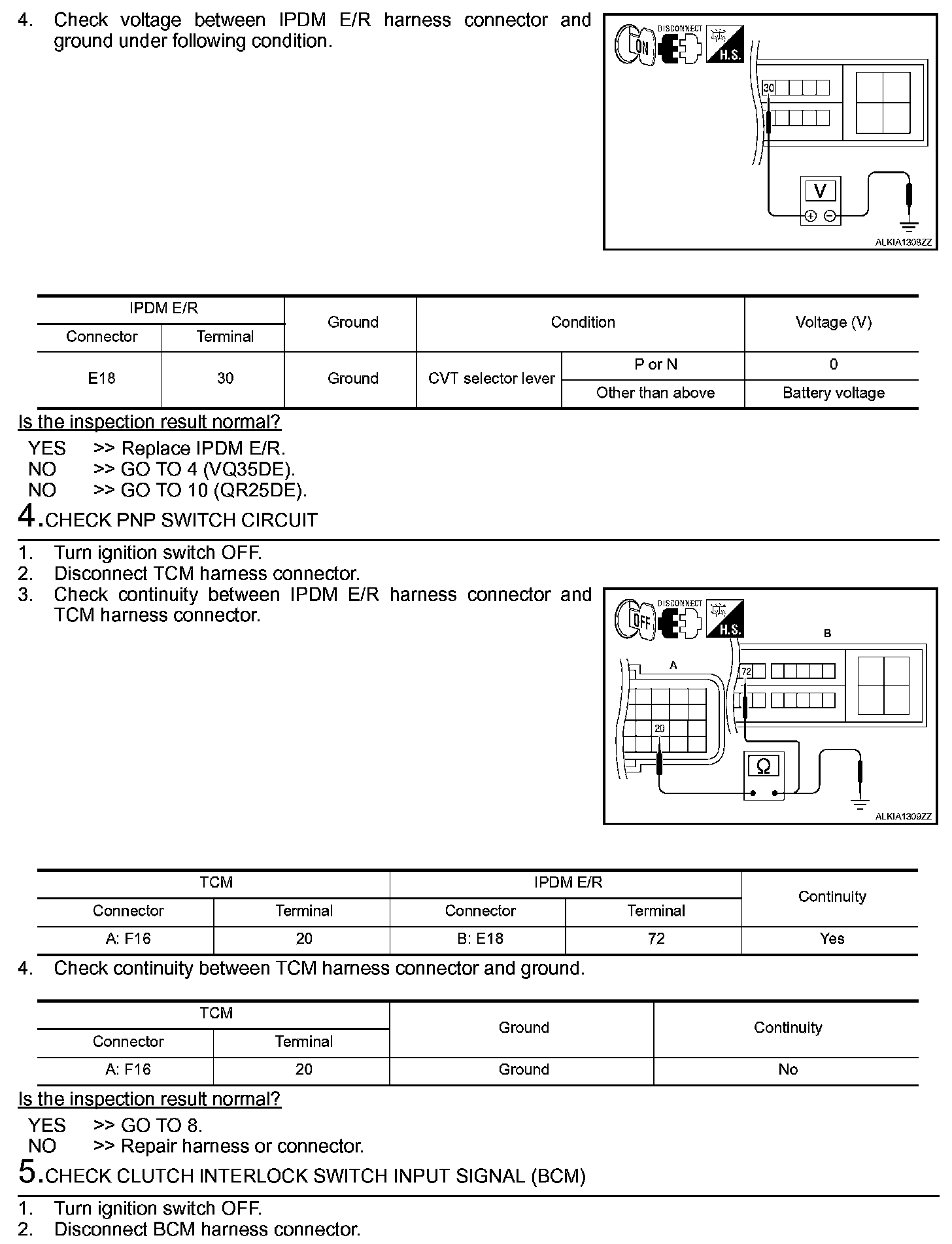

Step 1-3:
Step 3 (Continued)-5:

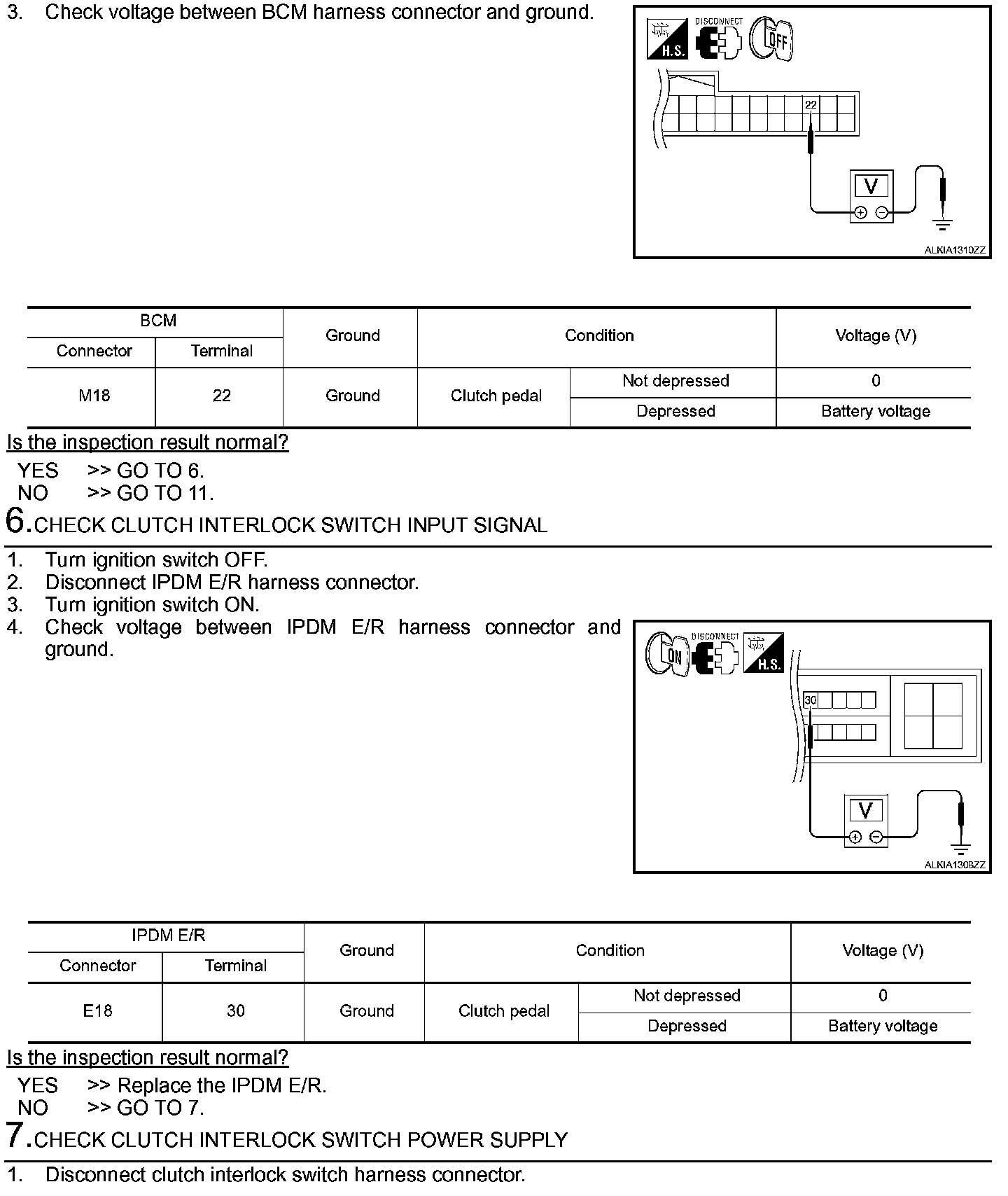

Step 5 (Continued)-7:

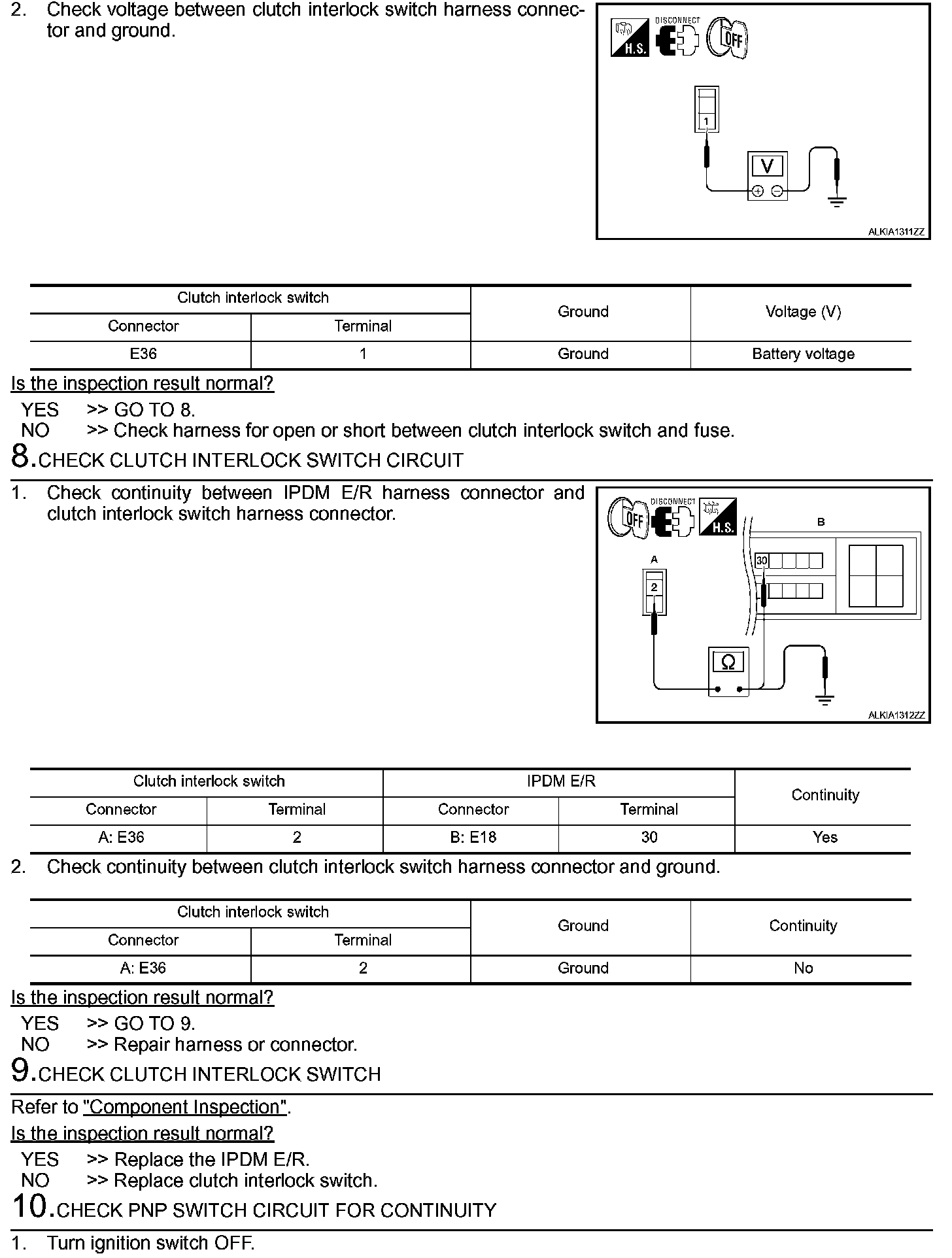

Step 7 (Continued)-10:

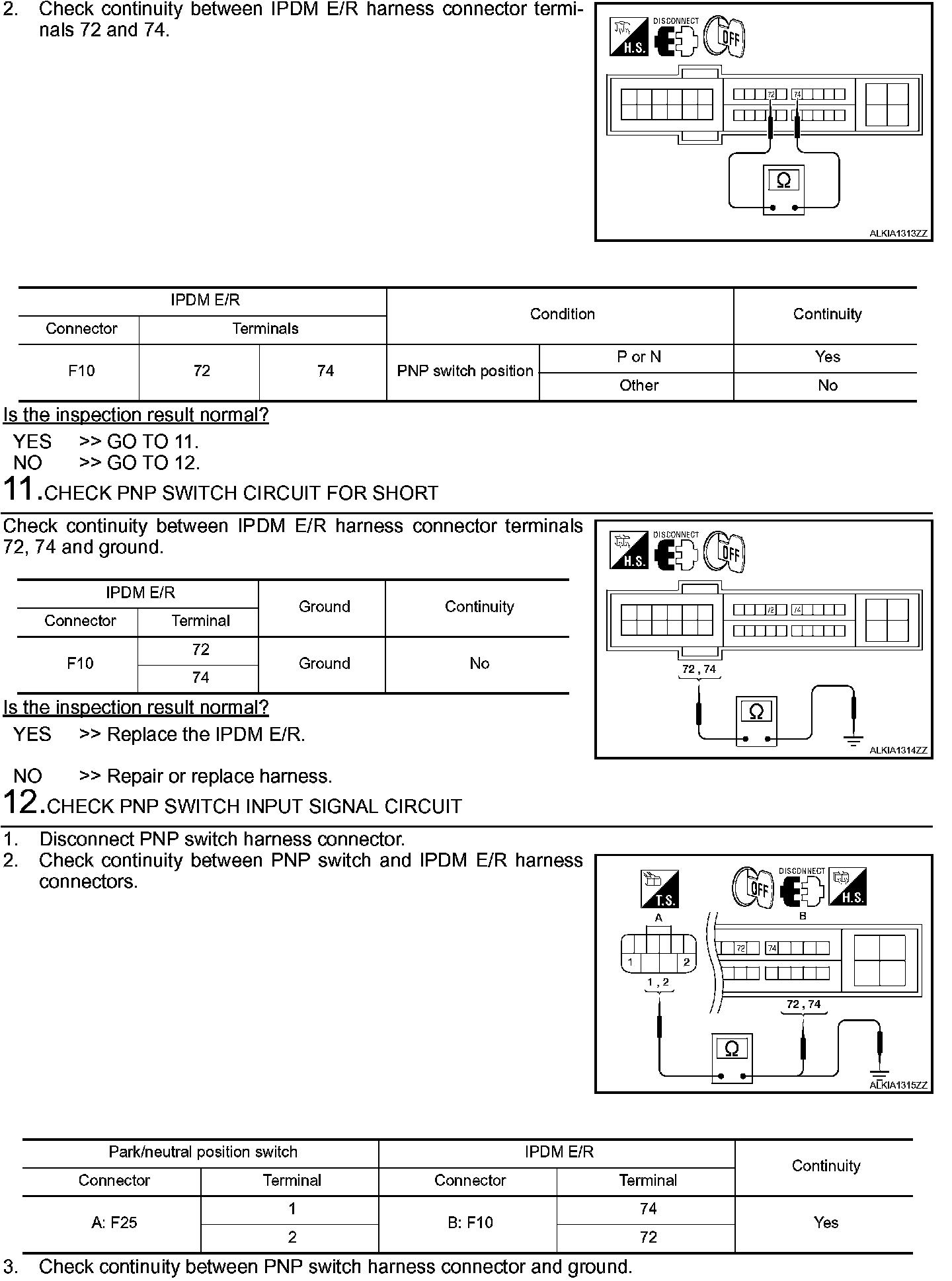

Step 10 (Continued)-12:

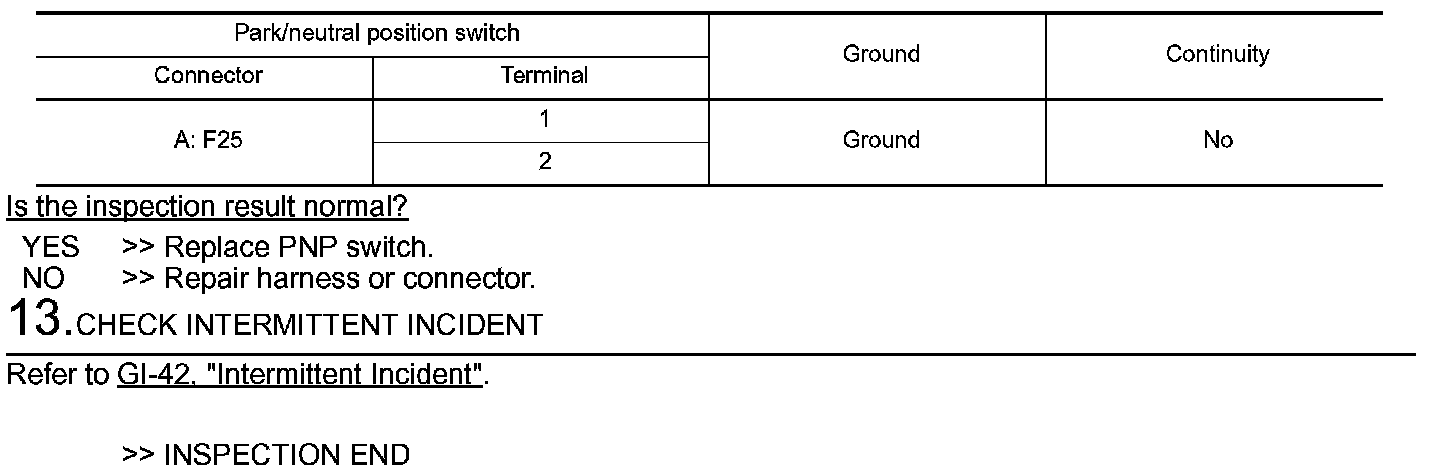

Step 12 (Continued)-13:

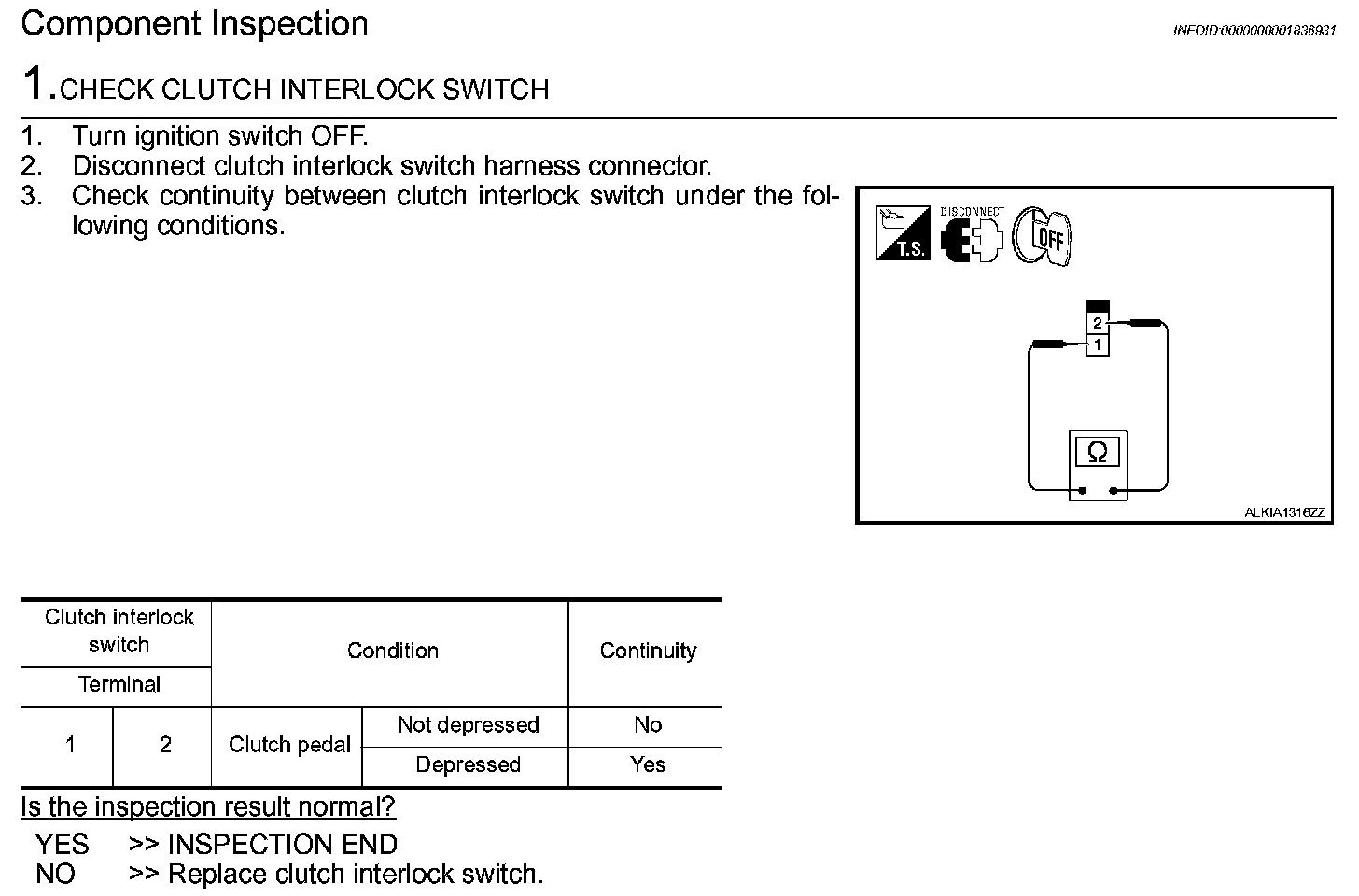

Component Inspection
Step 1:
