B2205
DTC B2205 VEHICLE SPEED CIRCUITDescription
The ABS actuator and electric unit (control unit) provides a vehicle speed signal to the combination meter via CAN communication lines.

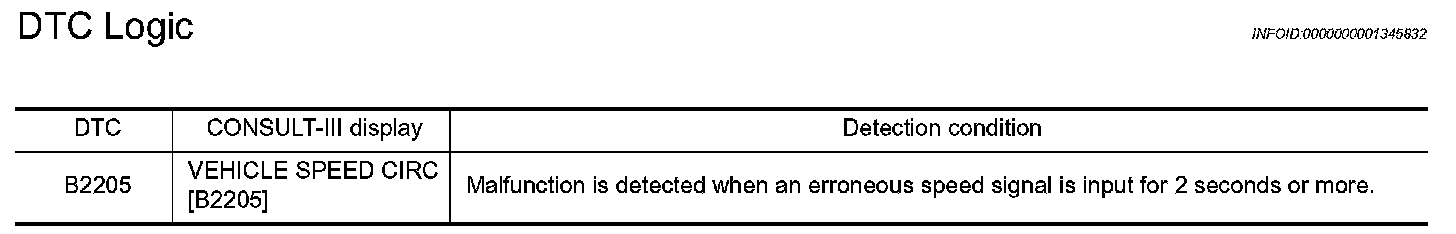

DTC Logic
Step 1:

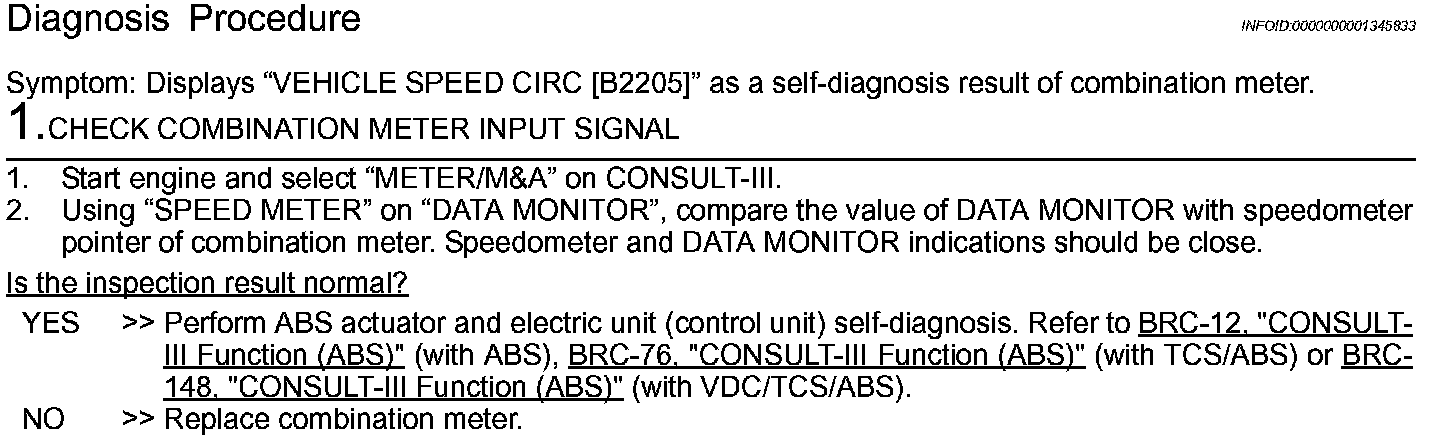

Diagnosis Procedure
Description
The ABS actuator and electric unit (control unit) provides a vehicle speed signal to the combination meter via CAN communication lines.
DTC Logic
Diagnosis Procedure
