B2562

B2562 LOW VOLTAGE

DTC Logic

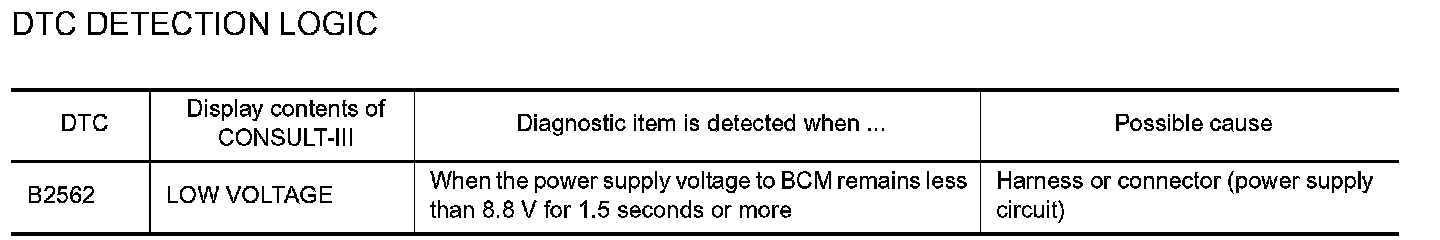

DTC DETECTION LOGIC

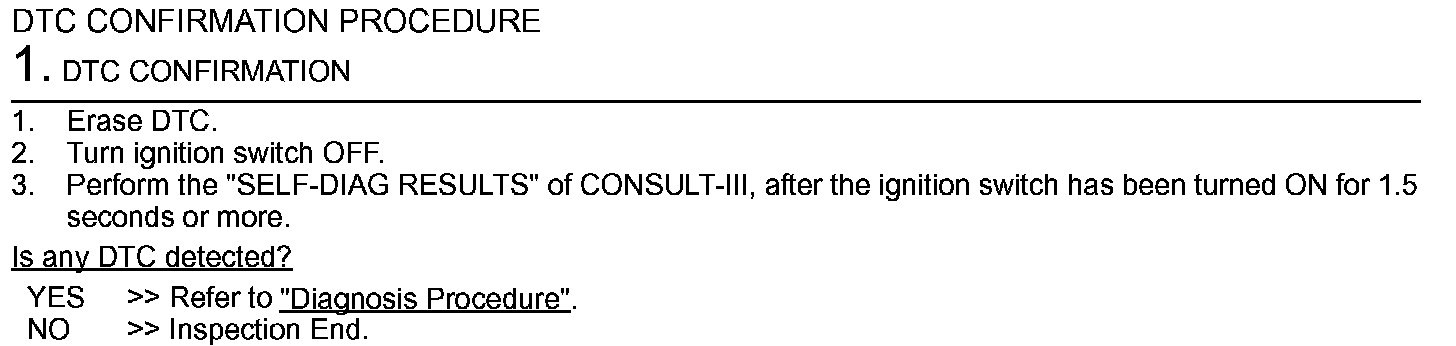

DTC CONFIRMATION PROCEDURE

Step 1:

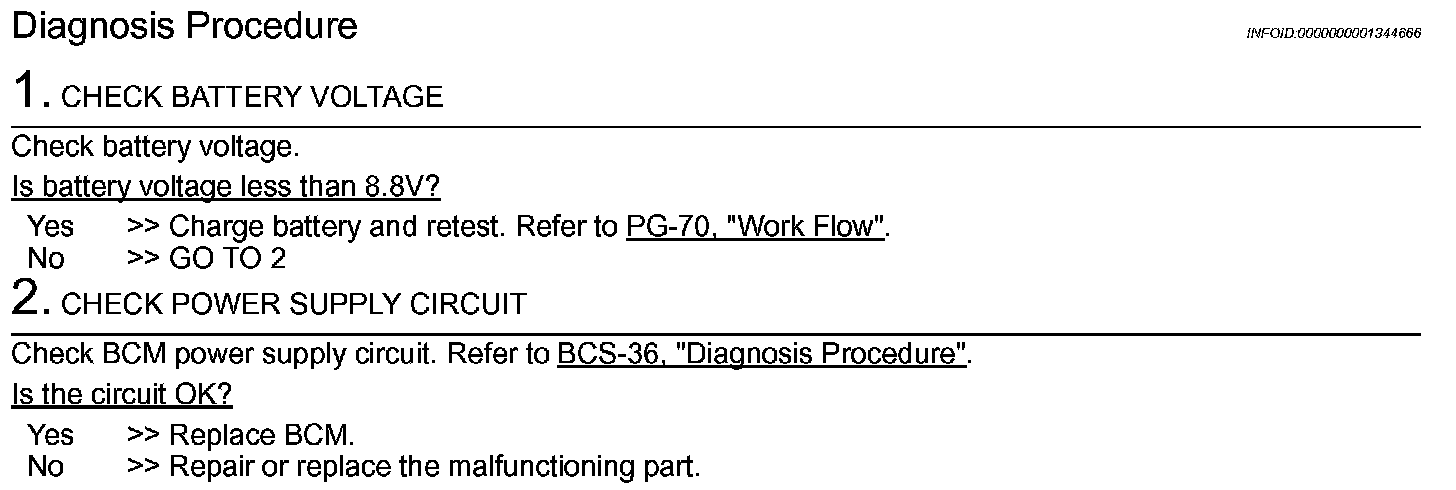

Diagnosis Procedure

Step 1-2:

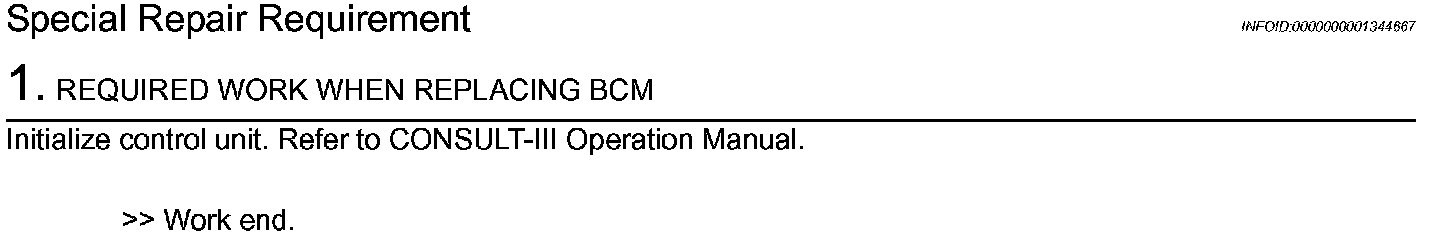

Special Repair Requirement

Step 1:
