B2602 SHIFT POSITION

Description
BCM confirms the shift position with the following 2 signals.
- CVT selector lever
- Speed signal from meter

DTC Logic

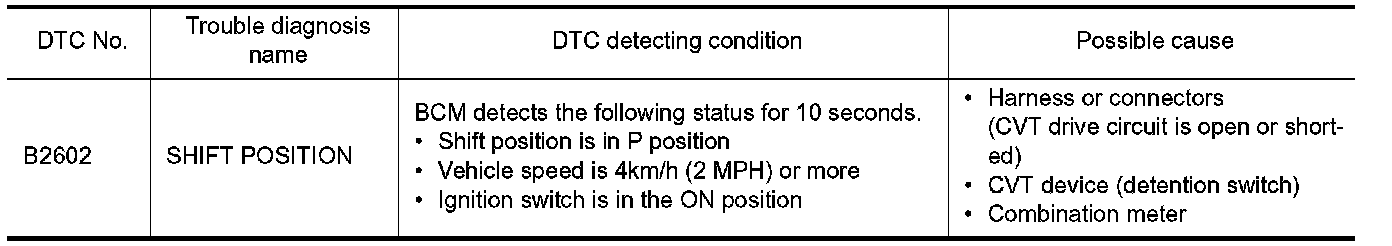

DTC DETECTION LOGIC

NOTE:
- If DTC B2602 is displayed with DTC U1000, first perform the trouble diagnosis for DTC U1000. Refer to SEC-32, "DTC Logic". Coupe
- If DTC B2602 is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010. Refer to SEC-33, "DTC Logic". Coupe

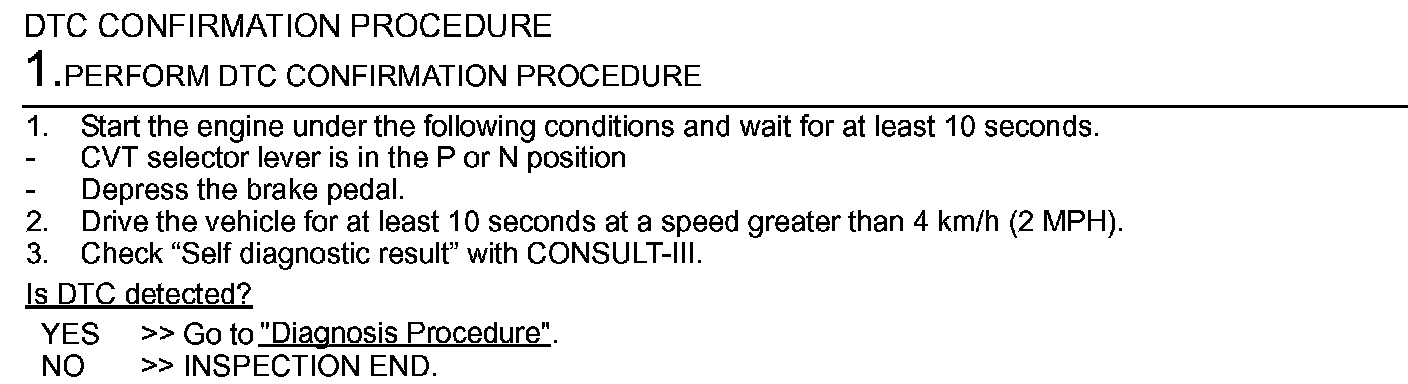

DTC CONFIRMATION PROCEDURE

Step 1:

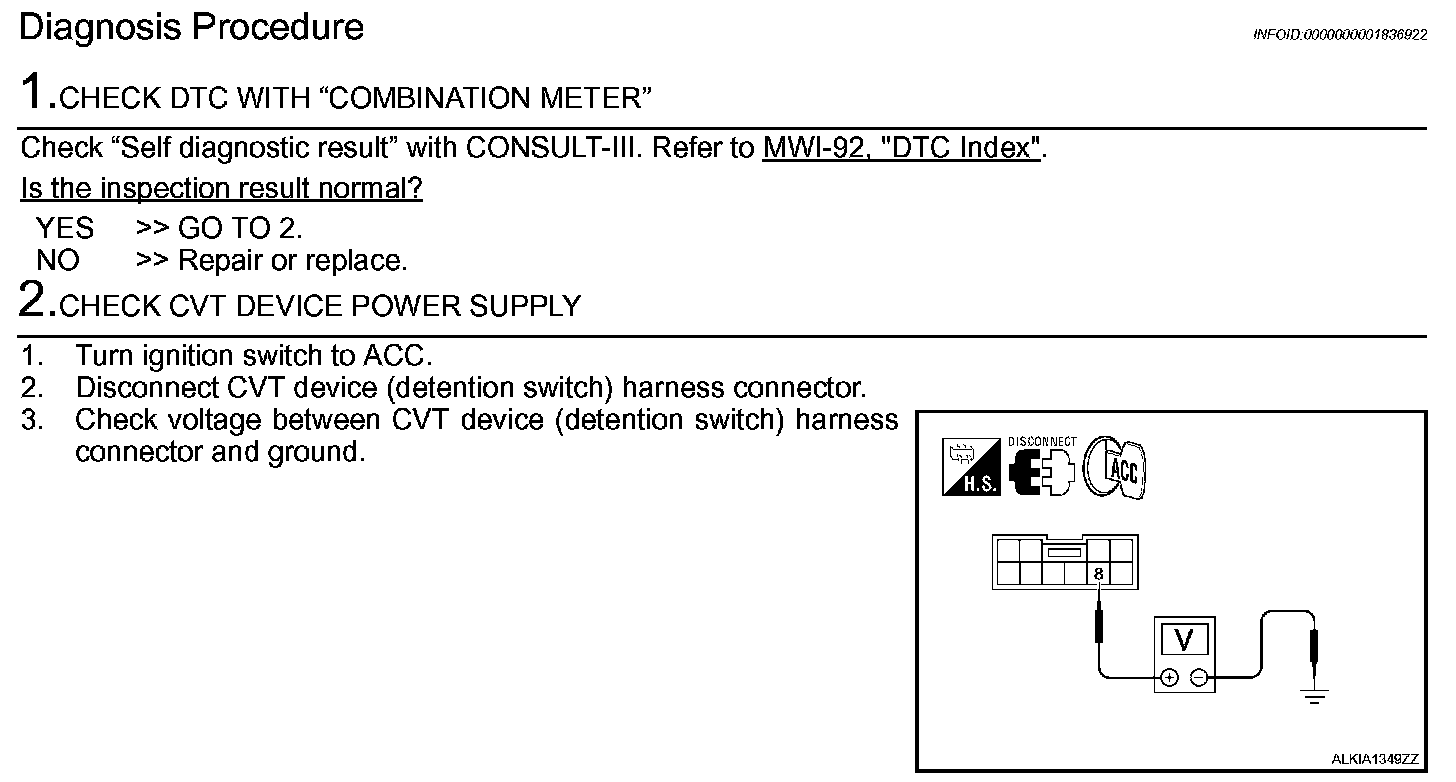

Diagnosis Procedure

Step 1-2:

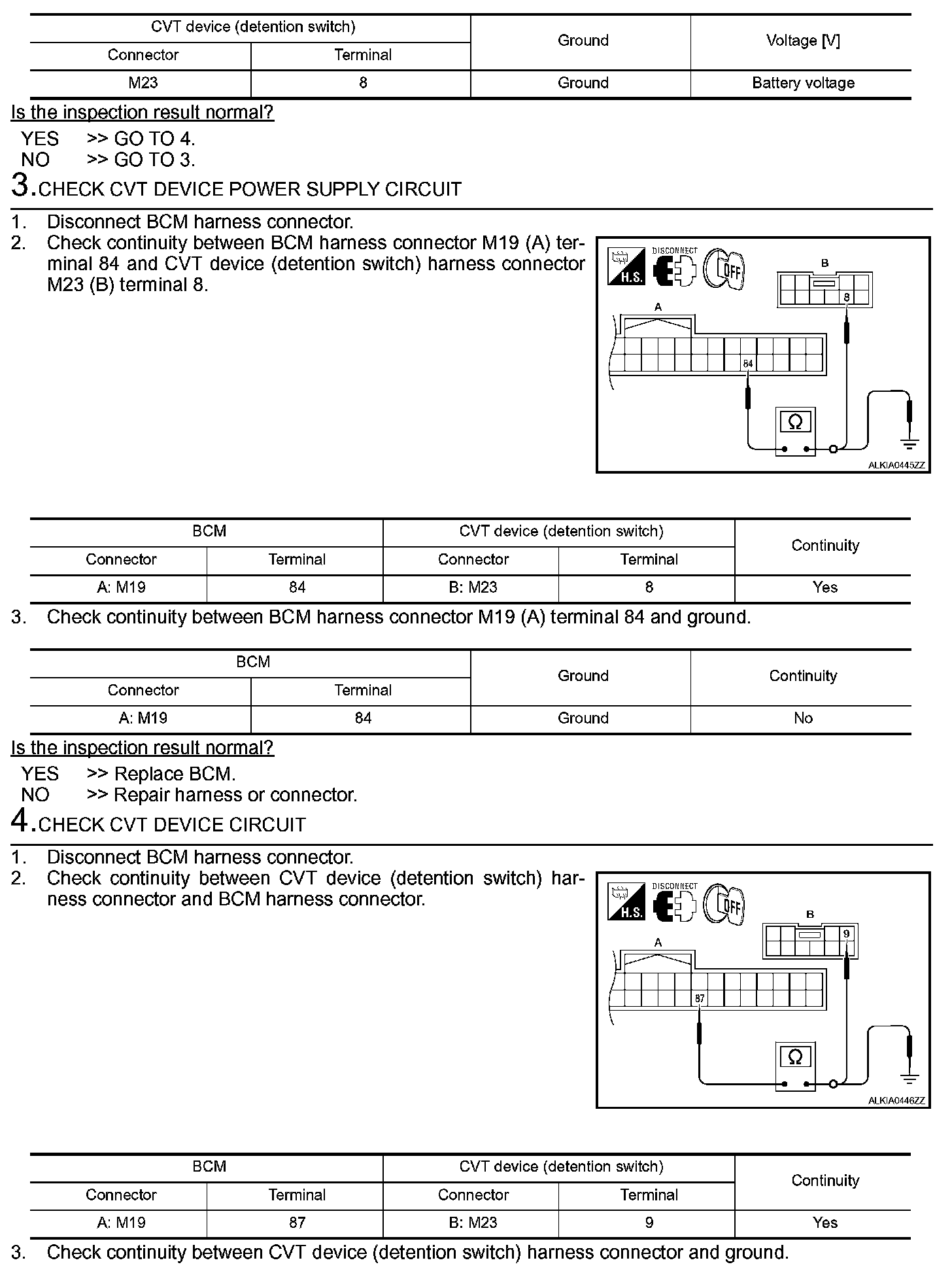

Step 2 (Continued)-4:

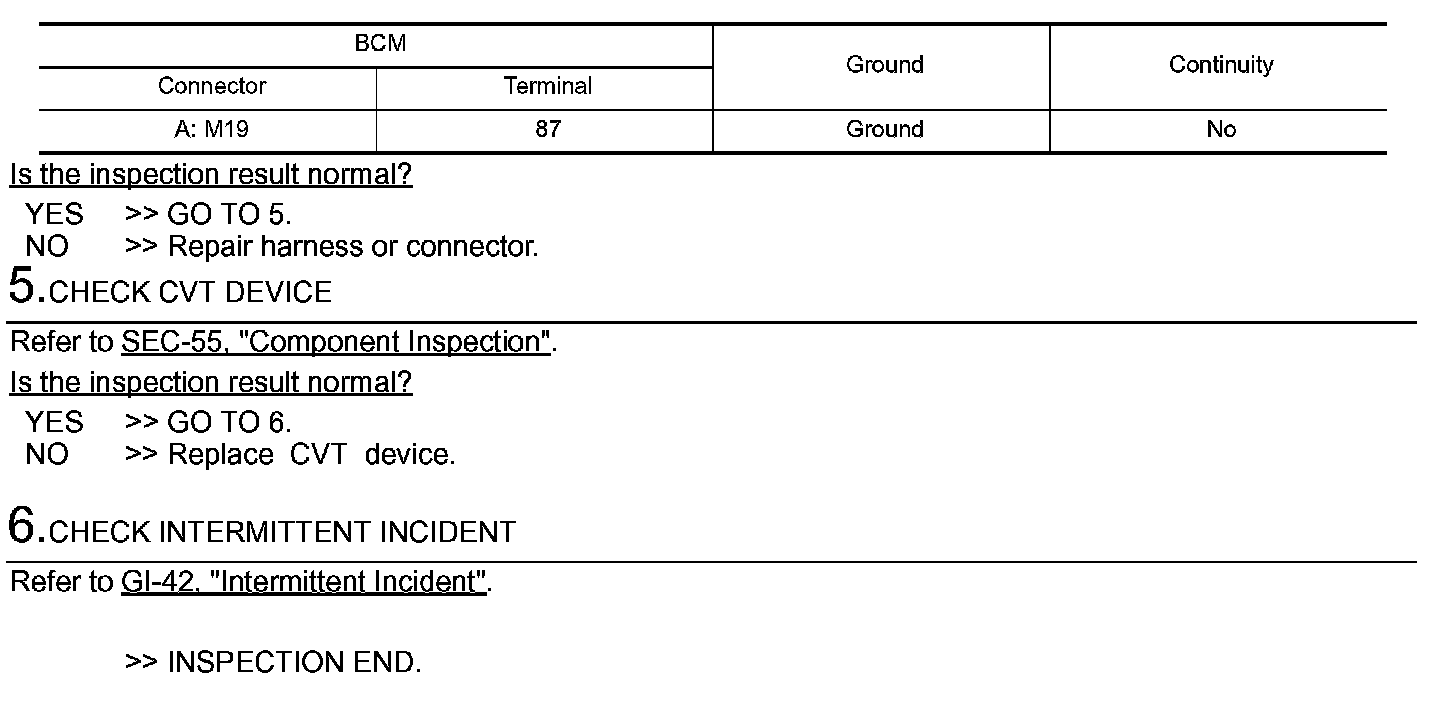

Step 4 (Continued)-6:
