Coupe
B2607 STEERING LOCK RELAYDescription
BCM requests to IPDM E/R to supply power to steering lock unit. IPDM E/R sends status of steering lock unit back to BCM.
DTC Logic

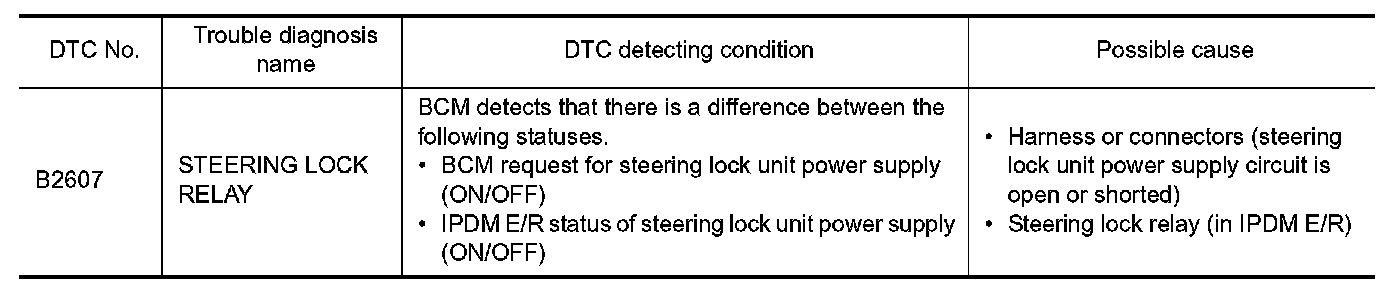

DTC DETECTION LOGIC
NOTE:
- If DTC B2607 is displayed with DTC U1000, first perform the trouble diagnosis for DTC U1000. Refer to SEC-32, "DTC Logic". Coupe
- If DTC B2607 is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010. Refer to SEC-33, "DTC Logic". Coupe

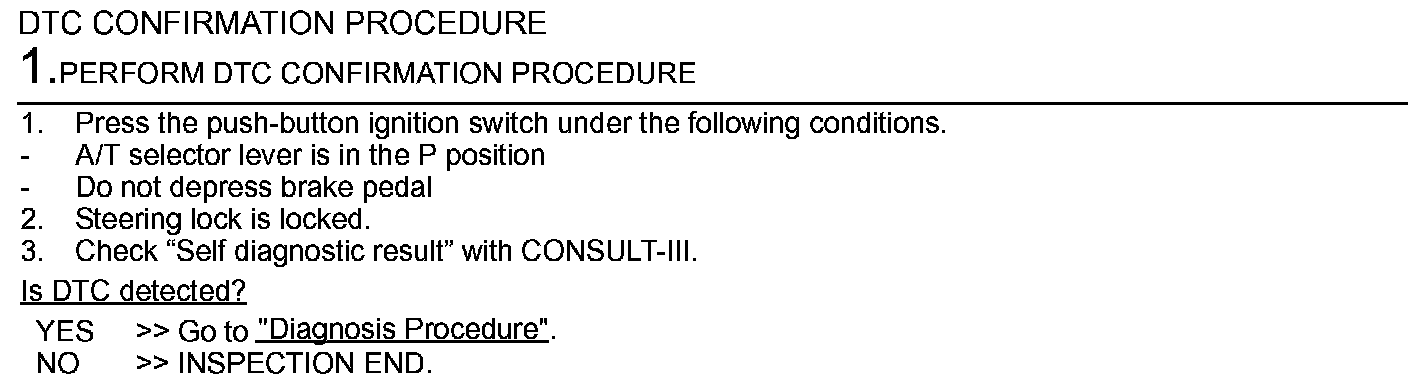

DTC CONFIRMATION PROCEDURE
Step 1:

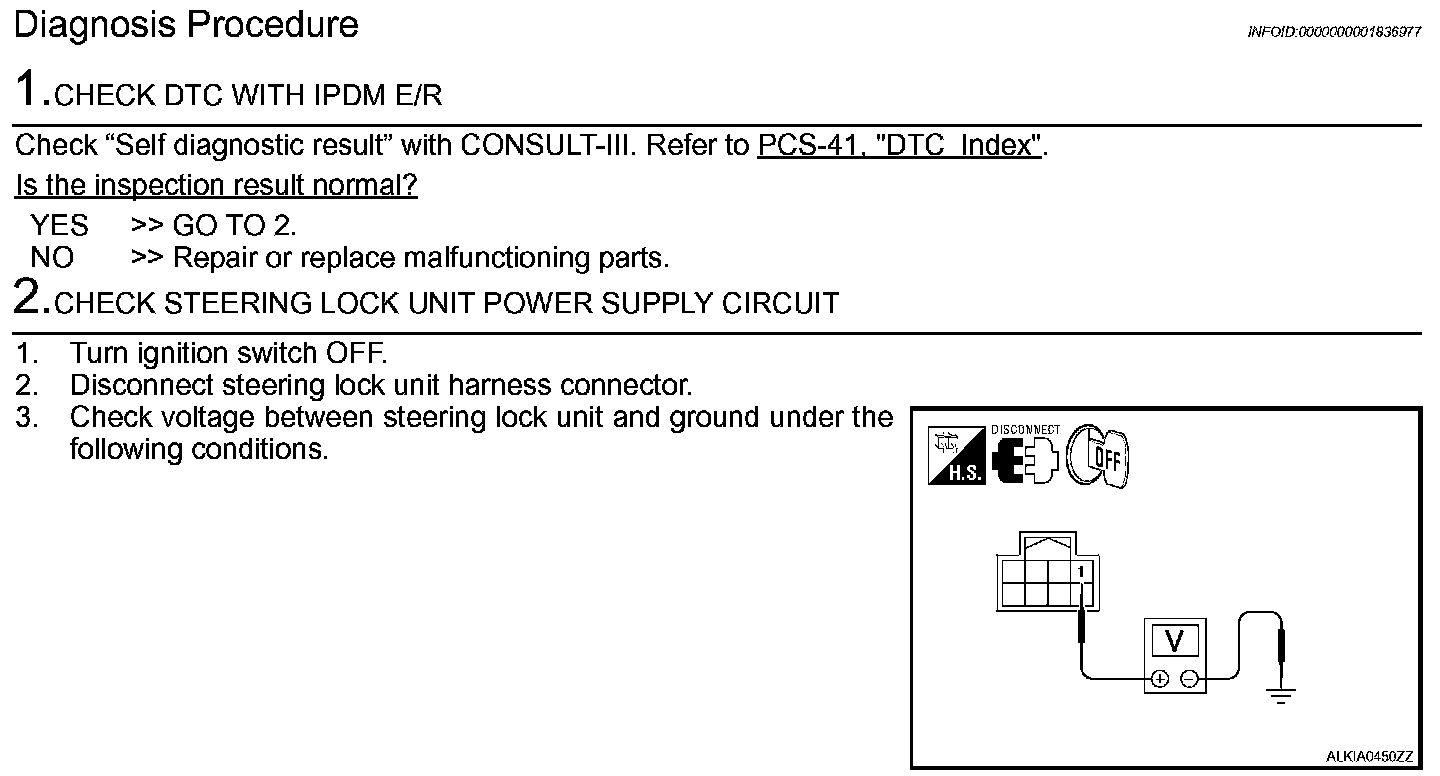

Diagnosis Procedure

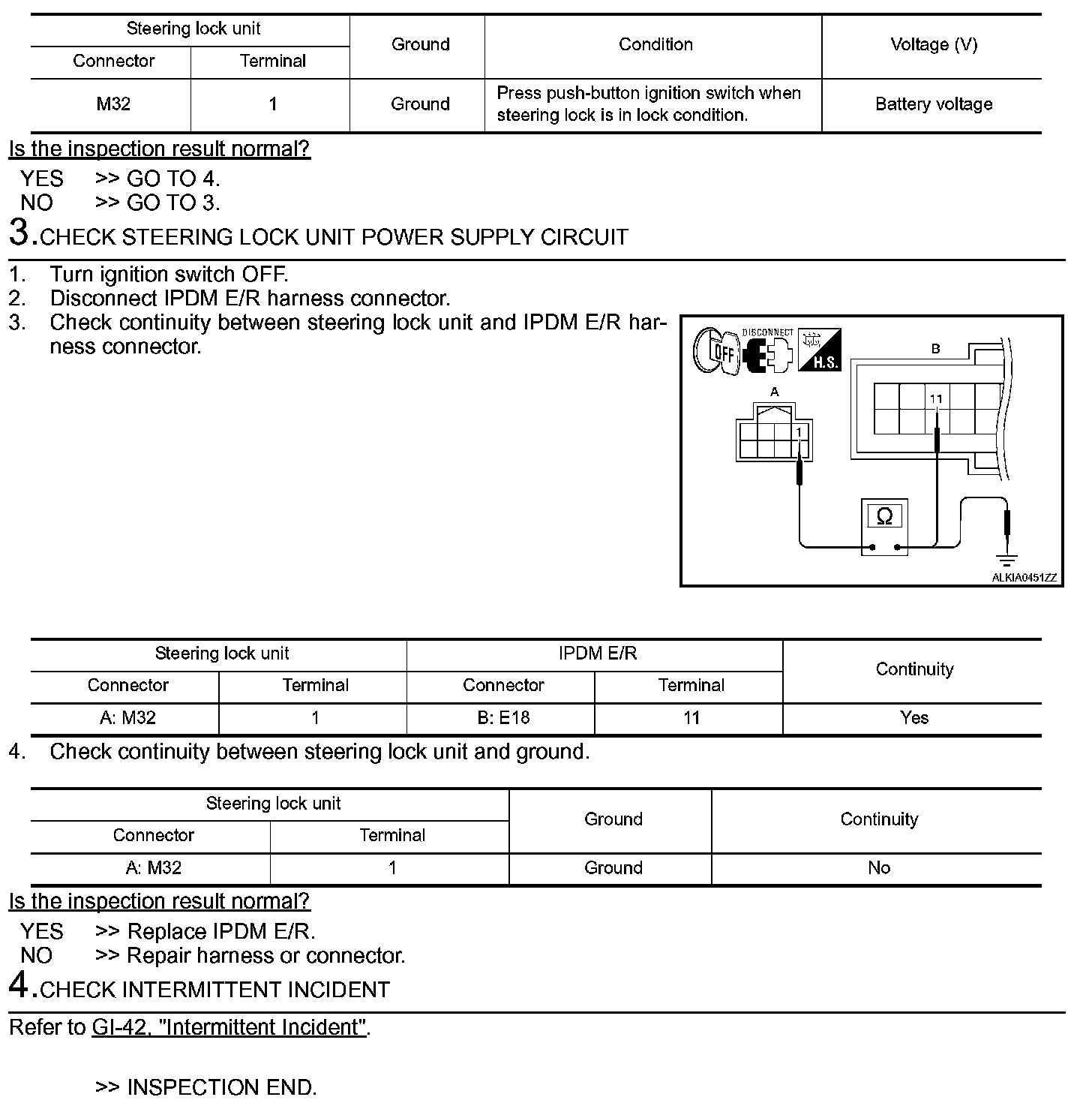

Step 1-2:
