Coupe
B260B STEERING LOCK UNITDescription
The steering lock unit performs the check by itself according to the steering status.
DTC Logic

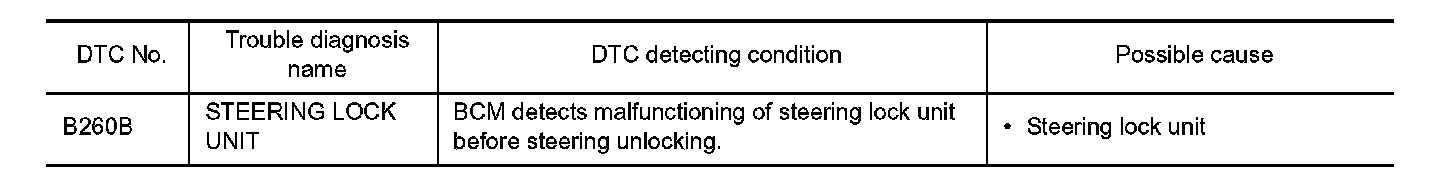

DTC DETECTION LOGIC

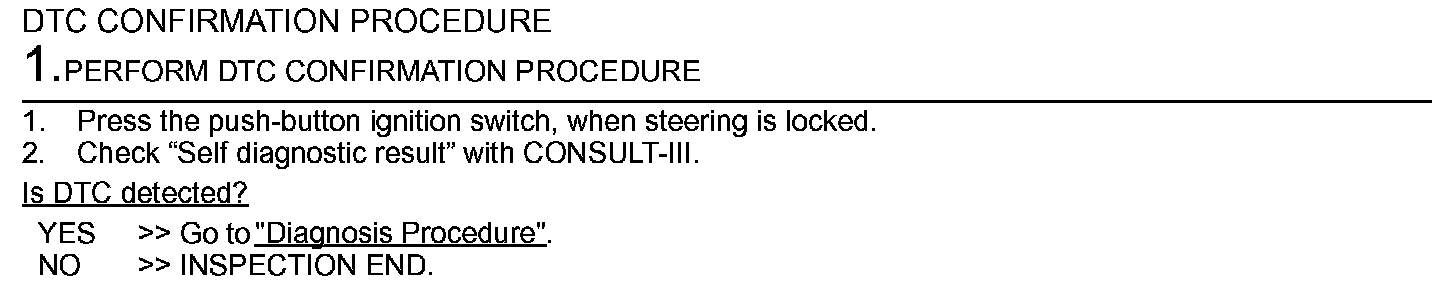

DTC CONFIRMATION PROCEDURE
Step 1:

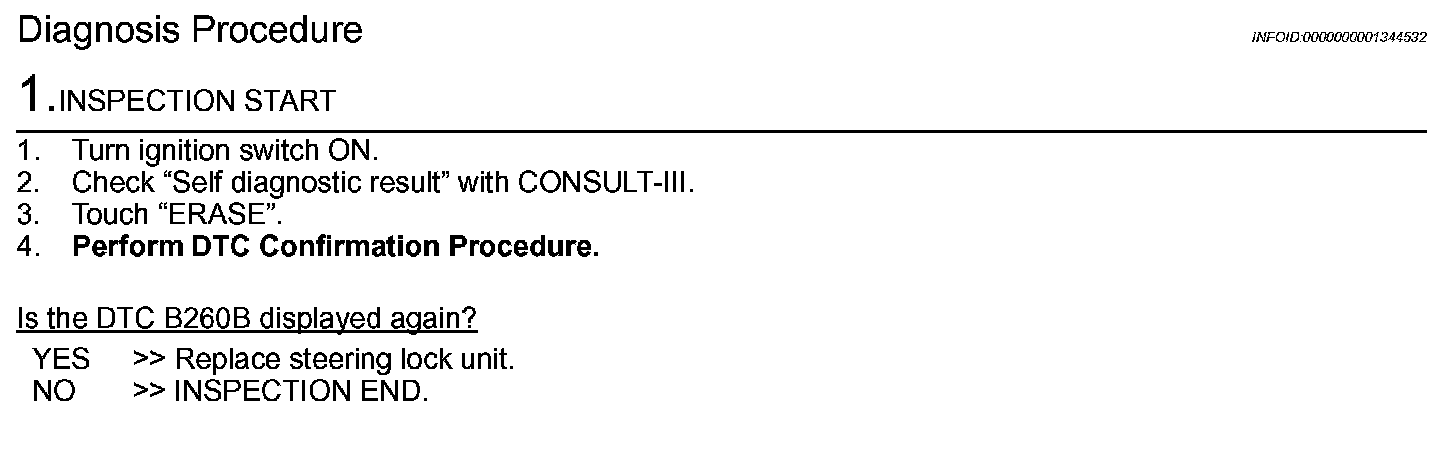

Diagnosis Procedure
Step 1:
Description
The steering lock unit performs the check by itself according to the steering status.
DTC Logic
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
Diagnosis Procedure
