B2615

B2615 BLOWER RELAY CIRCUIT

Description
BCM controls the various electrical components and simultaneously supplies power according to the power supply position.
BCM checks the power supply position internally.

DTC Logic




DTC DETECTION LOGIC

Step 1:

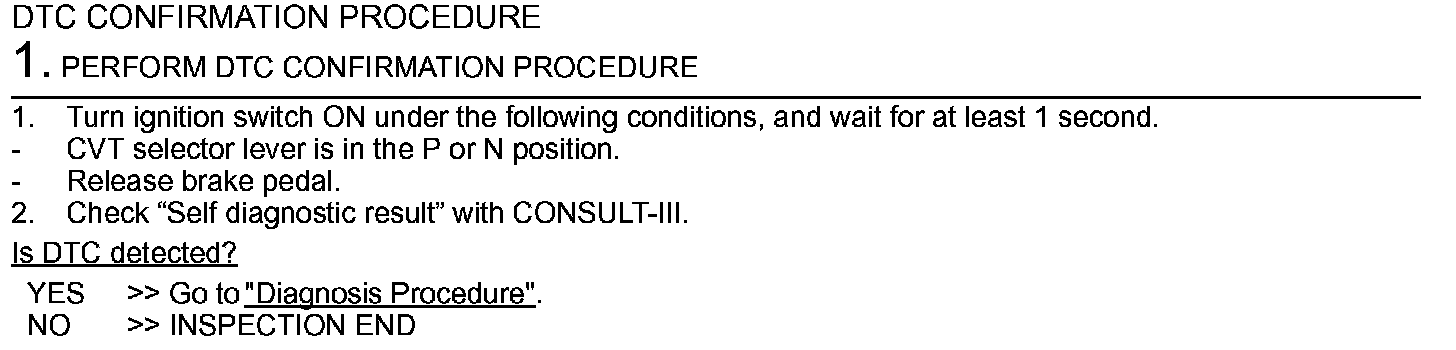

DTC CONFIRMATION PROCEDURE

Step 1-2:




Step 2 (Continued)-6:

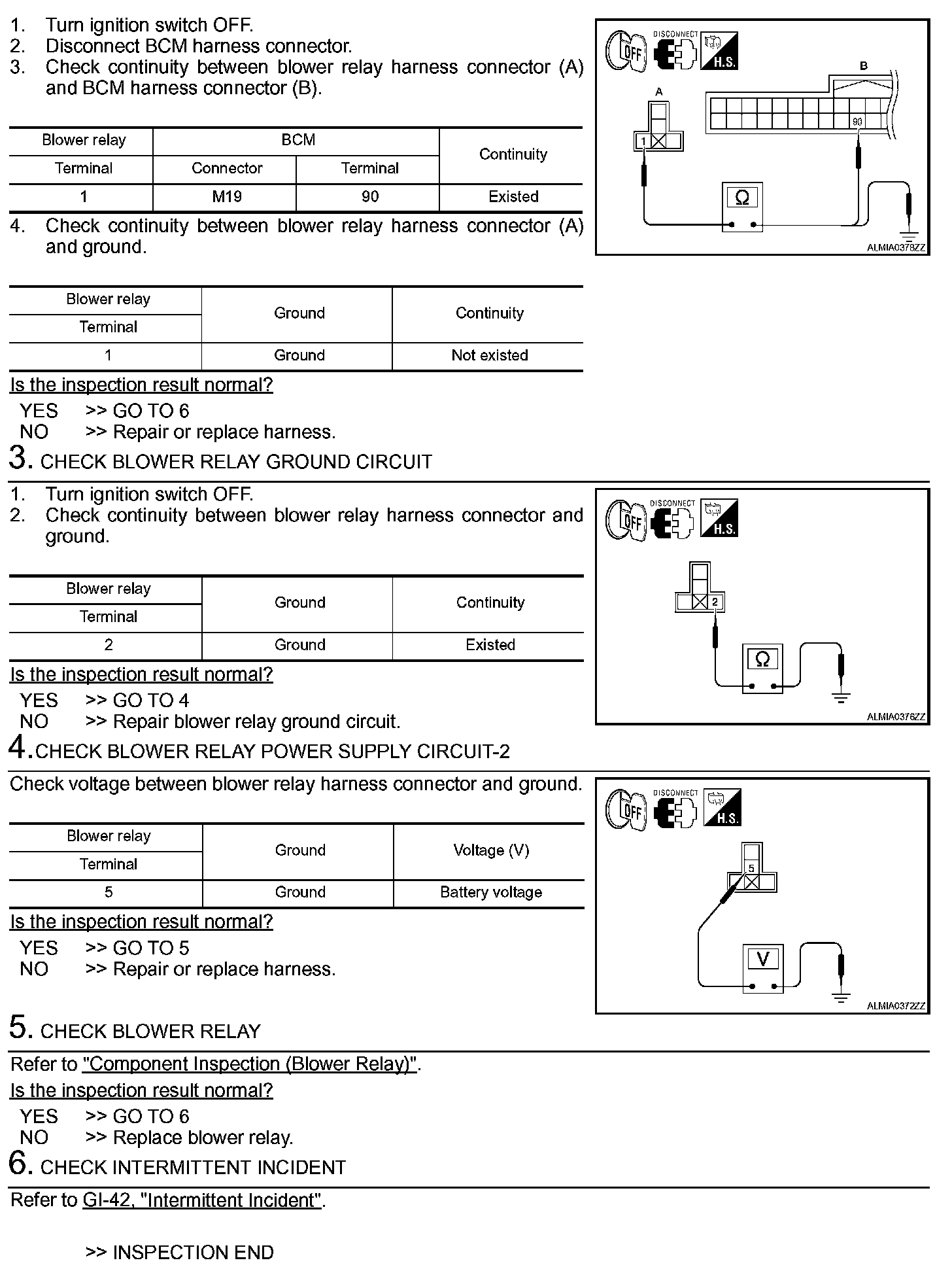

Diagnosis Procedure

Step 1:

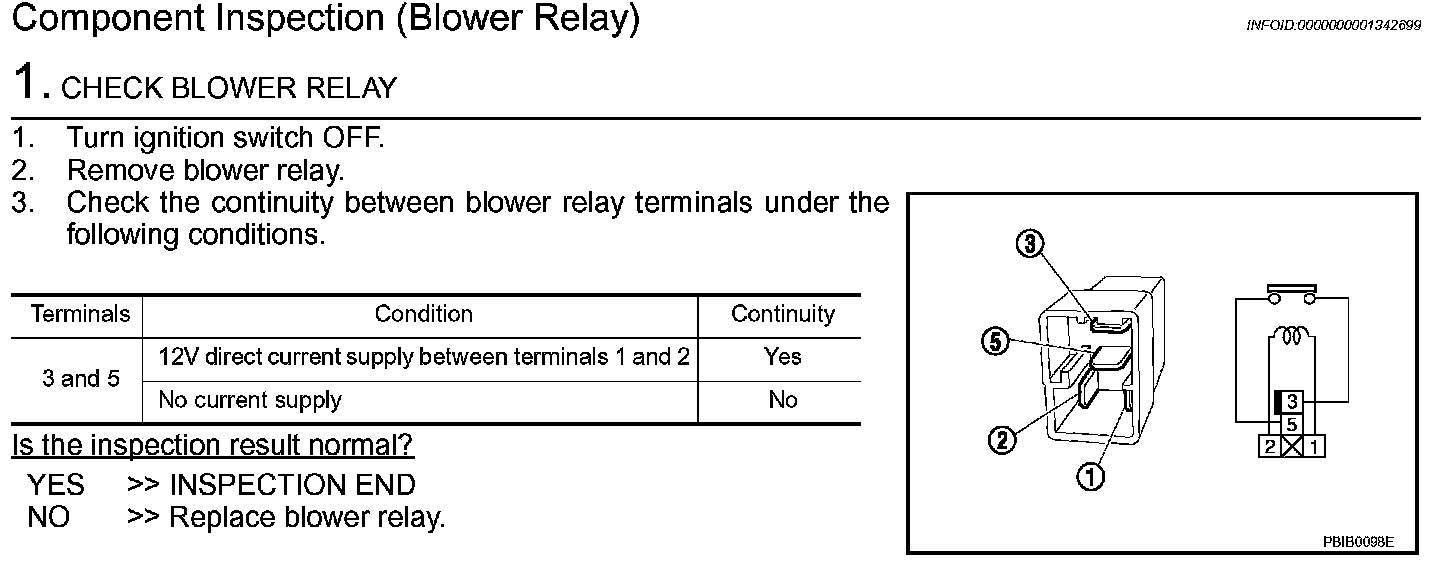

Component Inspection (Blower Relay)
