VDC/TCS/ABS
C1130, C1131, C1132, C1133, C1136 ENGINE SIGNALDescription
ABS actuator and electric unit (control unit) and ECM exchange the engine signal with CAN communication line.
DTC Logic

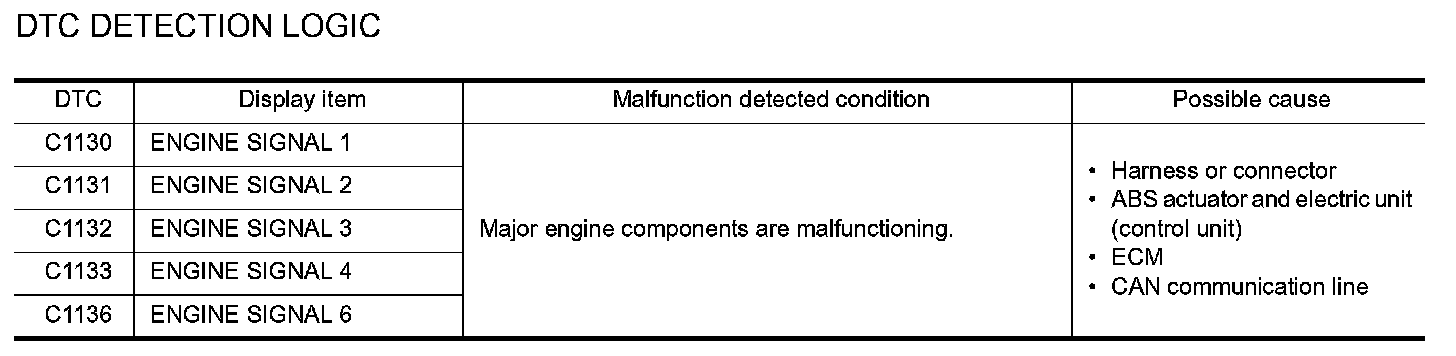

DTC DETECTION LOGIC:
DTC CONFIRMATION PROCEDURE
CHECK SELF-DIAGNOSIS RESULTS

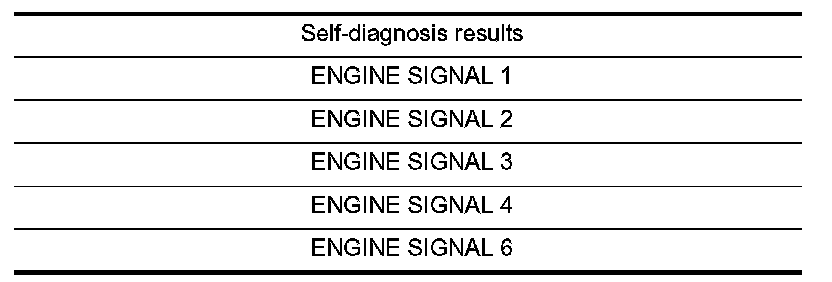

Check the self-diagnosis results.
Is above displayed on the self-diagnosis display?
YES >> Proceed to diagnosis procedure. Refer to "Diagnosis Procedure".
NO >> INSPECTION END
Diagnosis Procedure
INSPECTION PROCEDURE
1. CHECK ENGINE SYSTEM
1. Perform ECM self-diagnosis. Repair or replace items indicated, then perform ECM self-diagnosis again.
Refer to EC-1012, "Work Flow". [1][2]Diagnosis And Repair Work Flow
2. Perform ABS actuator and electric unit (control unit) self-diagnosis.
Is the inspection result normal?
YES >> Inspection end.
NO >> ^ Repair or replace malfunctioning components.
^ Perform the self-diagnosis, and make sure that the result shows "NO DTC IS DETECTED".
Special Repair Requirement
SPECIAL REPAIR REQUIREMENT
1. ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION
Always perform the neutral position adjustment for the steering angle sensor, when replacing the ABS actuator and electric unit (control unit). Refer to BRC-142, "ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION: Description".
>> END
