TCS/ABS
C1130, C1131, C1132, C1133 ENGINE SIGNALDescription
DTC Logic
DTC DETECTION LOGIC
DTC Detection Logic
DTC CONFIRMATION PROCEDURE
DTC Confirmation Procedure
Diagnosis Procedure
INSPECTION PROCEDURE

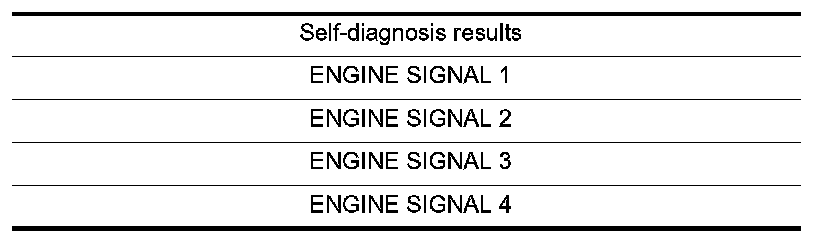

1. CHECK SELF-DIAGNOSIS RESULTS
Check self-diagnosis results.
Is above displayed on the self-diagnosis display?
YES >> GO TO 2
NO >> Inspection end.
2. CHECK ENGINE SYSTEM
1. Perform ECM self-diagnosis. Repair or replace items indicated, then perform ECM self-diagnosis again.
Refer to EC-1110, "Diagnosis Description". Initial Inspection and Diagnostic Overview
2. Perform ABS actuator and electric unit (control unit) self-diagnosis.
Is the inspection result normal?
YES >> Inspection end.
NO >> ^ Repair or replace malfunctioning components.
^ Perform the self-diagnosis, and make sure that the result shows "NO DTC IS DETECTED".
Component Inspection & Special Repair Requirement
COMPONENT INSPECTION
Component Inspection
SPECIAL REPAIR REQUIREMENT
Special Repair Requirement
