P0032

P0031, P0032, P0051, P0052 A/F SENSOR 1 HEATER

Description

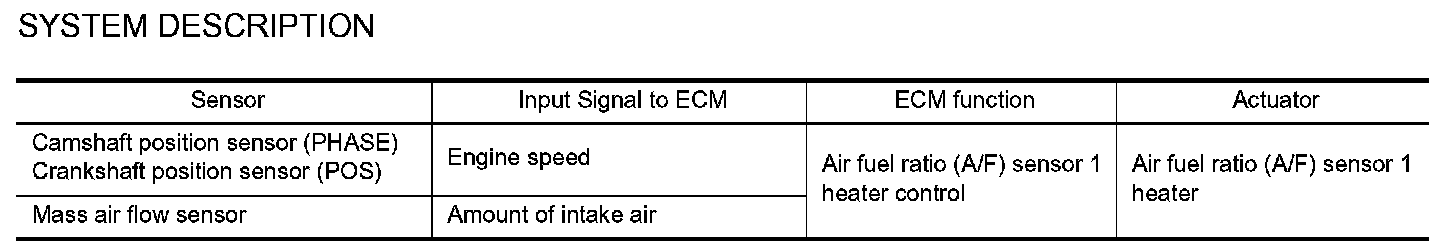

SYSTEM DESCRIPTION
The ECM performs ON/OFF duty control of the A/F sensor 1 heater corresponding to the engine operating condition to keep the temperature of A/F sensor 1 element at the specified range.

DTC Logic

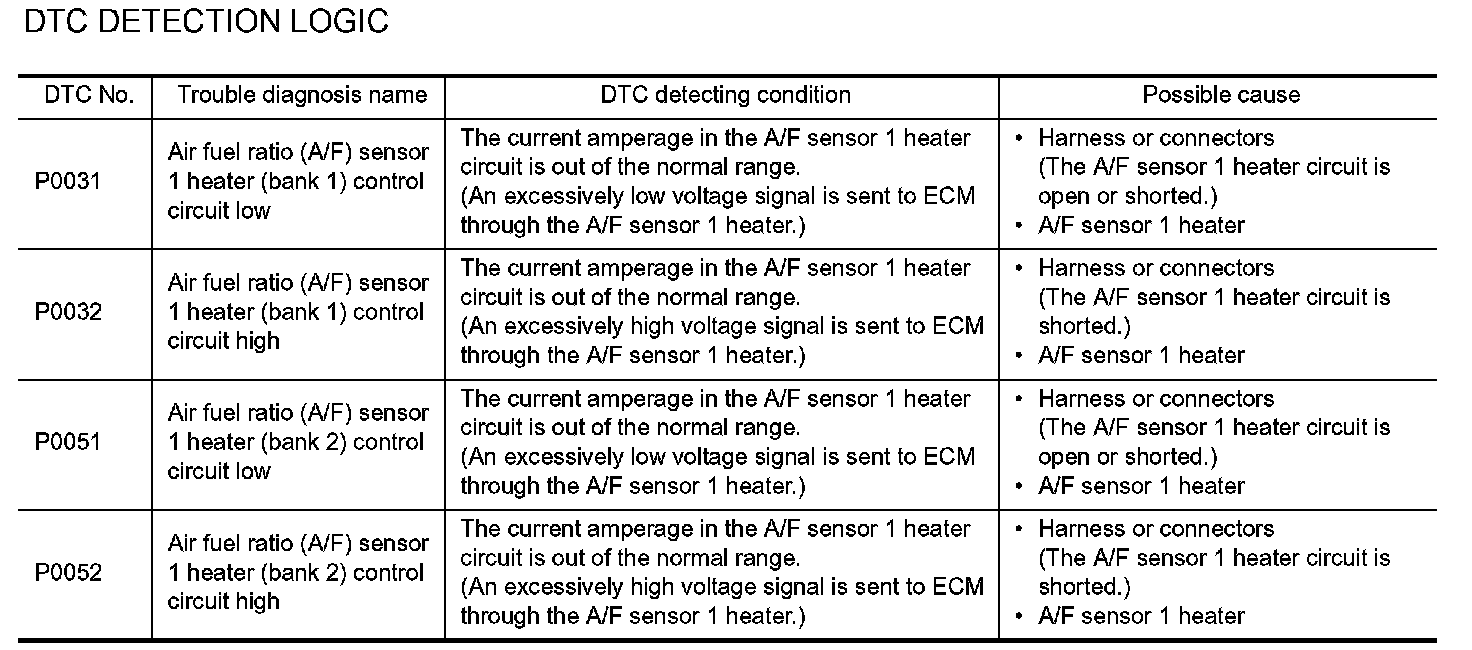

DTC Detection Logic

Step 1-2:

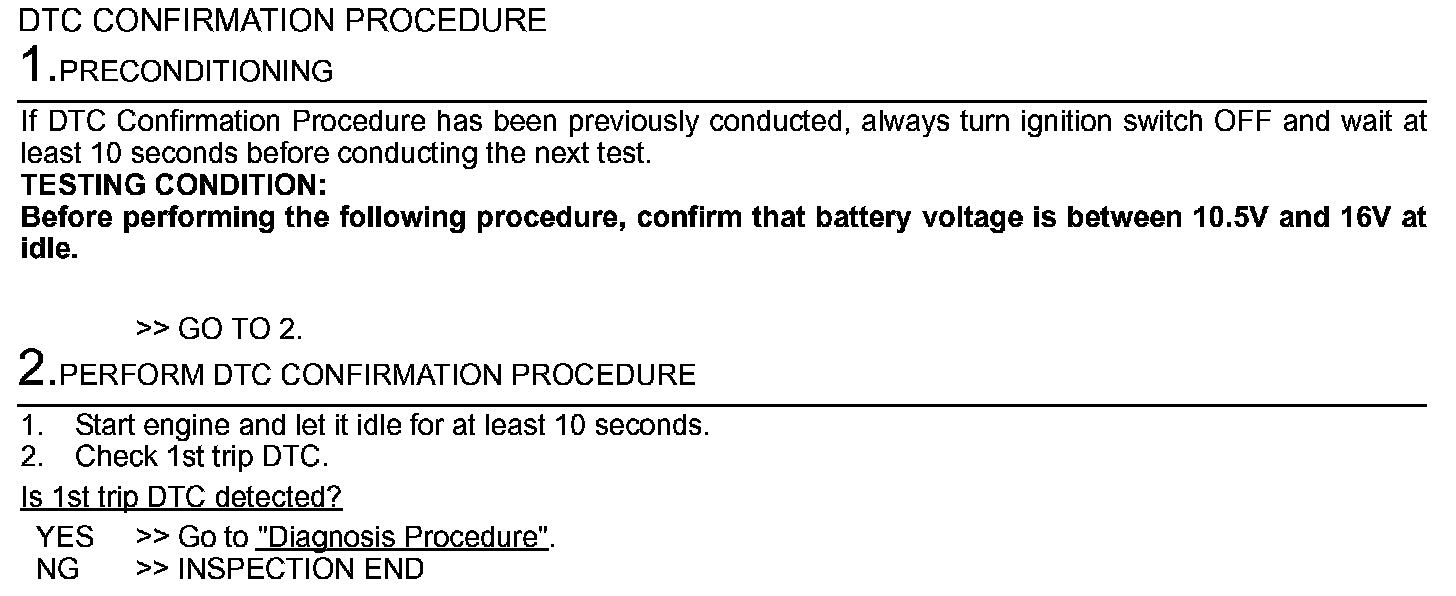

DTC Confirmation Procedure

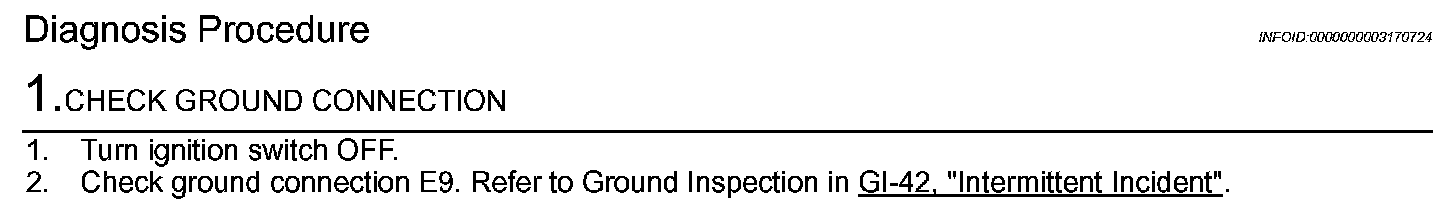

Diagnostic Procedure

Step 1:

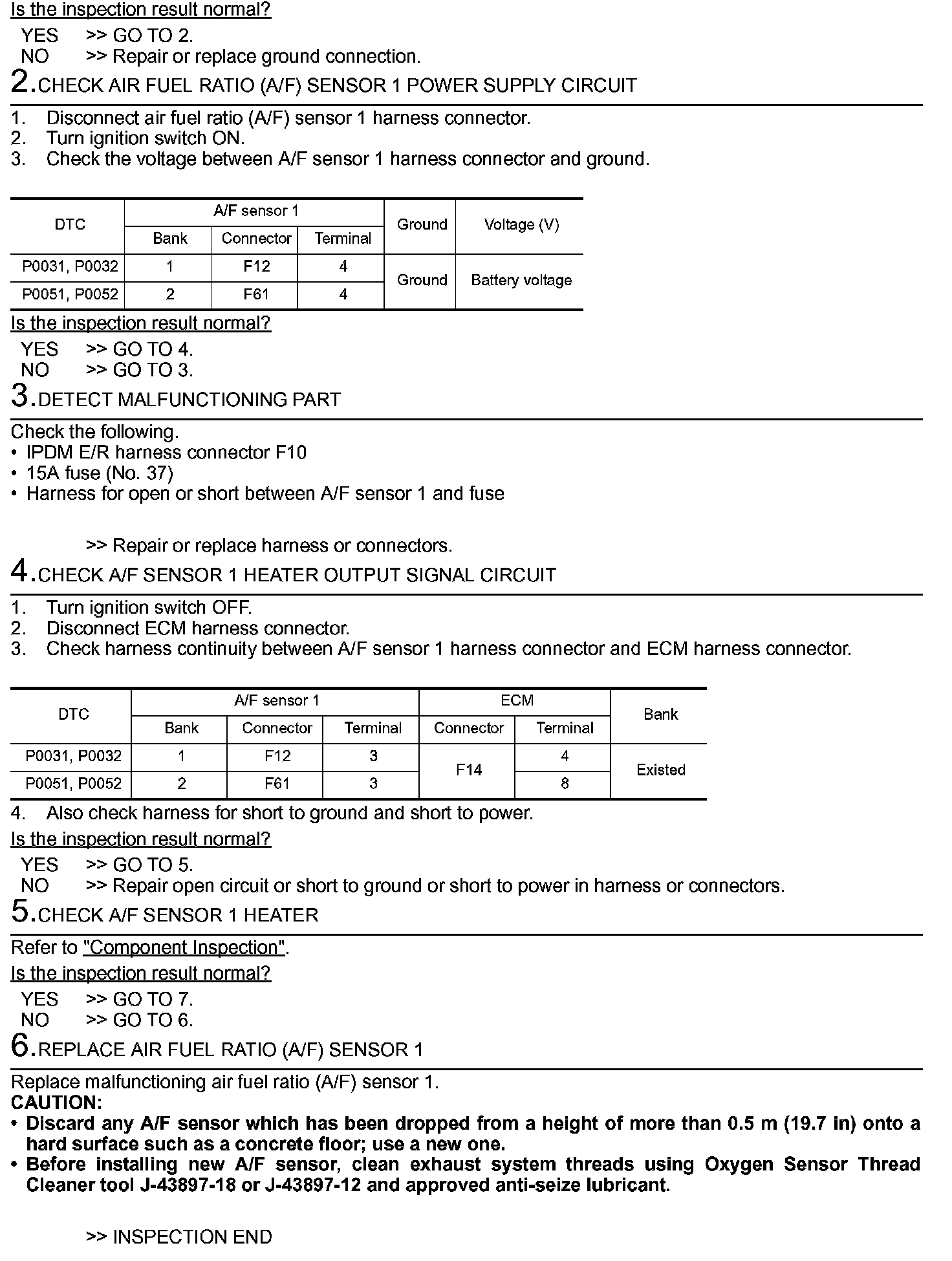

Step 1 (Continued)-6:

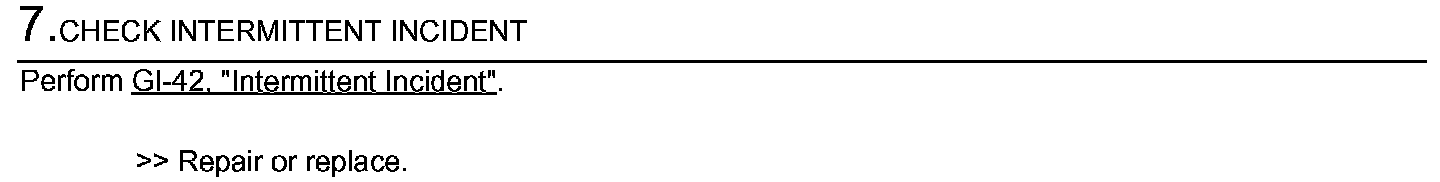

Step 7:

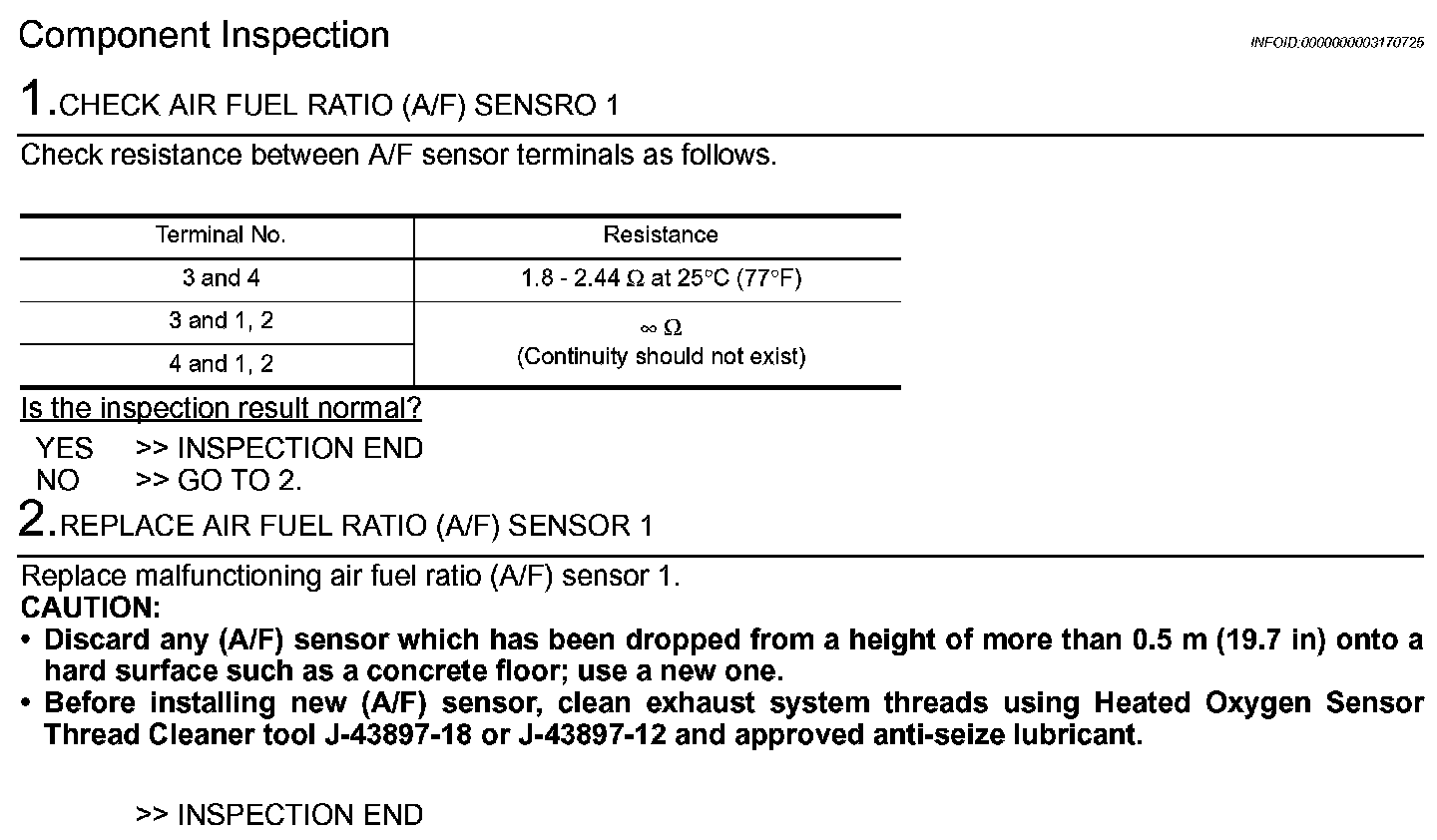

Component Inspection
