P0328

P0327, P0328, P0332, P0333 KS

Description
The knock sensor is attached to the cylinder block. It senses engine knocking using a piezoelectric element. A knocking vibration from the cylinder block is sensed as vibrational pressure. This pressure is converted into a voltage signal and sent to the ECM.

DTC Logic

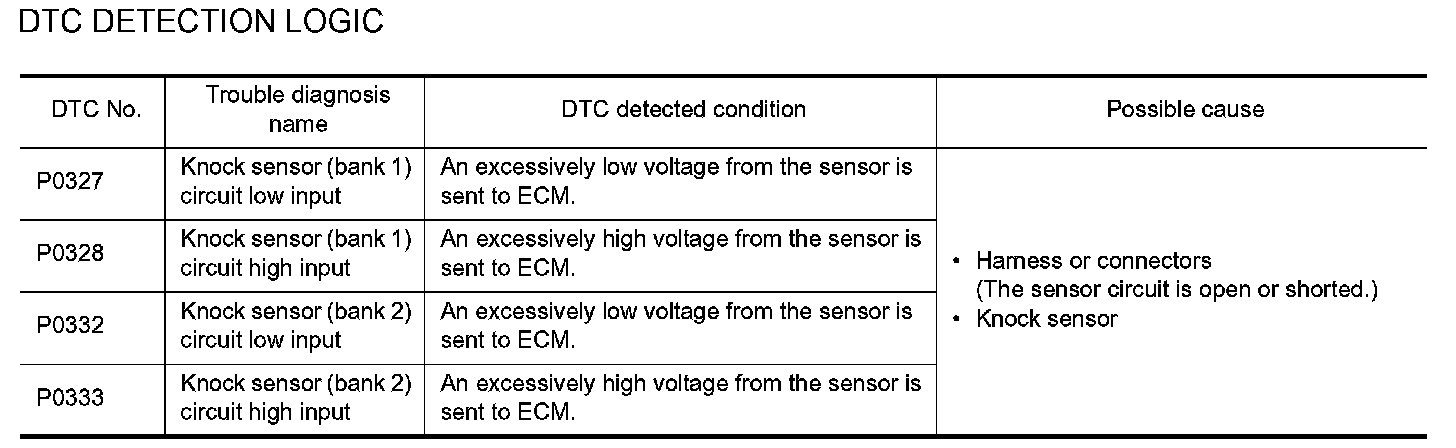

DTC Detection Logic

Step 1-2:

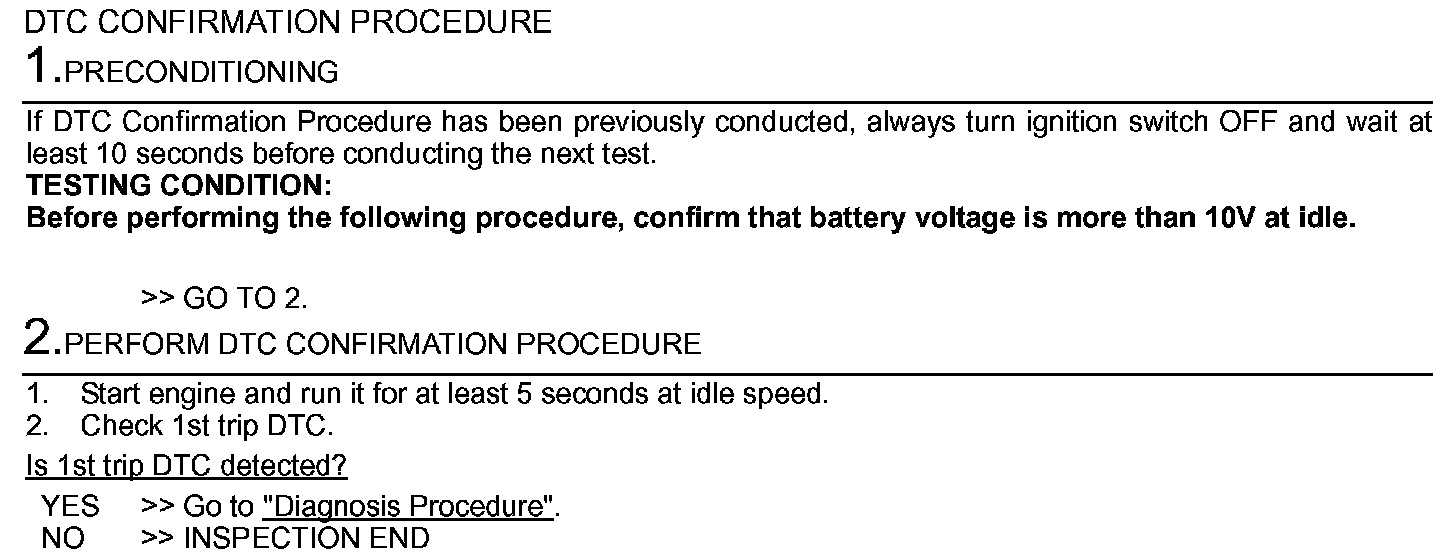

DTC Confirmation Procedure

Step 1-2:

Step 2 (Continued)-7:

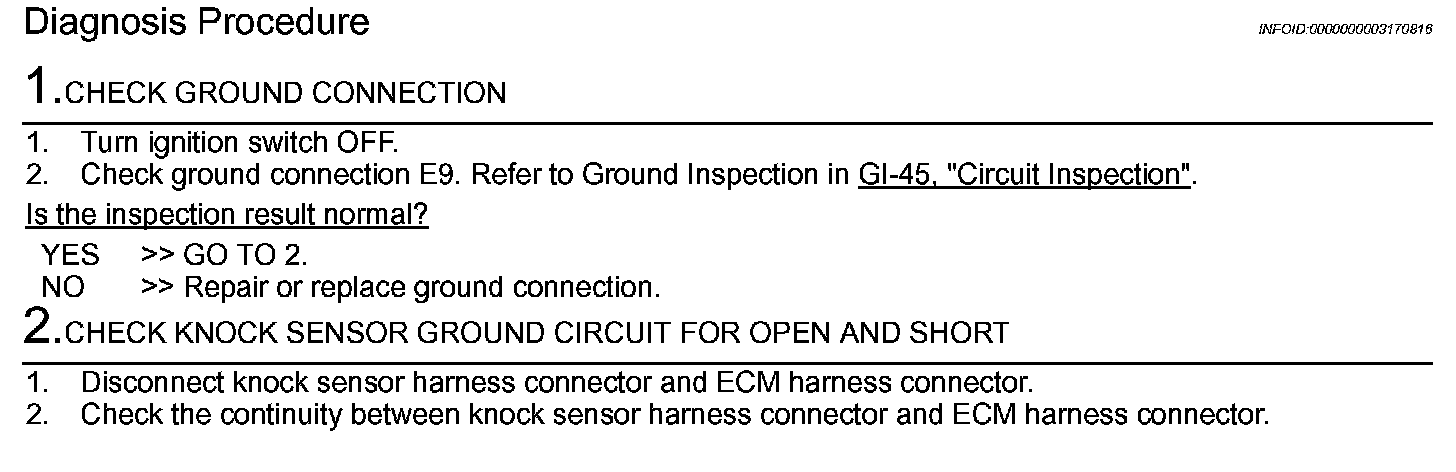

Diagnostic Procedure

Step 1:

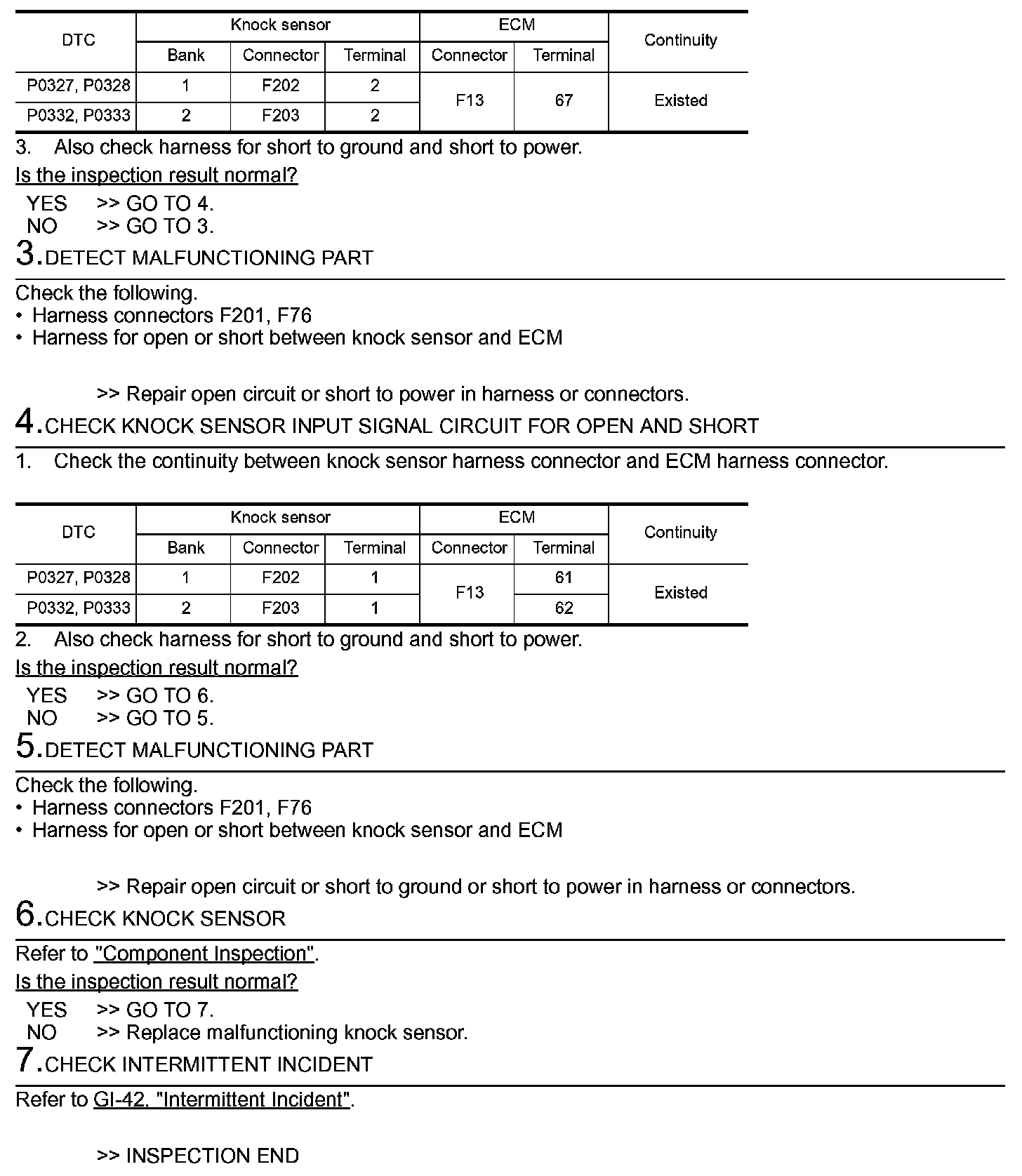

Step 1 (Continued):

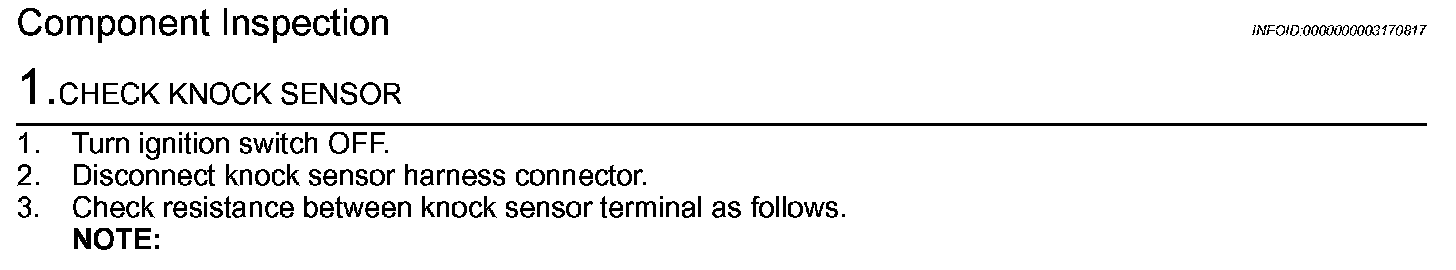

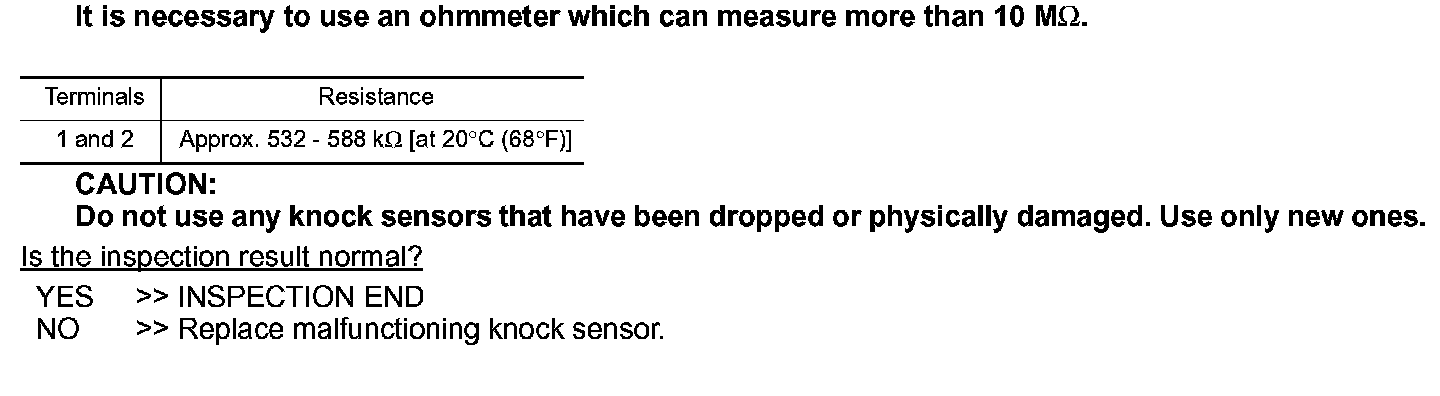

Component Inspection
