P0444

P0444, P0445 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

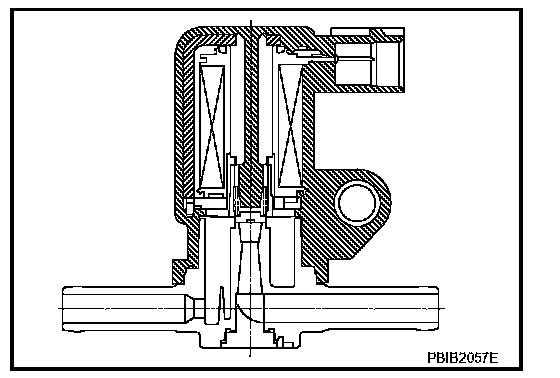

Description
The EVAP canister purge volume control solenoid valve uses a ON/OFF duty to control the flow rate of fuel vapor from the EVAP canister. The EVAP canister purge volume control solenoid valve is moved by ON/OFF pulses from the ECM. The longer the ON pulse, the greater the amount of fuel vapor that will flow through the valve.

DTC Logic




DTC Detection Logic

Step 1-2:

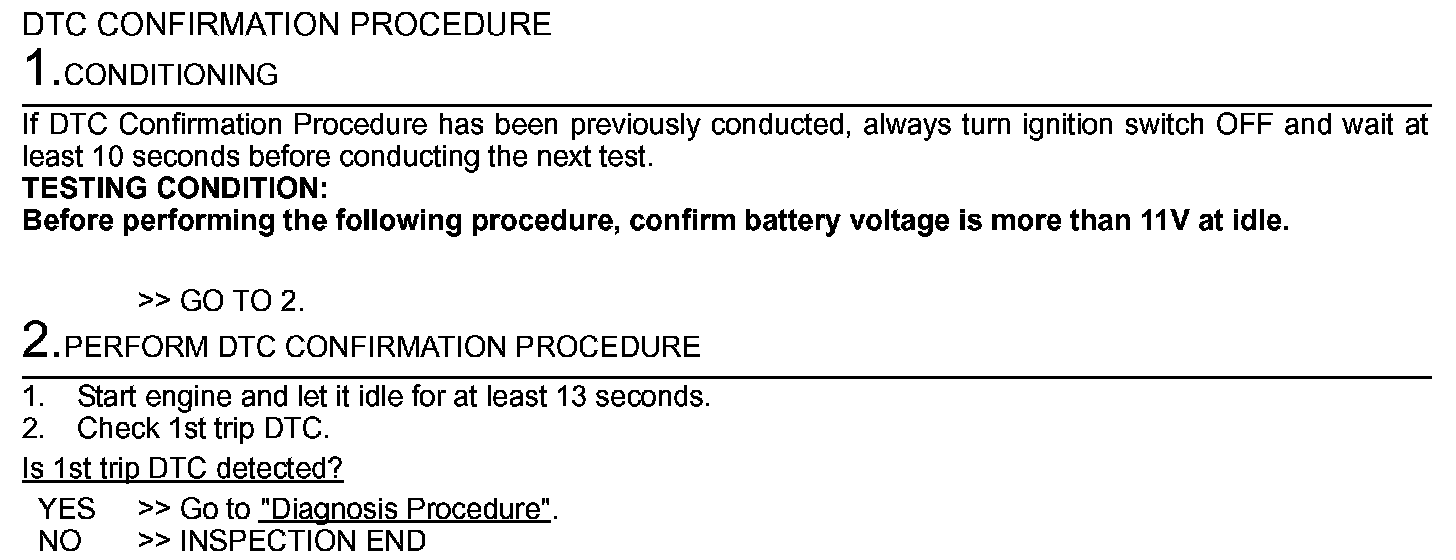

DTC Confirmation Procedure

Step 1:

Step 1 (Continued)-6:

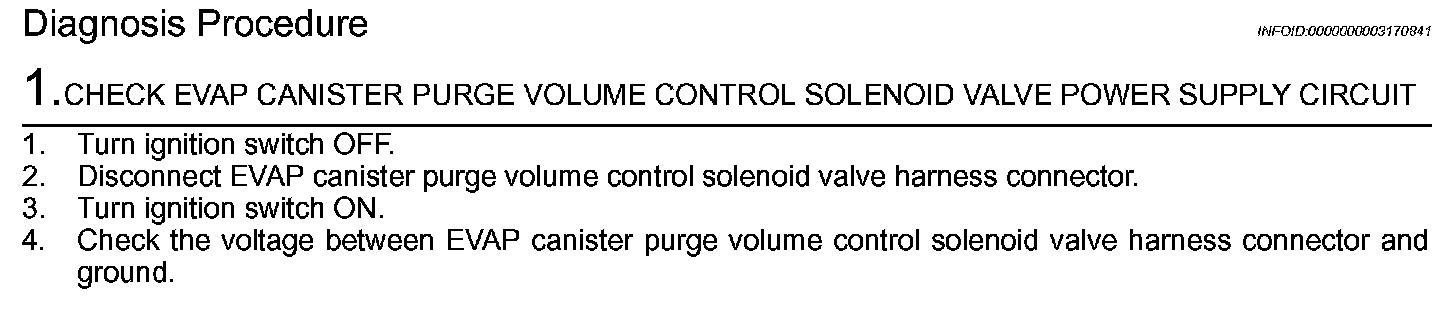

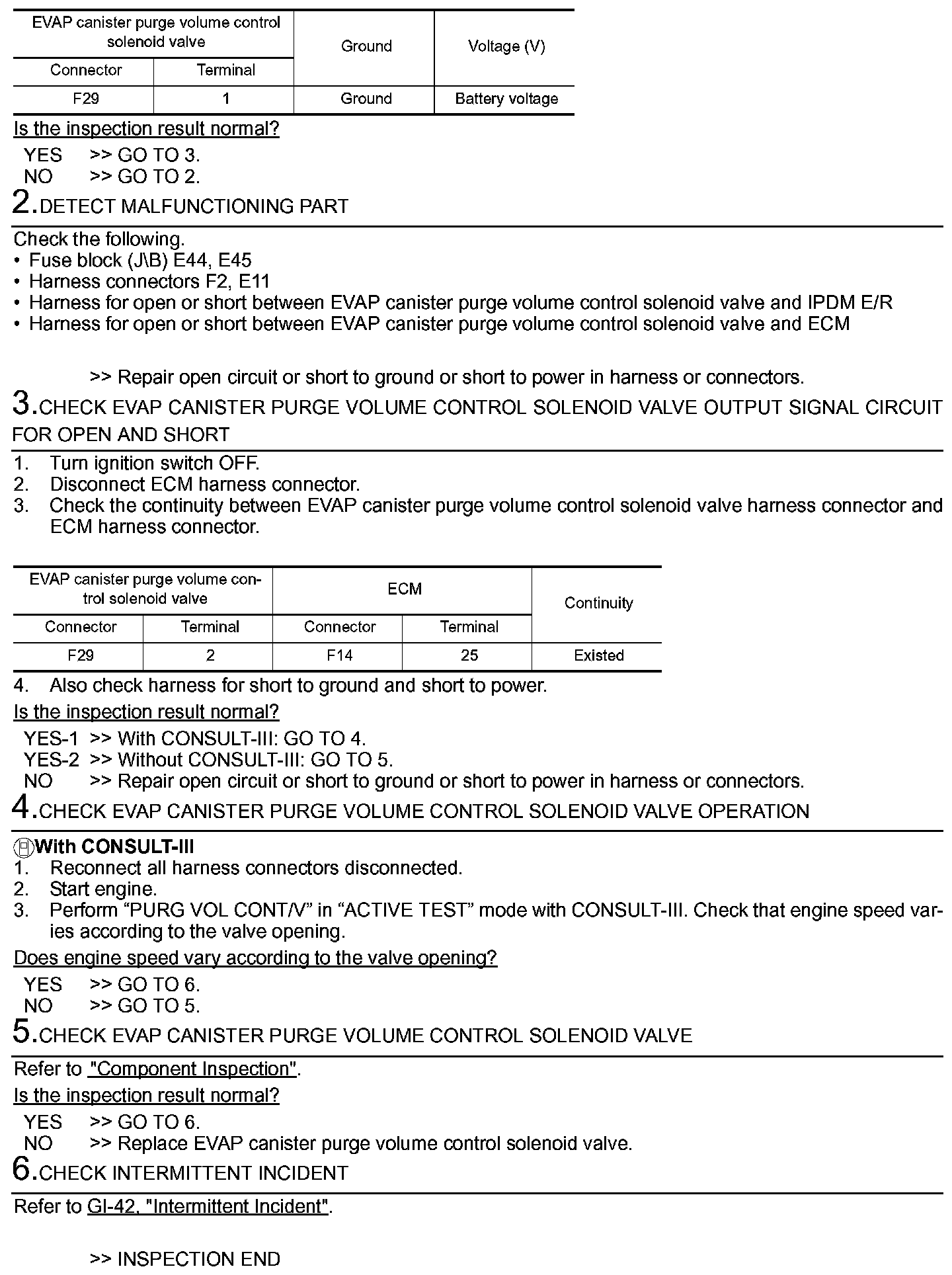

Diagnostic Procedure

Step 1:

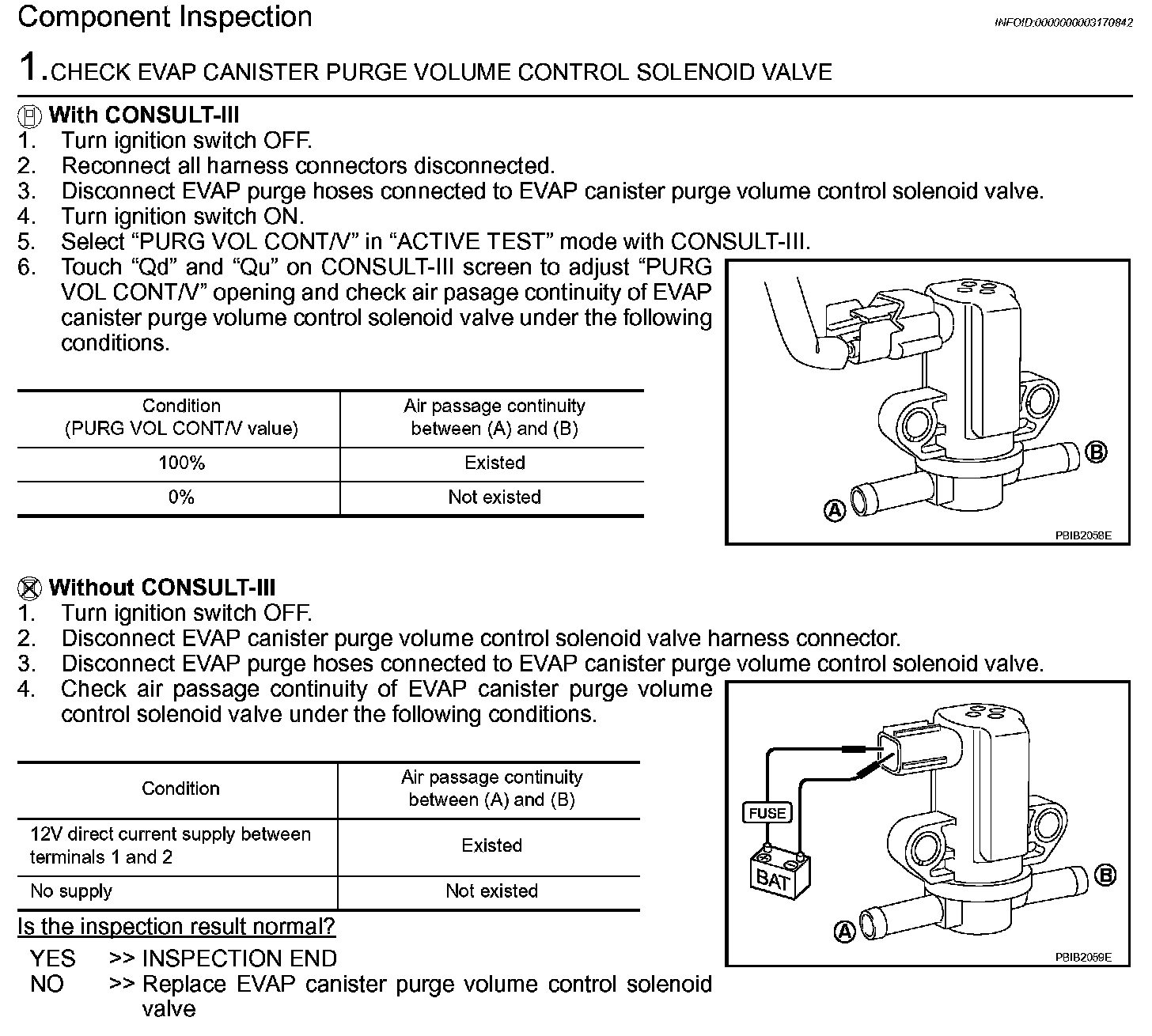

Component Inspection
