CVT: RE0F10A
P1740 LOCK-UP SELECT SOLENOID VALVEDescription
- Lock-up select solenoid valve controls lock-up clutch pressure or forward clutch pressure (reverse brake pressure).
- When controlling lock-up clutch, the valve is turned OFF. When controlling forward clutch, it is turned ON.

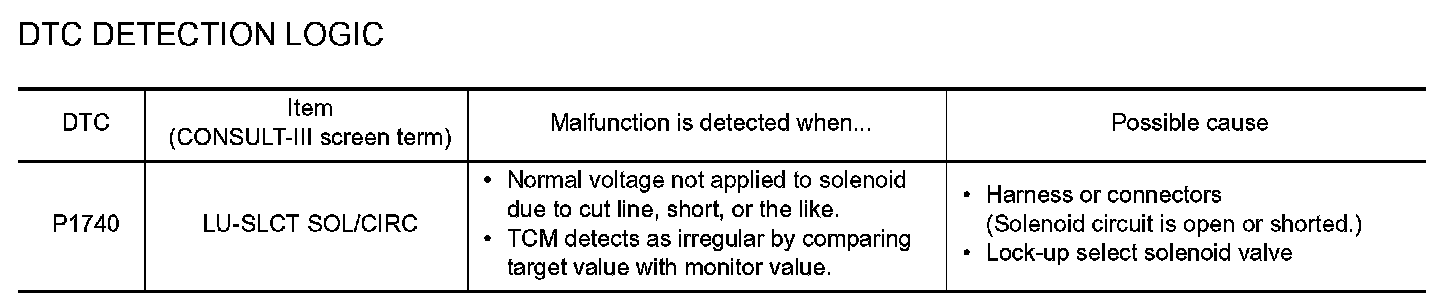

DTC Logic
P1740:
DTC Confirmation Procedure
CAUTION: Always drive vehicle at a safe speed.
NOTE: If "DTC CONFIRMATION PROCEDURE" has been previously performed, always turn ignition switch OFF. Then wait at least 10 seconds before performing the next test.
1.CHECK DTC DETECTION
With CONSULT-III
1. Turn ignition switch ON.
2. Select "DATA MONITOR".
3. Start engine and maintain the following conditions for at least 5 consecutive seconds.
RANGE: "D" or "N" position (At each time, wait for 5 seconds.)
With GST
Follow the procedure "With CONSULT-III".
Is "P1740 LU-SLCT SOL/CIRC" detected?
YES >> Go to "Diagnostic Procedure".
NO >> Check intermittent incident. Refer to GI-42, "Intermittent Incident". Service Information For Electrical Incident
Diagnostic Procedure
1.CHECK LOCK-UP SELECT SOLENOID VALVE CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect TCM harness connector.

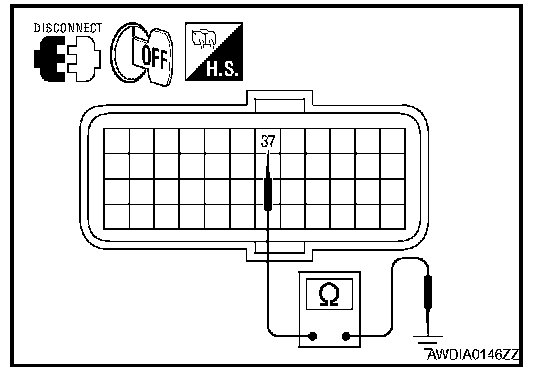

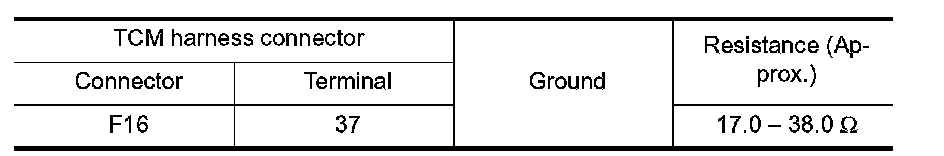

3. Check resistance between TCM harness connector F16 terminal 37 and ground.
Is the inspection result normal?
YES >> GO TO 5.
NO >> GO TO 2.
2.CHECK HARNESS BETWEEN TCM AND CVT UNIT (LOCK-UP SELECT SOLENOID VALVE) (PART 1)
1. Disconnect CVT unit harness connector.

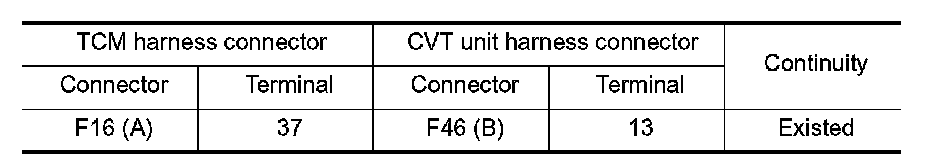

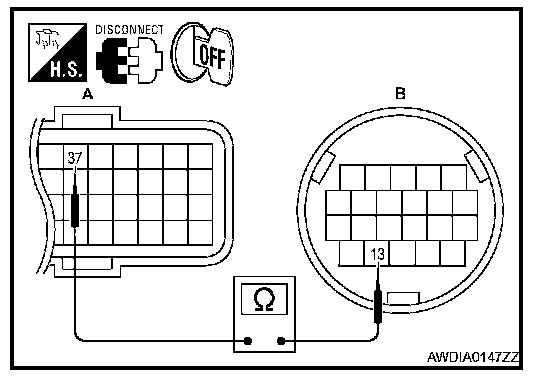

2. Check continuity between TCM harness connector F16 (A) terminal 37 and CVT unit harness connector F46 (B) terminal 13.
Is the inspection result normal?
YES >> GO TO 3.
NO >> Repair or replace damaged parts.
3.CHECK HARNESS BETWEEN TCM AND CVT UNIT (LOCK-UP SELECT SOLENOID VALVE) (PART 2)

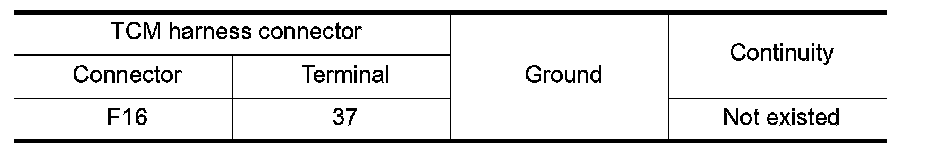

Check continuity between TCM harness connector F16 terminal 37 and ground.
Is the inspection result normal?
YES >> GO TO 4.
NO >> Repair or replace damaged parts.
4.CHECK LOCK-UP SELECT SOLENOID VALVE
Check lock-up select solenoid valve. Refer to "Component Inspection (Lock-up Select Solenoid Valve)".
Is the inspection result normal?
YES >> GO TO 5.
NO >> Replace transaxle assembly.
5.DETECT MALFUNCTIONING ITEMS
Check TCM connector pin terminals for damage or loose connection with harness connector.
Is the inspection result normal?
YES >> Replace TCM.
NO >> Repair or replace damaged parts.
Component Inspection (Lock-up Select Solenoid Valve)
1.CHECK LOCK-UP SELECT SOLENOID VALVE

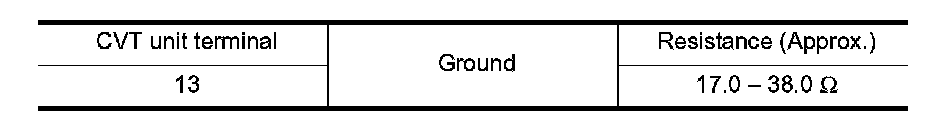

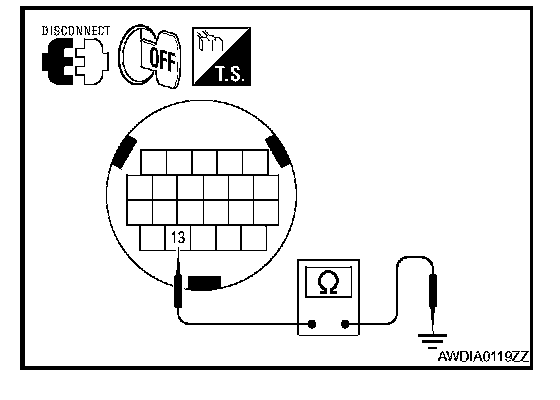

Check resistance between CVT unit terminal 13 and ground.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Replace transaxle assembly.
