Rear LH

REAR LH

REAR LH : Description
Locks/unlocks the door with the signal from BCM.

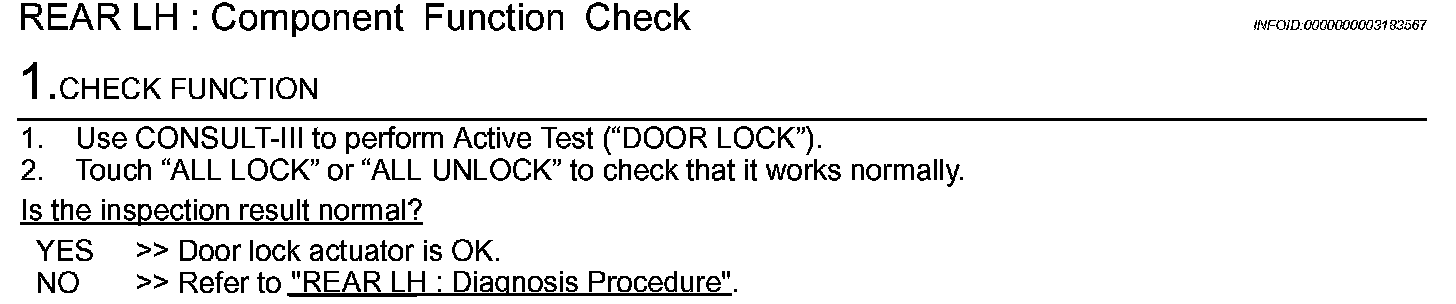

REAR LH : Component Function Check

Step 1:

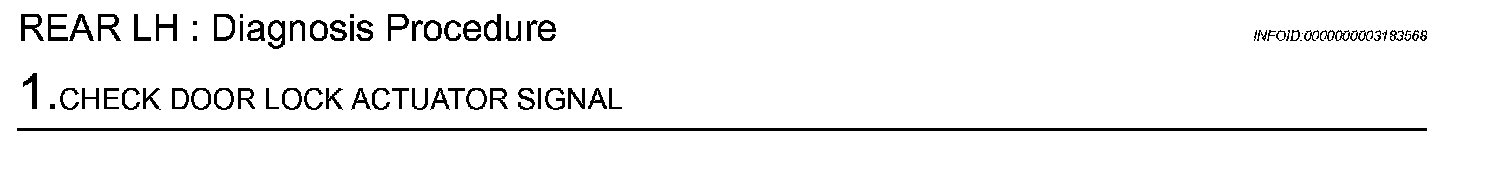

REAR LH : Diagnosis Procedure

Step 1:

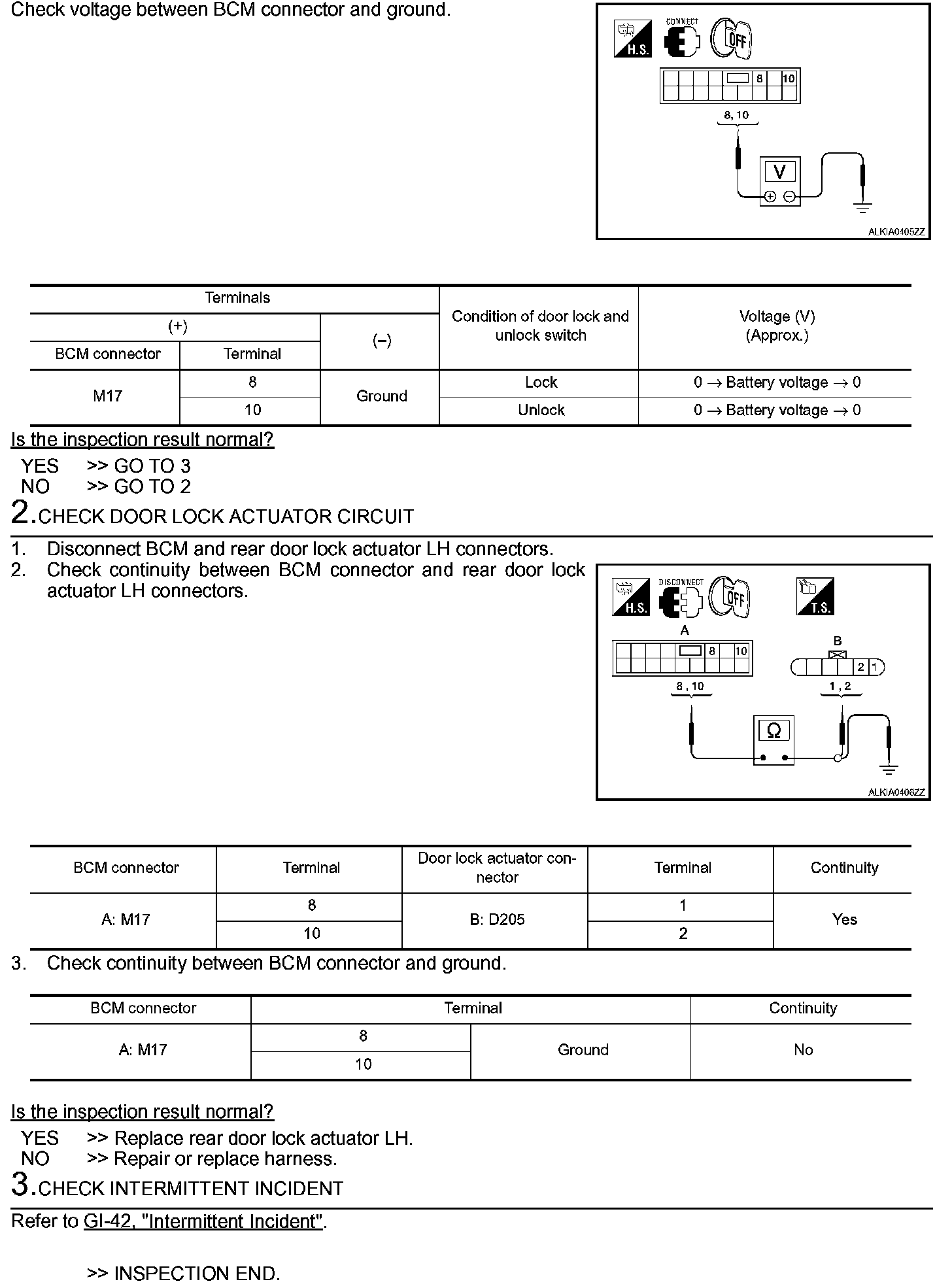

Step 1 (Continued)-3:
