Manual Air Conditioning

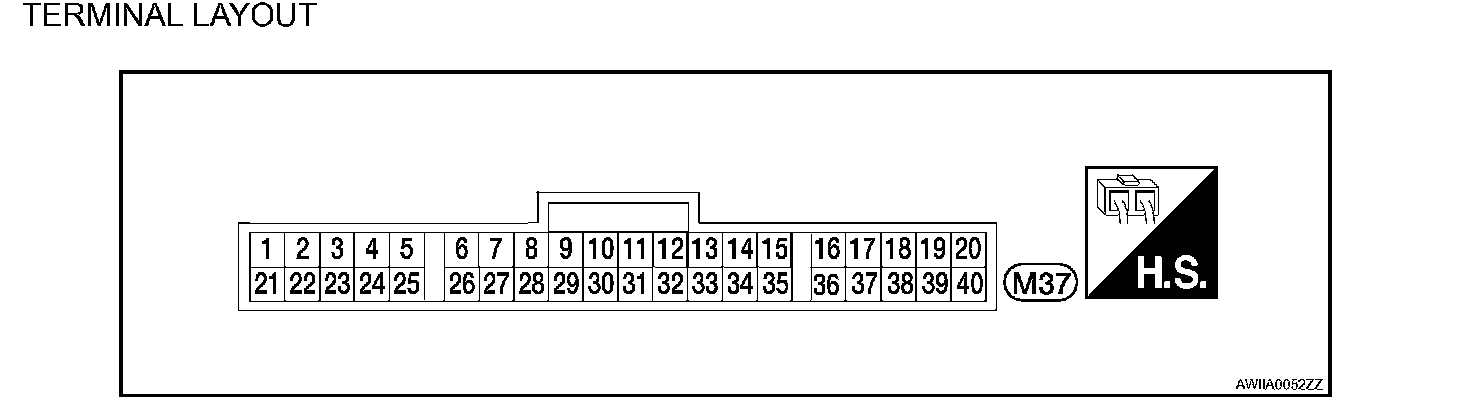

TERMINAL LAYOUT

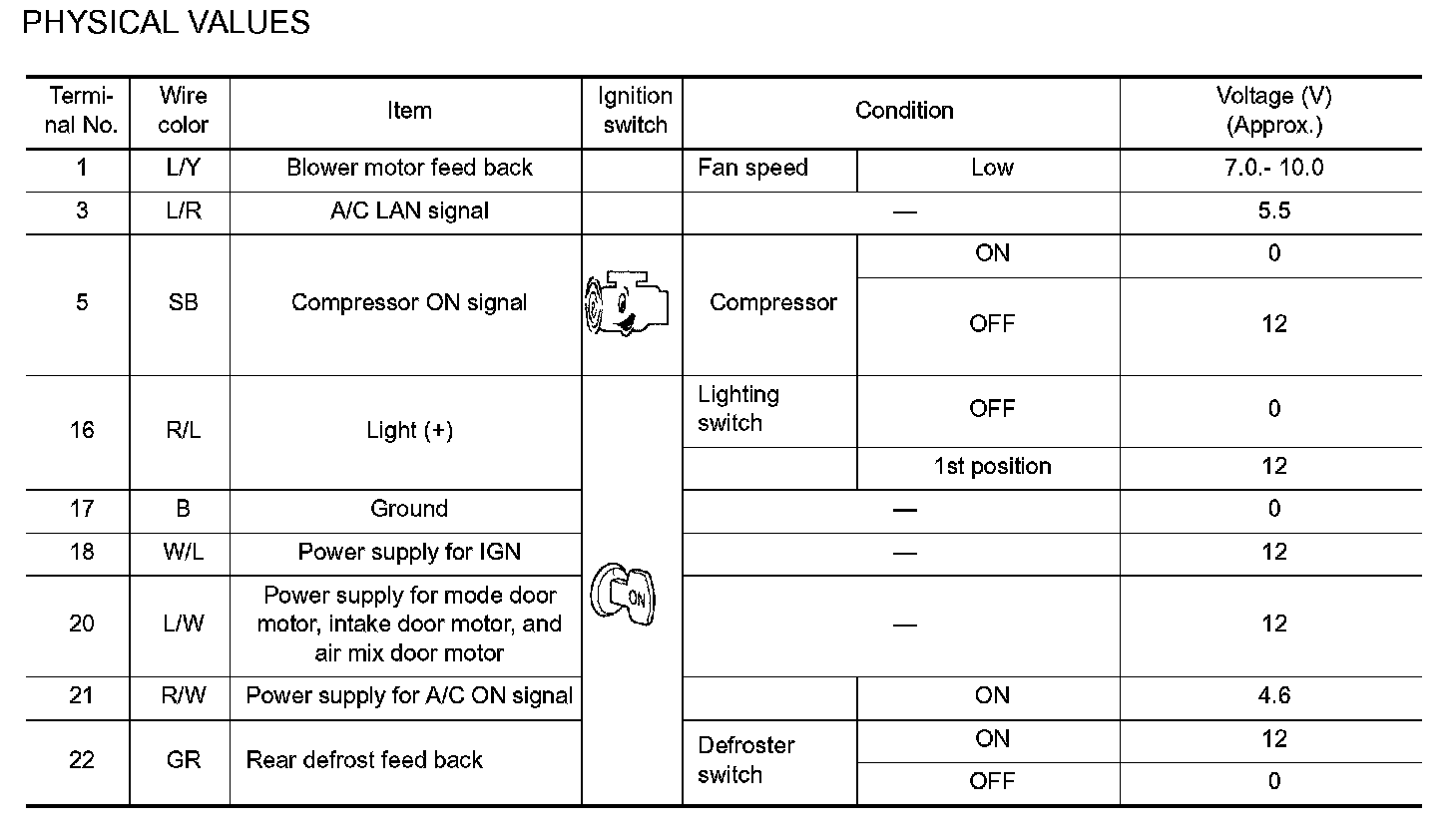

PHYSICAL VALUES

Terminals And Reference Values (Part 1):

Terminals And Reference Values (Part 2):
