Tightening Torque and Sequence

Rod Bearing Cap





Check the connecting rod cap bolts before reusing, then install in their original position in the connecting rod. The bolts should screw in smoothly by hand.

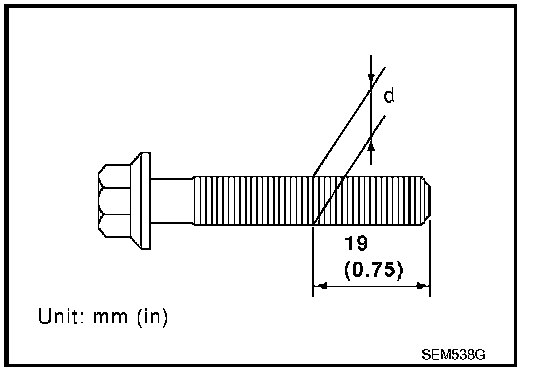

Measure the outer diameter of the connecting rod cap bolt as shown.
Outer diameter "d" of the connecting rod bolt
Standard 7.90 - 8.00 mm (0.3110 - 0.3150 in)
Limit 7.75 mm (0.3051 in)

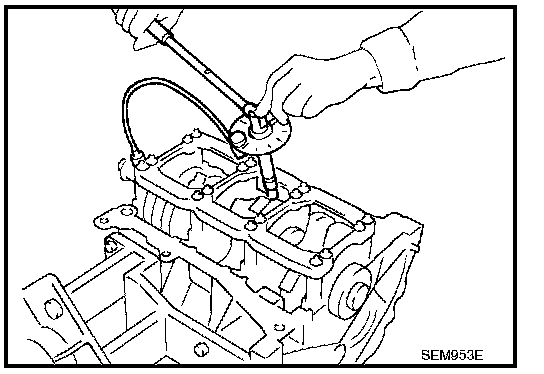

Tighten the connecting rod nuts in two stages using Tool:





Stage 1 19 - 21 Nm (1.9 - 2.1 kg-m, 14 - 15 ft-lb)
Stage 2 90° - 95° degrees clockwise

CAUTION: Always use either an angle wrench or protractor. Avoid tightening based on visual check alone.

Tool number KV10112100 (BT-8653-A)
Apply engine oil to the threads and seats of the connecting rod bolts and nuts.
After tightening the nuts, make sure that the crankshaft rotates smoothly.
