System Specifications

EM-159 Component:

Timing Chain Tensioner

Crankshaft Pulley

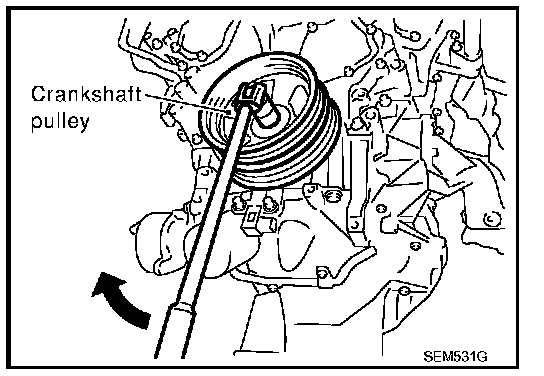

Install crankshaft pulley and tighten the bolt in two steps.
Lubricate thread and seat surface of the bolt with new engine oil.
Apply a paint mark for the second step of angle tightening.
Step 1 44 Nm (4.5 kg-m, 32 ft-lb)
Step 2 84° - 90° degrees clockwise
Tool Number KV10112100 (BT-8653-A)
Rotate crankshaft pulley in normal direction (clockwise when viewed from front) to confirm it turns smoothly.

Timing Cover
Front Timing Chain Case

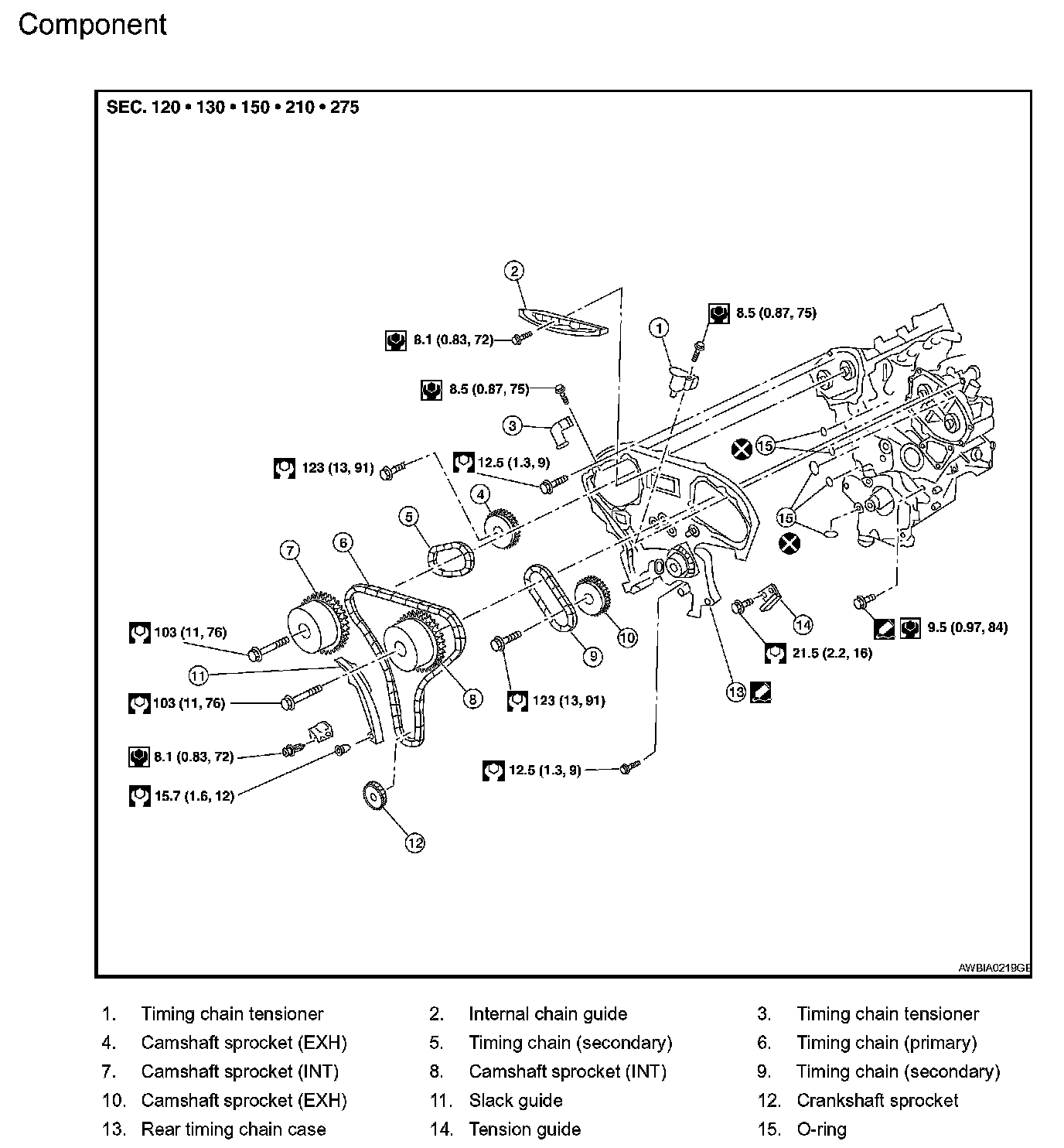

EM-152 Exploded View:

Bolt position Bolt diameter
1, 2 8 mm (0.31 in)
3 - 22 6 mm (0.24 in)
Tighten the front timing chain case bolts in the order as shown.
Retighten the front timing chain case bolts in the order as shown.
Bolt position Tightening specification
1, 2 28.5 Nm (2.9 kg-m, 21 ft-lb)
3 - 22 12.8 Nm (1.3 kg-m, 9 ft-lb)

Rear Timing Chain Case

EM-159 Component:

Tighten the bolts in the numerical order as shown. There are two bolt lengths used. Follow the chart below for proper bolt length specifications.








After all bolts are initially tightened, retighten them to the specification in the numerical order as shown.
Rear timing chain case bolts 12 - 13 Nm (1.2 - 1.4 kg-m, 9 - 10 ft-lb)
