Timing Cover

Timing Cover
Front Timing Chain Case

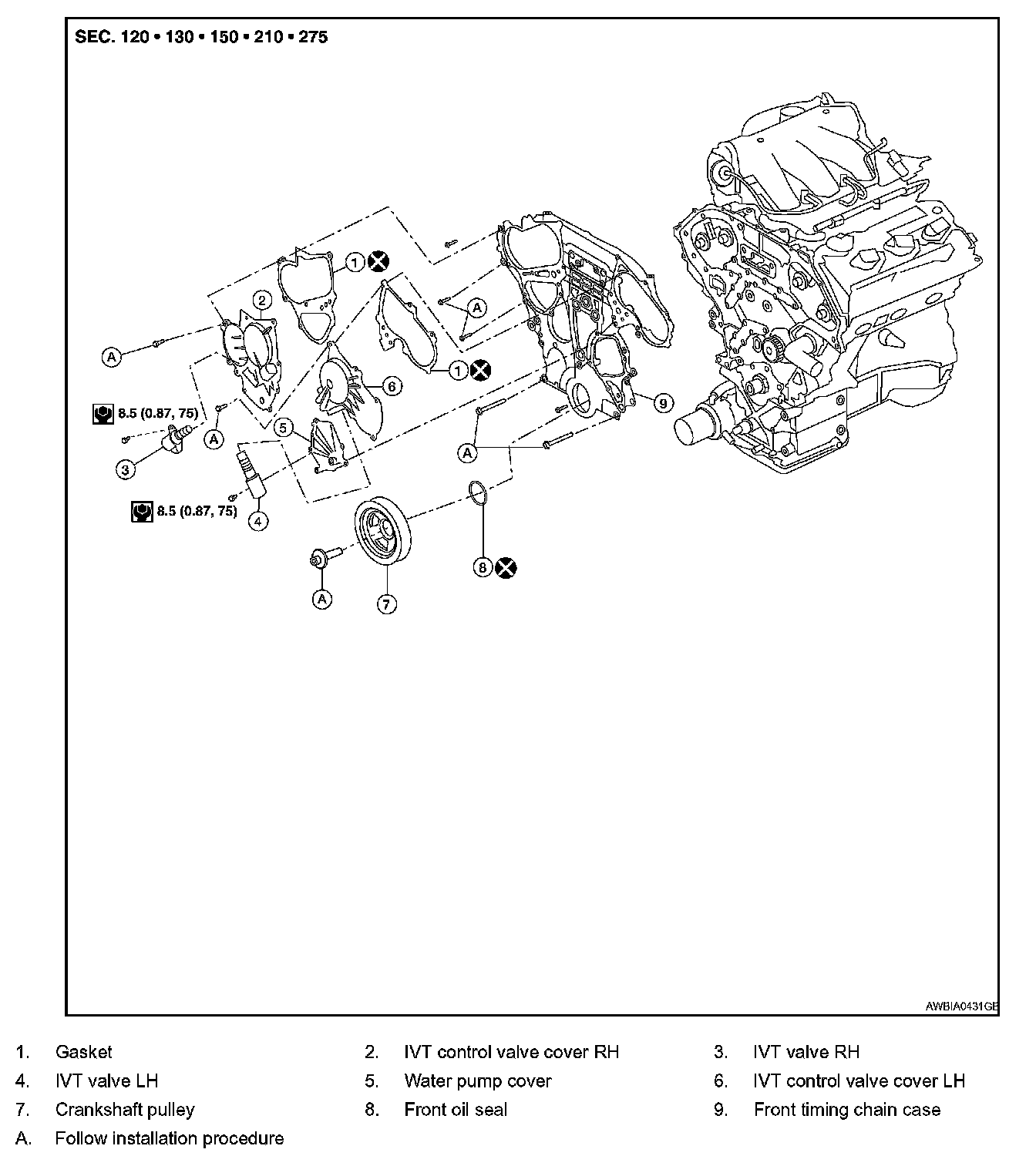

EM-152 Exploded View:

Bolt position Bolt diameter
1, 2 8 mm (0.31 in)
3 - 22 6 mm (0.24 in)
Tighten the front timing chain case bolts in the order as shown.
Retighten the front timing chain case bolts in the order as shown.
Bolt position Tightening specification
1, 2 28.5 Nm (2.9 kg-m, 21 ft-lb)
3 - 22 12.8 Nm (1.3 kg-m, 9 ft-lb)

Rear Timing Chain Case

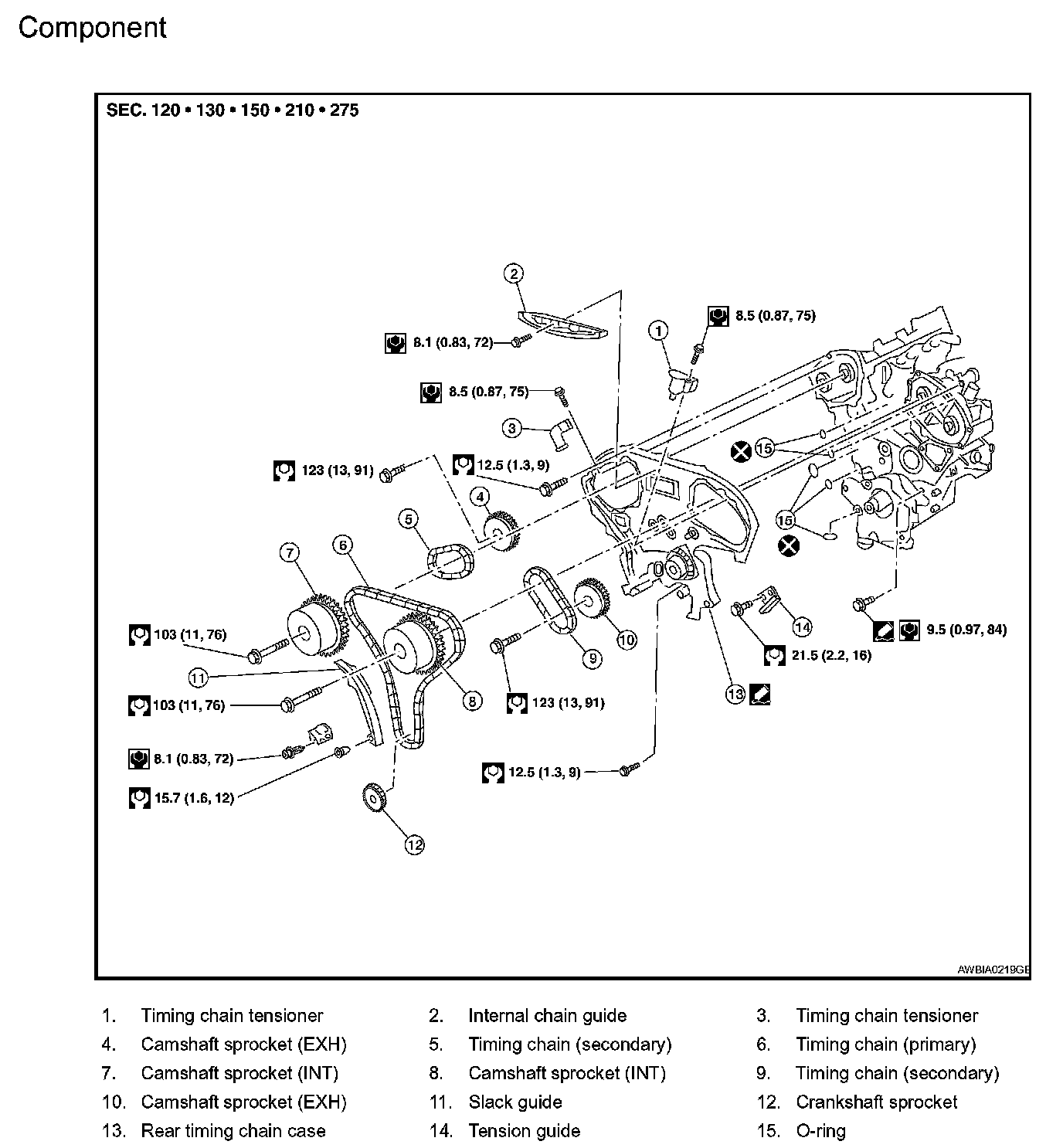

EM-159 Component:

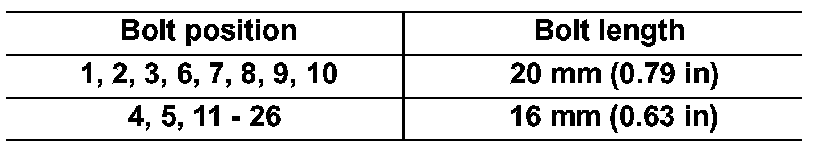

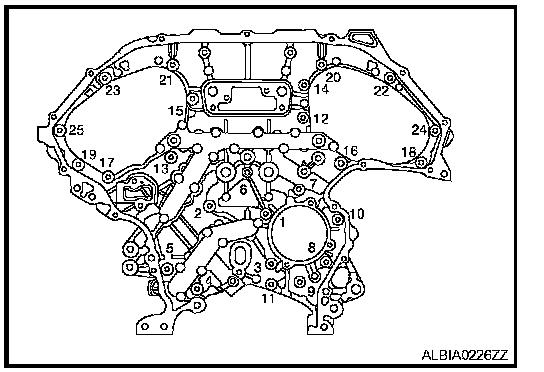

Tighten the bolts in the numerical order as shown. There are two bolt lengths used. Follow the chart below for proper bolt length specifications.








After all bolts are initially tightened, retighten them to the specification in the numerical order as shown.
Rear timing chain case bolts 12 - 13 Nm (1.2 - 1.4 kg-m, 9 - 10 ft-lb)
